Trendnet 5-Port Gigabit PoE+ Switch

$110.56 $138.41

SKU: TPE_TG50g
MODEL:  5-Port Gigabit PoE+ Switch
Product Description The 5-Port Gigabit PoE+ Switch, model TPE-TG50g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 31 Watt PoE budget. Plug and Play this sturdy...
Quantity
Add to Wishlist

Product Description

The 5-Port Gigabit PoE+ Switch, model TPE-TG50g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 31 Watt PoE budget. Plug and Play this sturdy metal switch for reliable high speed PoE networking.



Product Details



PoE+

Supplies up to 30 Watts of PoE power per port with a 31 Watt PoE budget

Ports

4 x Gigabit PoE+ ports and 1 x Gigabit port

Switching Capacity

10 Gbps switching capacity



Jombo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB) for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 70%*

Housing

Rugged metal enclosure

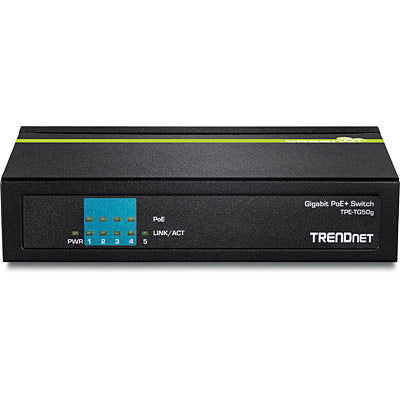

LED Indicators

LED indicators convey port status

 4 x Gigabit PoE+ ports and 1 x Gigabit port

31 Watt PoE budget

10 Gbps switching capacity

Sturdy metal switch

Plug and Play installation

Use with TRENDnet's PoE Splitter to network and power non-PoE devices



Product Specifications

StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3af (15.4 Watts/port)IEEE 802.3at (30 Watts/port)IEEE 802.3az

Device Interface4 x Gigabit PoE/PoE+ ports1 x Gigabit portLED indicators

Data Transfer RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)Gigabit: 2000 Mbps (full duplex)

PerformanceData RAM Buffer: 96 KBSwitch Fabric: 10 GbpsMAC Address Table: 1 K entriesForwarding rate: 7.44 Mpps (64-byte packet size)Jumbo Frame: 9 K

Special FeaturesGREENnet energy saving technologyPowerInput: 110-240 V AC, 50/60 Hz, 0.75 AOutput: 48 V DC, 0.75 A

Consumption: 36 Watts (Max.)PoEPoE budget: 31 WattsPin 1,2 for power+ and pin 3,6 for power- (mode A)

Operating Temperature0 – 40 °C (32 - 104 °F)Operating

HumidityMax. 90% non-condensing

Dimensions141 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)

Weight370 g (13 oz.)

CertificationsCEFCC



3 years Limited warranty
