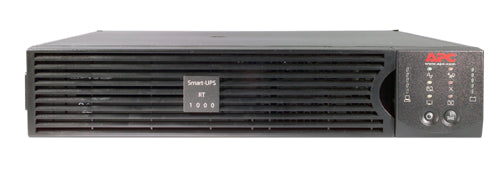

APC Smart-UPS RT 1000VA RM 230V

$1,162.98 $1,266.10

SKU: SURT1000RMXLI/1015503/RBC31
MODEL: APC Smart-UPS RT 1000VA RM 230V
Product Description: High density, double-conversion on-line power protection with scalable runtimeIncludes : CD with software , Smart UPS signalling RS-232 cable , User ManualSmart-UPS On-LineFeatures & Benefits Product Details: AdaptabilityFlash upgradeable firmwareInstall maintenance releases of firmware remotely using FTP.Plug-and-Play external batteriesEnsures clean, uninterrupted power to the loads when adding extra...
Quantity
Add to Wishlist

Product Description:

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Smart UPS signalling RS-232 cable , User Manual

Smart-UPS On-LineFeatures & Benefits

Product Details:

Adaptability

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.


Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Availability

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime

Allows additional run time to be quickly added as needed.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

SmartSlot

Customize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable

Provides temporary battery power when the utility power is out.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery

.Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Marketing Features

Save time with easy and convenient remote accessibility

.Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.














Product Specifications:

Output power capacity 700Watts / 1.0 kVA

Max Configurable Power (Watts) 700Watts / 1.0 kVA

Nominal Output Voltage 230V

Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion Less than 3%

Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1

Other Output Voltages 220, 240

Load Crest Factor 3 : 1

Topology Double Conversion Online

Waveform type Sine wave

Output Connections

(6) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Bypass Built-in Bypass

Input

Nominal Input Voltage 230V

Input frequency 50/60 Hz +/- 5 Hz (auto sensing)

Input Connections IEC-320 C14

Input voltage range for main operations 160 - 280V

Input voltage adjustable range for mains operation 100 - 280V

Number of Power Cords 1

Other Input Voltages 220, 240


Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules 1

Typical recharge time 3hour(s)

Replacement Battery

RBC31 Expected Battery Life (years) 3 - 5

RBC Quantity 1

Extendable Run Time 1

Extended Run Options

APC-Smart-UPS-RT-1000VA-230V

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s) DB-9 RS-232 , SmartSlot

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO) Optional

Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

Surge energy rating 420Joules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 85mm , 8.5cm

Maximum Width 432mm , 43.2cm

Maximum Depth 483mm , 48.3cm

Rack Height 2U

Net Weight 23.0kg

Shipping weight 27.8kg

Shipping Height 286mm , 28.6cm

Shipping Width 630mm , 63.0cm

Shipping Depth 594mm , 59.4cm

Color Black

Master Carton Units 1.0

Units per Pallet 4.0

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95%

non-condensing % Operating Elevation 0-3000meters

Storage Temperature -20 - 50 °C

Storage Relative Humidity 0 - 95%

non-condensing % Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 50.0dBA

Online thermal dissipation 324.0BTU/hr

Protection Class IP 20

Conformance

Approvals

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE

Standard warranty

2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
