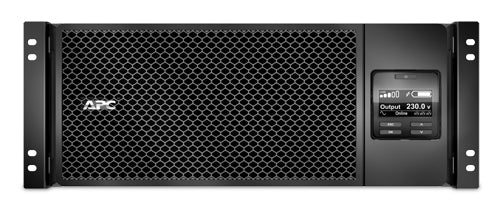

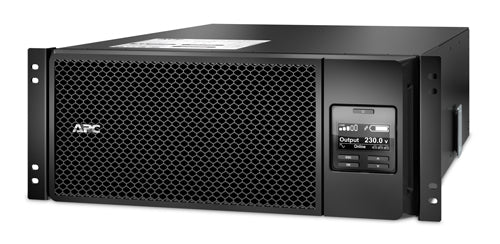

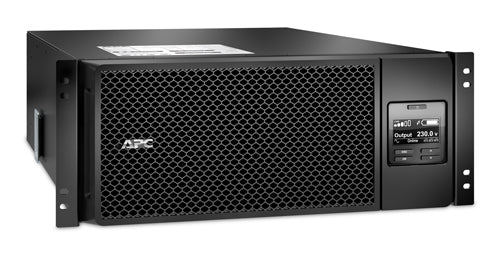

APC Smart-UPS SRT 6000VA RM 230V

$4,702.44 $5,120.96

SKU: SRT6KRMXLI/2690206/APCRBC140
MODEL: Smart-UPS SRT 6000VA RM 230V
Product Description: 10/100 BaseT ConnectionConnect the device to a network using a 10 or 100 BaseT connectionBattery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protectionGreen modePatent-pending operating mode...
Quantity
Add to Wishlist

Product Description:

10/100 BaseT Connection

Connect the device to a network using a 10 or 100 BaseT connection

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.


Product Details:

Smart-UPS On-Line Features & Benefits

Marketing Features

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Save time with easy and convenient remote accessibility.

Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Protection

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Cold-start capable

Provides temporary battery power when the utility power is out.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.


Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions


Adaptability

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.


Manageability

Serial connectivity

Provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.SmartSlotCustomize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Network manageable

Provides remote power management of the UPS over the network.


Availability

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Scalable runtime

Allows additional run time to be quickly added as needed.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

















Product Specifications:

Output power capacity 6.0 KWatts / 6.0 kVA

Max Configurable Power (Watts) 6.0 KWatts / 6.0 kVA

Nominal Output Voltage 230V

Output Voltage Distortion Less than 2%

Output Frequency (sync to mains) 50/60Hz +/- 3 Hz

Other Output Voltages 220, 240

Load Crest Factor 3 : 1

Topology Double Conversion Online

Waveform type Sine wave

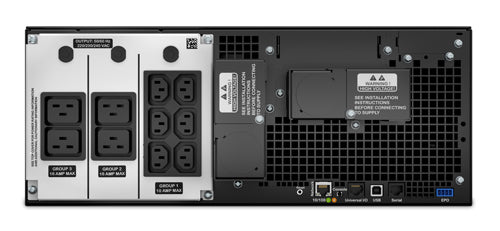

Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Bypass Internal Bypass (Automatic and Manual)


Input

Nominal Input Voltage 230V

Input frequency 40 - 70 Hz (auto sensing)

Input Connections Hard Wire 3 wire (1PH+N+G)

Input voltage range for main operations 160 - 275V

Input voltage adjustable range for mains operation 100 - 275 (half load)V

Other Input Voltages 220, 240


Batteries & Runtime

Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 1.5hour(s)

Replacement Battery APCRBC140

Expected Battery Life (years) 3 - 5

RBC Quantity 1

Extendable Run Time 1

Extended Run Options

  APC-Smart-UPS-SRT-6000VA-RM-230V

Runtime

View  Runtime Graph View

 Runtime Chart

Efficiency

View Efficiency Graph


Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity 1


Surge Protection and Filtering

Surge energy rating 480Joules


Physical

Maximum Height 174mm , 17.4cm

Maximum Width 432mm , 43.2cm

Maximum Depth 719mm , 71.94cm

Rack Height 4U

Net Weight 60.0kg

Shipping weight 67.0kg

Shipping Height 370mm , 37.0cm

Shipping Width 610mm , 61.0cm

Shipping Depth 960mm , 96.0cm

Color Black

Units per Pallet 6.0


Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95% non-condensing %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95% non-condensing %

Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 55.0dBA

Online thermal dissipation 1300.0BTU/hr

Protection Class IP 20


Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V1.0 (EU), IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery


Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs
