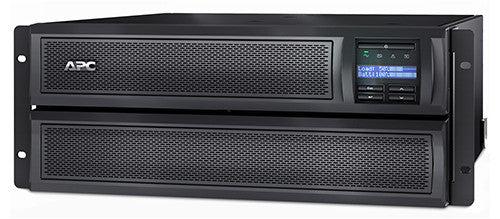

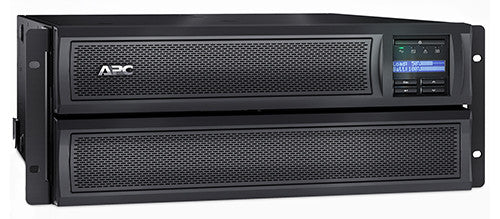

APC Smart UPS X 3000VA Rack/Tower LCD 200-240V with network card

$2,702.36 $2,746.35

SKU: SMX3000RMHV2UNC
MODEL: Smart UPS X 3000VA Rack/Tower LCD 200-240V with network card
Product Description Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling. APC Smart-UPS X 3000 Rack/Tower LCD recognizes...
Quantity
Add to Wishlist

Product Description

Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

APC Smart-UPS X 3000 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime. Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Product Details

Adaptability
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Marketing Features
Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Power chute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Safety

Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability

Network manageable Provides remote power management of the UPS over the network.Disconnected battery notification Warns when a battery is not available to provide backup power.USB connectivity Provides management of the UPS via a USB port (not available on all models).Serial connectivity Provides management of the UPS via a serial port.LED status indicators Quickly understand unit and power status with visual indicators.Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Serviceability

Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Resettable circuit breakers Enables a quick recovery from overload events.

Availability

Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.Disconnected battery notification Warns when a battery is not available to provide backup power.Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

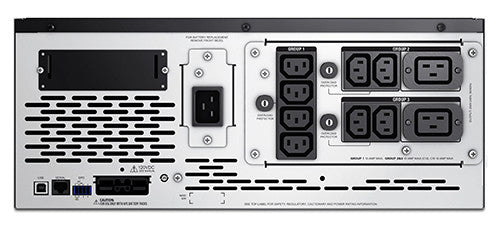

Output power capacity 2.7 KWatts / 3.0 kVAMax Configurable Power (Watts) 2.7 KWatts / 3.0 kVANominal Output Voltage 230VOutput Voltage Distortion Less than 5%Output Frequency (sync to mains) 50/60Hz +/- 3 HzOther Output Voltages 208, 220, 240Load Crest Factor 3 : 1Topology Line InteractiveWaveform type Sine waveOutput Connections (2) IEC 320 C19 (Battery Backup) (2) IEC Jumpers (Battery Backup) (8) IEC 320 C13 (Battery Backup) Transfer Time 2-4 msTransfer Time 6ms typical : 10ms maximum Input Nominal Input Voltage 208V , 230VInput frequency 50/60 Hz +/- 3 Hz (auto sensing)Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363ACord Length 1.83metersInput voltage range for main operations 140 - 280VNumber of Power Cords 1Other Input Voltages 220, 240Transfer Time 2-4 ms Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproofTypical recharge time 3hour(s)Replacement BatteryAPCRBC143 Expected Battery Life (years) 3 - 5RBC Quantity 1Extendable Run Time 1Battery Volt-Amp-Hour Capacity 738Extended Run OptionsAPC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V RuntimeView Runtime Graph View Runtime Chart EfficiencyView Efficiency Graph Communications & Management Interface Port(s) SmartSlotControl panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control consoleAudible Alarm Alarm when on battery : distinctive low battery alarm : configurable delaysEmergency Power Off (EPO) YesAvailable SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 645JoulesData Line Protection --Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 432mm , 43.2cmMaximum Width 178mm , 17.8cmMaximum Depth 483mm , 48.3cmRack Height 4UNet Weight 38.64kgShipping weight 47.73kgShipping Height 330mm , 33.0cmShipping Width 586mm , 58.6cmShipping Depth 633mm , 63.3cmColor Black# of Layers per Pallet 4.0# of Units per Layer per Pallet 2.0Pallet Weight 855.12lbs.Units per Pallet 6.0 Environmental Operating Environment 0 - 40 °C Operating Relative Humidity 0 - 95 % Operating Elevation 0-3000metersStorage Temperature -15 - 45 °C Storage Relative Humidity 0 - 95 % Storage Elevation 0-15000metersAudible noise at 1 meter from surface of unit 55.0dBAOnline thermal dissipation 184.0BTU/hr Conformance Approvals C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, VDESustainable Offer Status RoHS CompliantREACH REACH: Contains No SVHCs
3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended
