Fujitsu fi-65F
Product Description
Easy, one button touch scanning
One-second scanning at 300 dpi
True, 600 dpi optical resolution
Comes with PaperStream IP (TWAIN/ISIS), PaperStream Capture and PaperStream Capture Pro is available as an option.
USB power option for portabilit.
Product Details

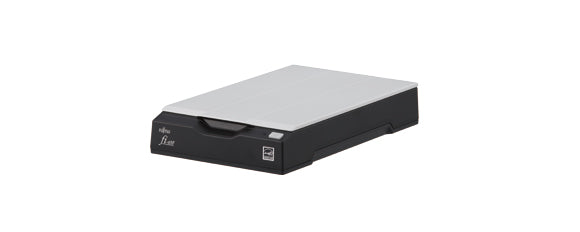

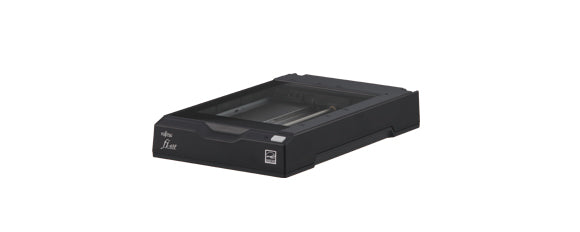

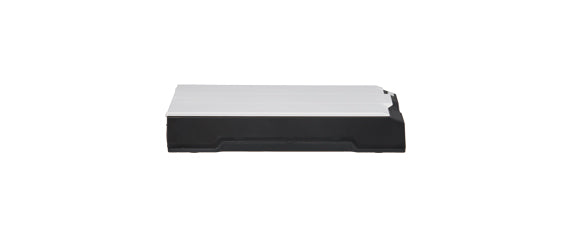

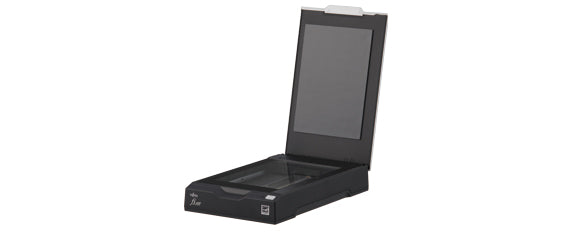

The right solution for small-document scanning
The compact, lightweight fi-65F high-speed scanner is ideal for front office, reception, patient intake, and retail environments. It quickly scans all major types of identification and small cards, including driver’s licenses, passports, military IDs, insurance cards, credit cards, photos, and small survey forms.
Fast, reliable scanning performance for better productivity
High-speed USB 2.0 connectivity combines outstanding performance and easy installation. PaperStream IP Cleanup drivers (TWAIN and ISIS®) and PaperStream Capture scanning software are included to simplify integration and boost productivity right from the start.
No time, no cover, no problem
The fi-65F scanner increases user productivity with fast, one-second scanning at 300 dpi and coverless scanning. Coverless scanning eliminates the repetitive task of opening and closing the cover before and after each scan while still auto-deskewing, auto-cropping, and auto-rotating the document. The scan button on the front of the scanner increases the speed of capturing multiple documents.
Capture the details you need in just one second
The fi-65F scanner delivers clean, crisp scans up to 105 mm x 148 mm (5.83 in. x 4.13 in.) -- in color, grayscale, and monochrome with true, 600-dpi optical resolution. However, when time is critical, users can scan documents at 300 dpi in monochrome or 8-bit grayscale in just one second. And 24-bit color scans at 200 dpi take just 1.7 seconds.
PaperStream IP (32/64 Bit)
The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.
PaperStream Capture
PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make document separation easy, improving document organization.
PaperStream Capture Pro
A high-quality, front end scanning software, PaperStream Capture Pro enhances Fujitsu fi Series’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing. PaperStream Capture Pro offers cost-effective improvement tools such as PaperStream IP for optimized image capture. As a distributed capture model, this scanner software captures your data without added costs and resources. This solution benefits organizations and departments that require an efficient yet easy way to convert paper documents into a digital file for high level data indexing and extraction. Improve records management processes and drive down business expenses with PaperStream Capture Pro.
High-impact scanning, low environmental impact
In keeping with Fujitsu’s long-standing commitment to safeguarding the environment, the fi-65F is the latest business scanner to adhere to strictest ecological regulations throughout the entire manufacturing process. The design and manufacture of the fi-65F meet Energy Star’s energy consumption requirements and the European Union’s Reduction of Hazardous Substances and Volatile Organic Compounds regulations.
Product Specifications
Model |
fi-65F |
|||
Image Sensor Type |
Color Contact Image Sensor (CIS) |
|||
Resolution(1) |
50-600 dpi (adjustable by 1 dpi increments) |
|||
Halftone Patterns |
Dither and error diffusion |
|||
Grayscale |
8-bit / pixel (output) |
|||
Color |
24-bit / pixel (output) |
|||
Scanning speeds(2) |
||||
AC adapter |
Monochrome |
1.0 seconds (200/300 dpi) |
||
USB bus powered |
Monochrome |
2.0 seconds (200/300 dpi) |
||
Scanning Mode |
Simplex |
|||
Document Feeding Mode |
Flatbed |
|||
Document Size |
Flatbed Maximum |
A6 (105 mm x 148 mm or 5.83 in. x 4.13 in.) |
||
Interface |
High-speed USB 2.0 |
|||
Software Driver Support |
PaperStream IP (TWAIN and ISIS) |
|||
Background |
Black |
|||
Power requirements (auto-switching) |
100-200 VAC, 50/60 Hz |
|||
Power requirements |
Power cable connection |
Operating mode: 8 W or less |
||
Power requirements |
USB bus power Cable Connection |
Operating mode: 5 W or less |
||
Dimensions (HxWxD)(3) |
40 mm x 234 mm x 145 mm (1.6 in. x 9.2 in. x 5.7 in.) |
|||
Weight |
0.9 kg (1.98 lb.) |
|||
Inbox Contents |
AC cable, AC adapter, USB cable, USB bus-power cable, Setup DVD-ROM, Safety Precautions |
|||
Bundled Software |
PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, PaperStream Capture |
|||
OS Support |
Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit) |
|||
Options |
2D Barcode for PaperStream, PaperStream Capture Pro |
|||
Features |
Auto de-skew, auto cropping and removable document cover |
|||
- Requires Intel® Pentium® 4 1.8GHz or higher PC computer with 1GB memory or above and 5400rpm or higher hard disc drive.(Intel® Core (TM) i5 2.5GHz or higher PC computer with 4GB memory or more and 7200rpm or higher is recommended.) 10GC free hard disc space is recommended for installation.
- Actual scanning speeds are affected by data transmission and software processing times.
- Projecting items are not included in these dimensions.
