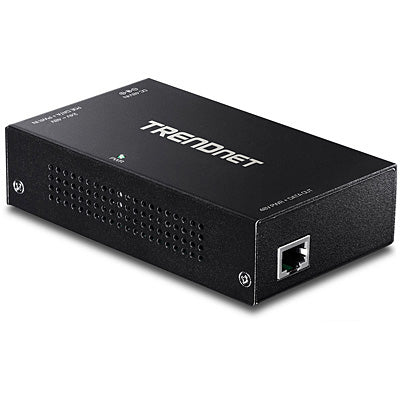

Trendnet Gigabit POE+ Repeater/Amplifier

$137.30 $172.10

SKU: TPE-E110
MODEL: Gigabit POE+ Repeater/Amplifier
Product Description TRENDnet’s Gigabit PoE+ Repeater/Amplifier, model TPE-E110, extends and amplifies a Gigabit PoE or PoE+ network connection to a remote location. It auto-detects a PoE (15.4 Watts) or PoE+ (30 Watts) signal and extends it an additional 100 meters for a total distance of up to 200 meters (656...
Quantity
Add to Wishlist

Product Description

TRENDnet’s Gigabit PoE+ Repeater/Amplifier, model TPE-E110, extends and amplifies a Gigabit PoE or PoE+ network connection to a remote location. It auto-detects a PoE (15.4 Watts) or PoE+ (30 Watts) signal and extends it an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE device. Daisy chain up to 7 units for a total PoE+ network extension of 800 m (2,600 ft.)*. A rugged metal enclosure and no need for an external power adapter facilitate remote installations.



Product Details

  • Extends 100 meters for a total distance of up to 200 meters (656 ft.)
  • Daisy chain up to 7 units for a total PoE+ network extension of 800 m (2,600 ft.) *
  • Plug and play installation
  • No external power required
  • Wall mountable
  • Rugged metal housing


Extension Distance
Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE device



PoE/PoE+
Auto detects a 15.4 Watt PoE (IEEE 802.3af class 1-4) or 30 Watt PoE+ (IEEE 802.3at) network connection



Gigabit Ports
Gigabit ports extend a high performance wired connection



Daisy Chain
Up to 7 units for a PoE+ (802.3at) network connection

Up to 4 units for a PoE (802.3af) network connection



Plug and Play
Plug and play PoE/PoE+ network cables



POE Powered
No external power required—saves installation time and cost



Mounting
Wall mounting points for remote installations


LED indicator
LED indicator confirms power



Housing
Rugged metal enclosure

Product Specifications

Standards
IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3afIEEE 802.3at

Device Interface
1 x Gigabit PoE/PoE+ in port1 x Gigabit PoE/PoE+ out port1 x Power port (optional, power adapter is not included)LED indicatorsInstallation mounting points

Data Transfer Rate Ethernet:
10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)Gigabit: 2000 Mbps (full duplex)


Performance
SRAM buffer: 96 KBMAC Address Table: 2 KMaximum packet length up to 1.5 KB

Special Features
Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.)Cascade up to 7 repeaters/amplifiers*Suports IGMP V1, V2 and IGMP snooping

Power
Powered by PoE/PoE+ DeviceConsumption: 2 Watts (max.)

Optional Power Adapter
(Model Number: 48VDC0750)Input: 100-240V 50/60Hz 0.75A Output: 48VDC, 0.75AConsumption: 36 Watts (max. with use of power adapter sold separately)Operating Temperature0 – 45 °C (32 - 113 °F)

Operating Humidity Max.
90% non-condensing

Dimensions
75 x 125 x 33 mm (3.0 x 4.9 x 1.3 in.)

Weight
306 g (10.8 oz.)

Certifications
CEFCC

3 years Limited warranty
