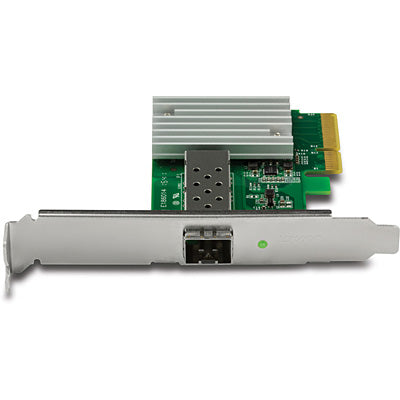

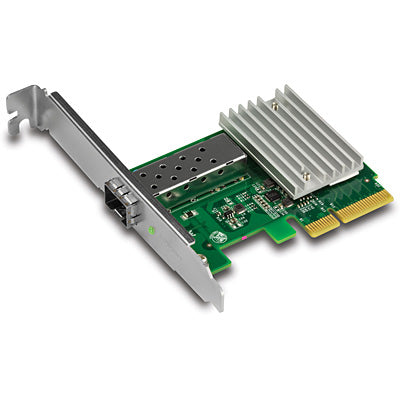

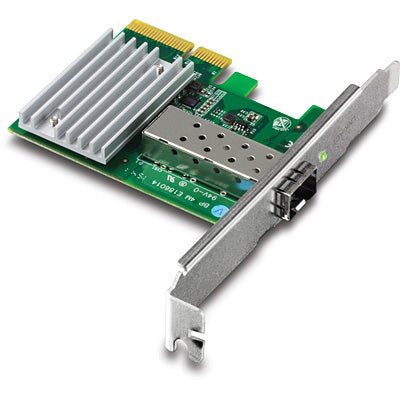

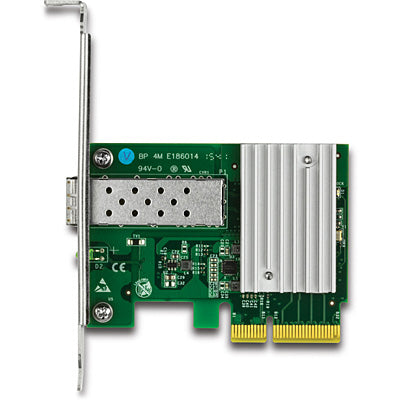

Trendnet 10 Gigabit PCIe SFP+ Network Adapter
Product Description :
TRENDnet’s 10 Gigabit PCIe SFP+ Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ slot. Advanced features include jumbo frame and VLAN tagging support. The included standard and low profile brackets are compatible with Windows® and Linux® desktop computer designs.
10G SFP+
Provides one SFP+ slot for high speed 10 Gigabit Ethernet connectivity.
Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance
Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems
Product Details :
10G SFP+
Provides one SFP+ slot for high speed 10 Gigabit Ethernet connectivity
PCI Express Converts a PCIe 2.0 x4 slot into a 10G SFP+ slot
Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance
VLAN Support
IEEE 802.1Q tagged-based VLAN support
Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems.
LED Indicator
LED indicator conveys status activity
Product Specifications
Standards
IEEE 802.3ae
IEEE 802.3ad
IEEE 802.1Q
Hardware Interface
PCIe 2.0 x4 interface
1 x 10Gbps SFP+ slot (SFP+ modules sold separately: TEG-10GBSR, TEG-10GBS10, TEG-10GBS40)
LED indicator
Standard and low profile brackets
Compatibility
Windows® 10, 8.1, 8, 7
Windows® Server 2012, 2012 R2, 2008, 2008 R2
Linux® 2.6.x, 3.x.x, 4.6.x or later
VMware® ESXi™ 5.x/6.x & Hyper-V®
Jumbo Frames
Up to 16 KB
Special Features
10G SFP+ for high speed network connectivity
Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables
Windows Server support
VMware® ESXi™ 5.x/6.x & Hyper-V® hypervisor support for virtualization
Additional Support
802.3ad LACP NIC teaming
802.1Q VLAN Tagging
Microsoft Scalable Networking
Receive-side scaling (RSS)
Message Signaled Interrupts (MSI)
IP, TCP, and UDP checksum offloading
Minimize overhead with reduced host bus traffic and CPU utilization
Power
Consumption: 4.12 W max.
Operating Temperature
0 - 50 °C (32 – 122 °F)
Operating Humidity
Max. 90% non-condensing
Certifications
CE
FCC
Dimensions
87 x 63 x 18 mm (3.4 x 2.5 x 0.7 in.)
Weight
58 g (2 oz.)
3 years warranty
