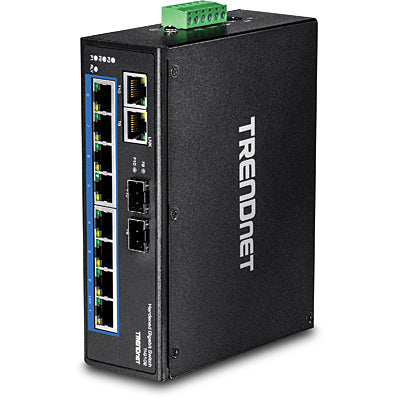

Trendnet 10-Port Hardened Industrial Gigabit DIN-Rail Switch

$426.84 $611.15

SKU: TI-G102
MODEL: 10-Port Hardened Industrial Gigabit DIN-Rail Switch
Product Description TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an...
Quantity
Add to Wishlist

Product Description

TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Product Details

Gigabit Speeds


Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Fault Tolerance


Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design


Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

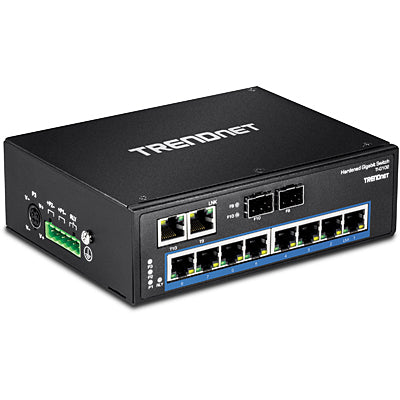

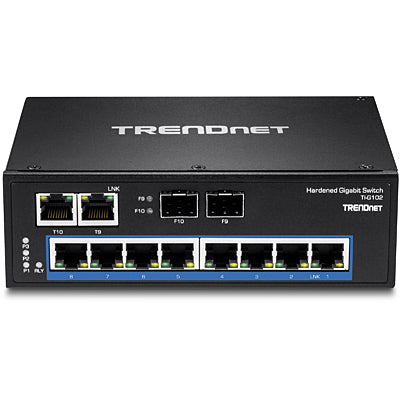

Network Ports


8 Gigabit ports plus 2 Gigabit RJ-45 / SFP shared ports

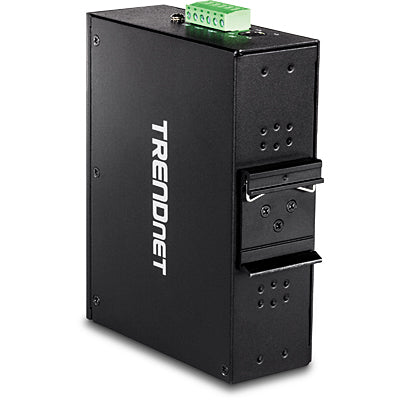

DIN-Rail / Wall Mounts

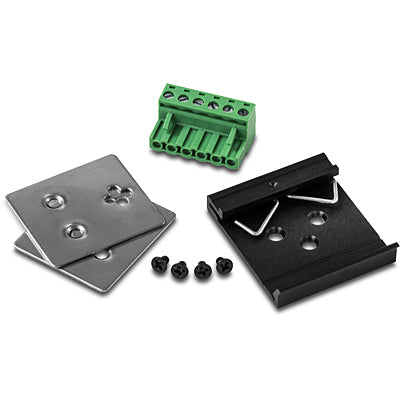

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity


20 Gbps switching capacity

Redundant Power


Dual redundant power inputs with overload current protection (power supply sold separately, models: TI-M6024 / 48VDC3000)

Alarm Relay


Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame


Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures


Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant


Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point


Grounding point protects equipment from external electrical surges

Specifications


Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x

Device Interface
8 x Gigabit ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)

Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 16 GbpsMAC Address Table: 16 K entries
Forwarding rate: 14.8 Mpps (64-byte packet size)

Special Features
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection

Power
Input: 12 - 56 V DC
Compatible power supply: TI-M6024 (sold separately)
Consumption: 5.76 W max

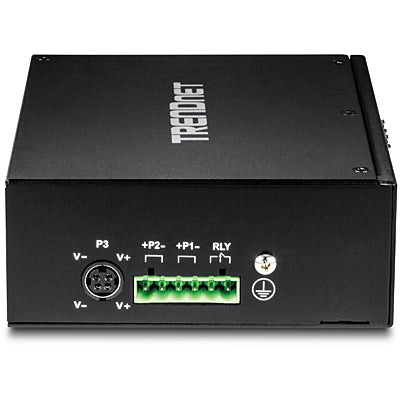

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm

Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected

MTBF
510,400 hours


Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
6 KV surge protection

Operating Temperature
- 40 to 75 °C (-40 to 167 °F)

Operating Humidity
Max. 95 % non-condensing

Dimensions
155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)

Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

3 Years Limited Warranty
