Trendnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch

$546.61 $782.85

SKU: TI-PG102
MODEL: 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
Product Description TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional...
Quantity
Add to Wishlist

Product Description

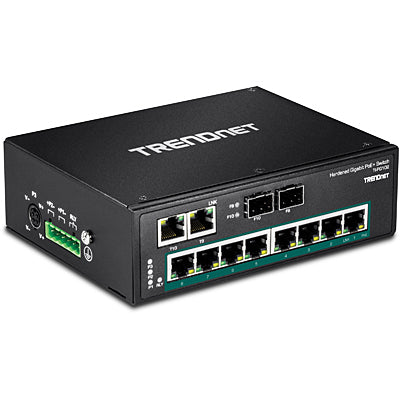

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Product Details

PoE Power


A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance


Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design


Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).

Full PoE+ Power Budget


Supplies up to 30 W of PoE / PoE+ power per port with a 240 W PoE power budget

Network Ports

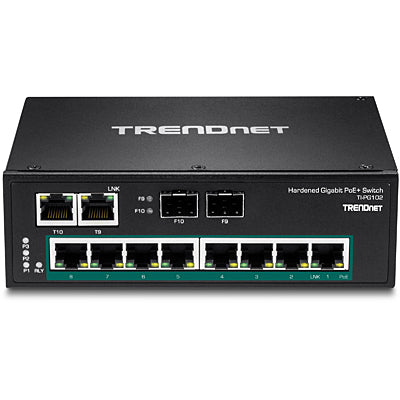

8 Gigabit PoE+ ports plus 2 Gigabit RJ-45 / SFP shared ports

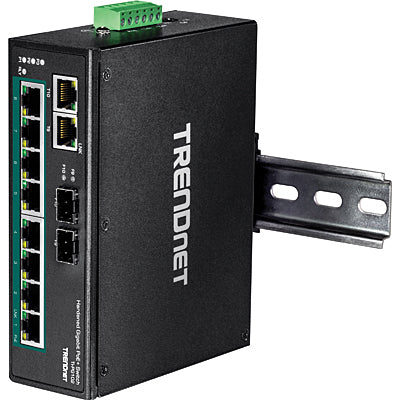

DIN-Rail / Wall Mounts

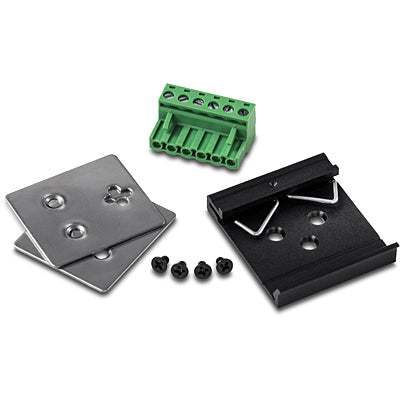

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity


20 Gbps switching capacity

Redundant Power


Dual redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 / 48VDC3000)

Alarm Relay


Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame


Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures


Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant


Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point


Grounding point protects equipment from external electrical surges

Specifications

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

Device Interface
8 x Gigabit PoE+ ports
2 x Gigabit Ethernet ports
2 x Shared SFP slots
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)

Performance
Data RAM Buffer: 2048 KB
Switching Fabric: 20 Gbps
MAC Address Table: 16 K entries
Forwarding rate: 14.8 Mpps (64-byte packet size)
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 6 KV protection

Power
Input: 48 - 56 V DC
Compatible power supply: TI-S24048 (sold separately)
Consumption: 5.67 W max. (without PD)

PoE
Per port up to 30 W
PoE budget: 240 Watts

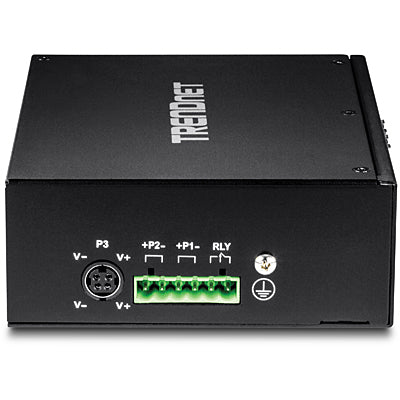

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24 / 14-22
Stranded wire (AWG): 12-24 / 14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm

Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
510,400 hours

Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
ESD 6 KV protection

Operating Temperature
- 40 to 75 °C (-40 to 167 °F)

Operating Humidity
Max. 95 % non-condensing

Dimensions
155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)

Certifications
CE
FCC
Shock (EN 60068-2-27)
Freefall (EN 60068-2-32)
Vibration (EN 60068-2-6)

3 Years Limited Warranty
