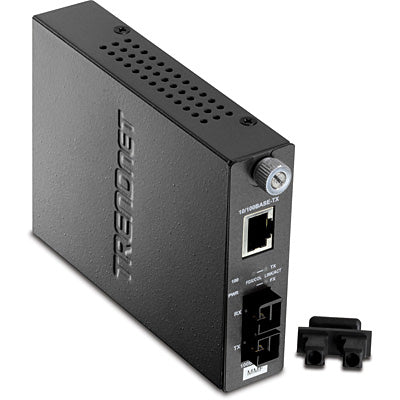

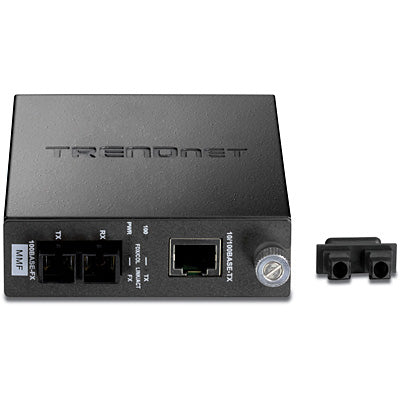

Trendnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter

$65.21 $91.68

SKU: TFC_110MSC
MODEL: 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter
Product Description The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type). Products Details Compliant...
Quantity
Add to Wishlist


Product Description

The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

Products Details

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Wall mountable
  • Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Product Specifications


HARDWARE
Standard
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX

Supported Frame Size
Standard Ethernet up to 1518bytes

Network Media
100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
100Base-FX: Multi-mode fiber optic cable 50/125 µm or 62.5/125 µm, up to 2km

Protocol
CSMA/CD

Ports
1 x 10/100Base-TX
1 x 100Base-FX (SC-type)

Dip Switch
FX: duplex mode (half/full)

Transfer Rate
100Mbps (half-duplex)
200Mbps (full-duplex)

Diagnostic LED
Per unit: Power
Per Port: link/activity, full-duplex/collision, speed (on fiber port)

Power Adapter
5V DC, 1A external power adapter

Power Consumption
1.8 Watts (max)

Dimensions
120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)

Weight
354g (12.5oz)

Temperature
Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -25° ~ 70° C (-13° ~ 158° F)

Humidity
Max. 90% (non-condensing)

Certification
FCC,CE

Media
MMF

Wavelength
1300nm

Pout (dBm)
-19 ~ +14

Sensitivity
-32 ~ 14

Power
13

Distance
2km
