Trendnet 2-Port DVI Audio KVM Switch Kit

$108.23 $135.10

SKU: TK-214i
MODEL: 2-Port DVI Audio KVM Switch Kit
Product Description The 2-Port DVI USB KVM Switch Kit with Audio, model TK-214i, allows you to control 2 PC and/or Mac computers with one set of console controls. Manage laptops or desktops that have DVI, USB, and audio ports at the touch of a button with one set of USB...
Quantity
Add to Wishlist

Product Description

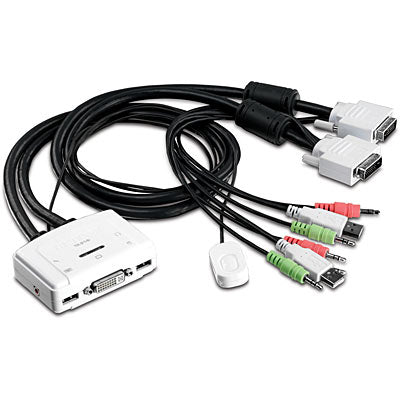

The 2-Port DVI USB KVM Switch Kit with Audio, model TK-214i, allows you to control 2 PC and/or Mac computers with one set of console controls. Manage laptops or desktops that have DVI, USB, and audio ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone, and speakers. No driver installation required, simply plug in the devices to control 2 computers. A convenient toggle switch with a 1.5 m (5 ft.) extension cable can be placed in the most ergonomic location on your workstation.


Product Details

View crystal clear Digital Video Interface (DVI) resolution at up to 1920 x 1200 pixels. Built in 0.9 m (3 ft.) combination cables include all the necessary USB, DVI, and audio connectors for each respective computer. This KVM switch does not need to be plugged into an outlet—it is powered by the connected computers. Download a Windows and Mac compatible utility to define Hot Keys, manage multiple audio ports, and create Auto Scan intervals.





Use one keyboard, monitor, and mouse to control two computers
Audio support for speakers and microphone

Console-side hardware
1 x DVI port
2 x USB 2.0 Type A port
1 x 3.5mm audio port
1 x 3.5mm microphone port
LED display for easy computer monitoring
Push button switch with a 1.45 m (4.8 ft.) extension cable

Computer-side hardware
2 sets of 80 cm (2.6 ft.) built-in combination cables with DVI, USB, audio, and microphone ports
Works with most standard USB mouse and keyboard designs
Support video quality of up to 1920 x 1200 resolution
Supports Windows, Linux, and Mac operating systems*
Hot-Plug feature: add computer or remove the connected computer for maintenance without powering down the KVM Switch
Keyboard status restored when switching between computers.
Install the included KVM switcher software in order to program Hot-Keys and Auto-Scan intervals
Plug and Play with no software download required
No power required, this device is powered by the computer’s USB port

Specifications

Controls
2 Computers

Cable
2 Sets of USB, DVI, audio, and microphone combination cables 80 cm (2.6 ft.)

Computer Connectors
2 x USB Type A (male)
2 x DVI-I (male)
2 x 3.5mm audio plug
2 x 3.5mm microphone plug

Console Connectors
1 x DVI port (female)
2 x USB type A port (female)
1 x 3.5mm audio port
1 x 3.5mm mic. port

Port Selection
Push button switch: Windows, Mac and Linux
Hot Keys Command: Windows, Linux
KVM Switcher Software: Windows and Mac 10.4 or higher

Supported OS
Windows 8, 7, Vista, XP, Server 2003, 2000, 98

Video Resolution
DVI-I 1920 x 1200

Power Type
USB Bus Powered

LED
Computer 1 or Computer 2 Status Indicator

Dimensions
89 x 64 x 25 mm (3.5 x 2.5 x 1.0 in.)

Temperature
Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -20°C ~ 60°C (-4°F ~140°F)

Humidity
Max. 90% (non-condensing)

Certifications
CE, FCC

2 Year Warranty
