Trendnet 32-Channel HD NVR + 4TB Hard Drive
Product Description
_1.jpg)

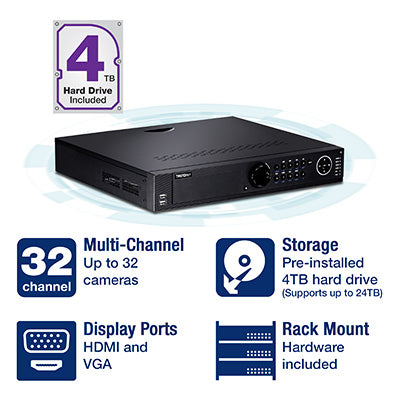

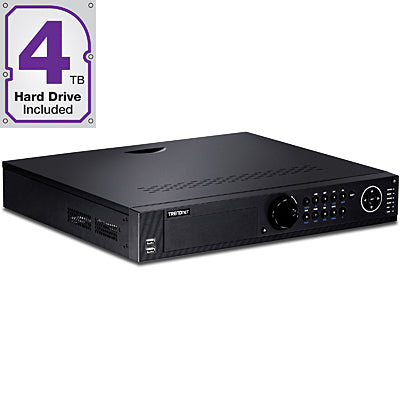

TRENDnet’s 32-channel HD NVR, model TV-NVR2432D4, offers a comprehensive rack mountable camera management solution. This NVR includes a preinstalled 4 TB hard drive and connects up to thirty two cameras*. Install up to 24 terabytes of storage (additional hard drives sold separately) to record four weeks of continuous video from eight HD cameras**. The TV-NVR2432D4 features advanced video playback and free iOS® / Android™ apps available.
Product Details
1080p HD NVR
This 1080p HD NVR includes a preinstalled 4 TB hard drive and supports a total storage capacity of up to 24 TB and manages up to thirty-two network cameras - cameras and display sold separately.
Easy Installation
The NVR auto-recognizes TRENDnet cameras* – simply connect compatible TRENDnet cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules and advanced playback options.
32-channel network video recorder
Manage up to 32 TRENDnet cameras*
Concurrent 1080p HD video recording for all channels
Preinstalled 4 TB HDD provides one week of continuous 1080p video recording***
Four 3.5” SATA II bays support up to a 24 TB of storage (6 TB max. per bay, additional HDDs sold separately)
Advanced video playback
Rack mountable
Supports ONVIF compliant network camera.
Product Specifications
Video Output
HDMI / VGA
Resolution:
Audio
Line-in with RCA connector (2.0Vp-p, 1kΩ)
Line-out with RCA connector
Recording
32-channel simultaneous recording up to 1080p 30 fps
2 SATA interface for HDD or SSD up to 6 TB storage each
Playback
Playback resolution: 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab

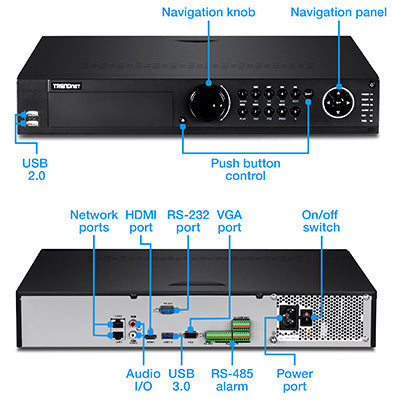

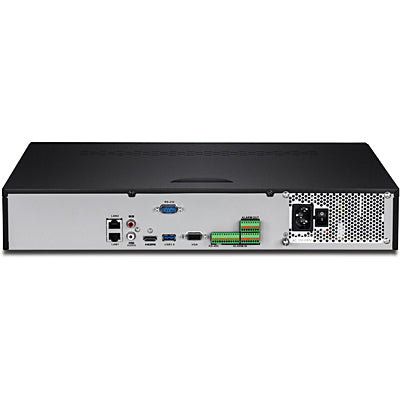

Device Interface
1 x Gigabit network port
1 x 4 TB HDD
1 x USB 2.0, 1 x USB 3.0
HDMI port
VGA port
Analog audio in / out port
Power port
LED indicators (Power, Storage, and Network)
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2
HTTP, UPnP, RTSP, RTP, RTCP
Power
Input: 100 – 240 V AC, 50/60 Hz, 1.7 A
Output: 12 V DC, 3.33 A
Consumption: 10 Watts max. (with HDD)
Dimensions
440 x 390 x 70 mm (17.3 x 15.4 x 2.8 in.)
Weight
5.3 kg (11.7 lb.)
Operating Temperature
-10 ~ 55 °C (14 ~ 131 °F)
Operating Humidity
Max. 90% non-condensing
Certifications
CE
FCC
UL
Management Interface
Live view: Simultaneous 1x1, 2x2, 3x3, 1+7, 1+5, 4x4, 5x5, 32x1 views or auto switch single view
Scheduled recording: continuous and motion detection with optional holiday exceptions.
Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss.
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import / export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
TRENDnet IP View App
Free iOS® and Android™ app
View your NVR video on your mobile device
Take snapshots
Zoom
2 years warranty
