Trendnet 4-channel HD PoE NVR
Product Description
_1.jpg)

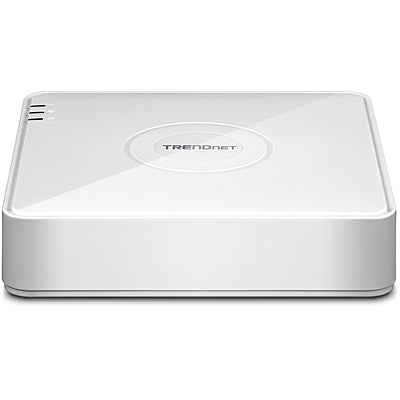

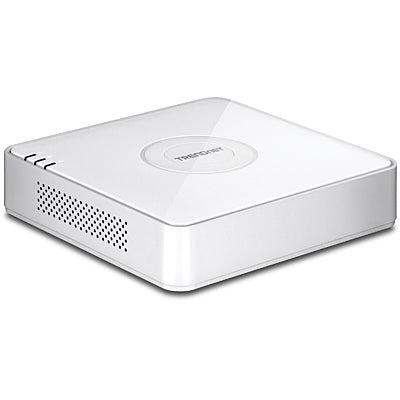

TRENDnet’s standalone 4-Channel 720p HD PoE NVR, model TV-NVR104, offers a comprehensive video display, storage, and management solution. The NVR networks and powers up to four PoE cameras* and auto-recognizes select TRENDnet cameras. Install up to a 6 TB hard drive (sold separately) to record four weeks of continuous video from four 720p PoE cameras**. Quickly review and export archived video with advanced playback.
Product Details
_chart.jpg)

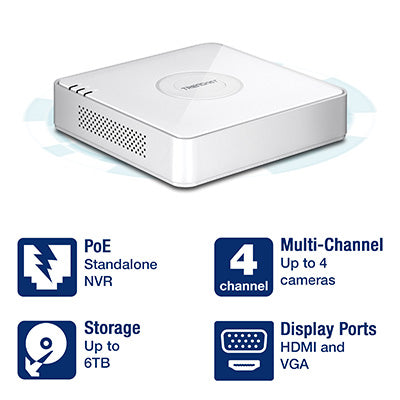

Standalone 720p HD NVR
This standalone 720p HD NVR supports up to 6 TB of storage and powers up to four PoE network cameras (hard drive, cameras, and display sold separately).
Plug-and-Play Installation
The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.

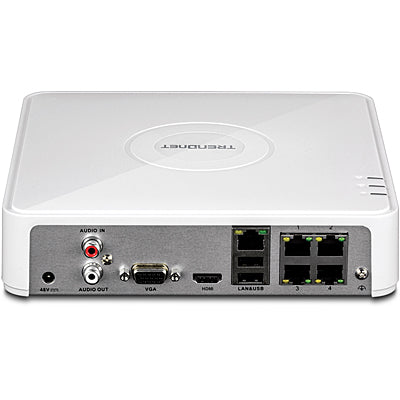

TV-NVR104 Hardware

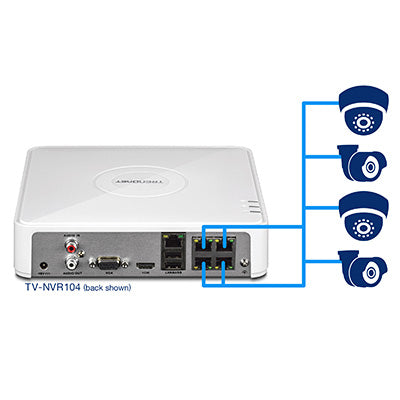

Plug and play TRENDnet PoE network cameras* to the four PoE (IEEE 802.3af) ports with a total PoE budget of 35 Watts
A 3.5” SATA I/II bay supports up to a 6 TB HDD/SSD (sold separately)
Ethernet network port
HDMI and VGA display ports
Audio in and out ports
One USB port for the included mouse and one for configuration backup and firmware upgrade
Includes a mouse and does not require a keyboard
TV-NVR104 Management
See live video on a mobile device with the free iOS® and Android™ apps
Access the NVR over the internet
Auto-recognizes compatible TRENDnet cameras* and works with most PoE network cameras
Single camera and quad-view modes with variable-time auto-scan function
For each camera, manage on screen display, image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss
Record up to 720p HD video at 30 fps in H.264 compression
Four weeks of recording per camera with a 6 TB HDD (sold separately) and four 720p cameras at 30 fps (medium VBR)
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full
Advanced archived video playback with a quick reference timeline and calendar
Quickly export specific video types over a specified time
Support for dyn.com and NO-IP.org
IPv6 support
Supports ONVIF compliant network camera
Product specifications
Video Input
4 PoE channels
Video Output
HDMI and VGA display outputs
Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 758 @ 60Hz
Audio
Analog audio in/out (1.0 Vp-p, 1kΩ)
Storage
One 3.5" SATA I/II HDD or SSD up to 6 TB storage (sold separately)
Network Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af

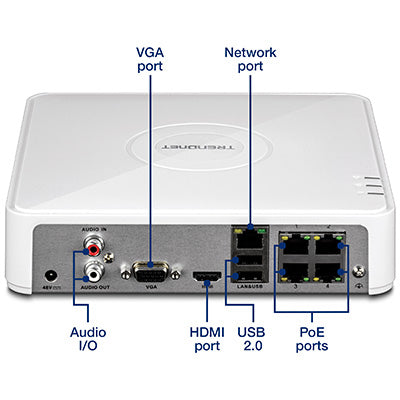

Device Interface
10/100 Mbps network port
4 x 10/100 Mbps PoE camera network ports
2 x USB 2.0 ports
HDMI port
VGA port
Analog audio in port
Analog audio out port
Power port
LED indicators (Power, Storage, and Network)
Grounding point
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP
HTTP, UPnP, RTSP, RTP, RTCP
Power
Input: 100 – 240 V AC, 50/60 Hz, 1.5 A
Output: 48 V DC, 1 A
Consumption: 50 Watts (with HDD and Max. PoE PD
PoE power budget: 35 Watts
Operating Temperature
-10 - 55 °C (14 - 131 °F)
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
Dimensions
199 x 199 x 47 mm (7.8 x 7.8 x 1.8 in.)
Weight
584 g (20.6 oz.)
Management Interface
Live view: Single camera or quad-view
Camera management[i]:
Scheduled recording: continuous and motion detection
Video recording: Record up to 720p HD video
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
IPv6 support
Supports ONVIF compliant network camera
Remote Viewing and Management
User interface compatible with Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
2 years warranty
