Trendnet 4-channel HD PoE NVR + 2TB Hard Drive
Product Description
_1.jpg)

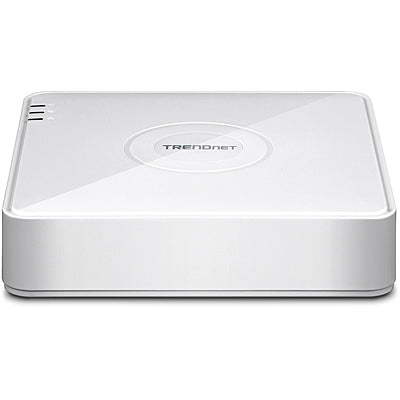

TRENDnet’s standalone 4-channel HD PoE NVR, model TV-NVR104D2, offers a comprehensive camera management solution. This NVR includes a preinstalled 2 TB hard drive providing up to one week of continuous HD video recording and connects up to four PoE cameras*. The TV-NVR104D2 features advanced video playback and free iOS® / Android™ apps available.
Product Details
Standalone HD NVR

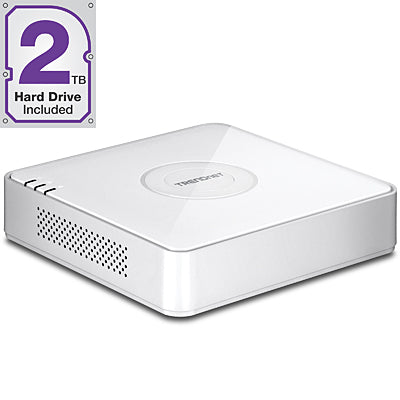

This standalone 720p HD NVR includes a preinstalled 2 TB hard drive and supports a total storage capacity of up to 6 TB and powers up to four PoE network cameras-HDDs, cameras, and display sold separately.
Plug-and-Play Installation
The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.
Hardware

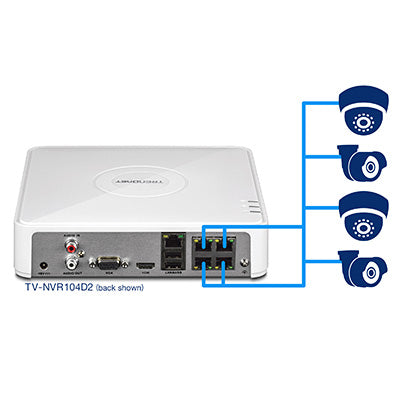

Plug and play TRENDnet PoE network cameras* to the four PoE ports with a total power budget of 35 W
One 3.5” SATA II bay with preinstalled 2 TB HDD – upgradeable to 6 TB of total storage**
Gigabit Ethernet network uplink port
HDMI and VGA interfaces
Audio in and out ports
One USB port for the included mouse and one for configuration backup and firmware upgrade
Management
See live video on a mobile device with the free iOS® and Android™ apps
Access the NVR over the internet
Auto-recognizes TRENDnet cameras* and works with most PoE network cameras
Multiple camera viewing options with auto-scan function
For each camera, manage on-screen display (OSD), image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss
Max. resolution for all cameras concurrently: Full HD 720p video at 30 fps in H.264 compression
Max. for a single camera: 1080p resolution in H.264 compression
Two weeks of continuous recording per camera with preinstalled 2 TB HDD and 4 x 720p cameras at 30 fps (medium VBR)
Four weeks of continuous recording per camera with 6 TB of storage (HDDs sold separately) and 4 x 720p cameras at 30 fps with medium VBR
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full
Advanced archived video playback with a quick reference timeline and calendar
Quickly export and archive recorded video
Support for dyn.com and NO-IP.com
IPv6 support
Supports ONVIF compliant network camera
Product Specifications
Video Input
4 PoE channels
Video Output
HDMI and VGA display outputs
Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 758 @ 60Hz
Audio
Analog audio in / out (1.0 Vp-p, 1kΩ)
Storage
One 3.5" SATA I / II HDD or SSD up to 6 TB storage
Network Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af

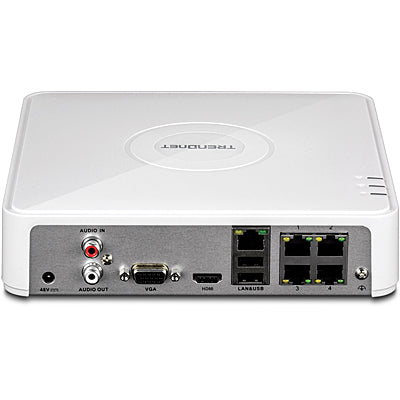

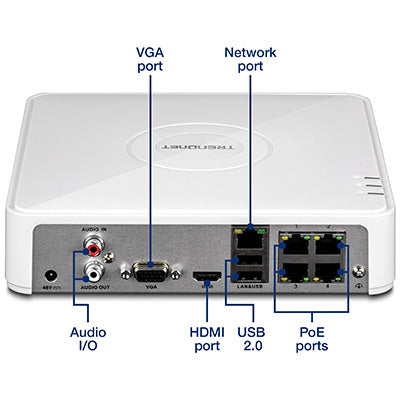

Device Interface
10/100 Mbps network port
4 x 10/100 Mbps PoE camera network ports
1 x 2 TB HDD
2 x USB 2.0 ports
HDMI port
VGA port
Analog audio in port
Analog audio out port
Power port
LED indicators (Power, Storage, and Network)
Grounding point
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP
HTTP, UPnP, RTSP, RTP, RTCP
Power
Input: 100 – 240 V AC, 50 / 60 Hz, 1.5 A
Output: 48 V DC, 1 A
Consumption: 50 watts (with HDD and Max. PoE PD)
PoE power budget: 35 watts
Operating Temperature
-10 - 55 °C (14 - 131 °F)
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
Dimensions
205 x 198 x 45 mm (8.1 x 7.8 x 1.8 in.)
Weight
1.3 kg (3 lb.)
Management Interface
Live view: Single camera or quad-view
Camera management*:
Scheduled recording: continuous and motion detection
Video recording: Record up to Full 720p HD video
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import / export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
IPv6 support
Supports ONVIF compliant network camera
Remote Viewing and Management
User interface compatible with Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
2 years warranty
