Trendnet 4-Port DVI KVM Switch Kit

$522.19 $655.70

SKU: TK-422DVK
MODEL: 4-Port DVI KVM Switch Kit
Product Description The 4-Port DVI KVM Switch Kit, model TK-422DVK, allows you to control four computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-422DVK supports advanced keyboard and mouse designs...
Quantity
Add to Wishlist

Product Description

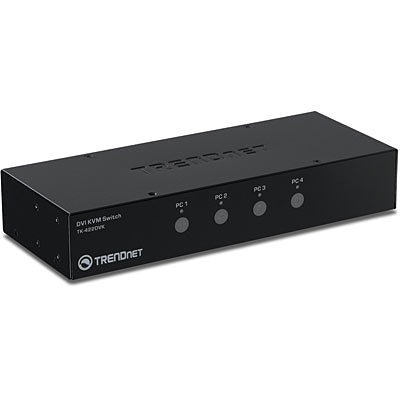

The 4-Port DVI KVM Switch Kit, model TK-422DVK, allows you to control four computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-422DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.

Product Details

Computers
Control up to 4 computers

HD+
Supports resolutions higher that 1080p HD (up to 2560 x 1600 pixels)

2-Way Audio
Full audio support maximizes work station productivity

Console Connectors
Emulation Technology supports most advanced keyboard and mouse designs

DVI-D Monitor
Designed to connect to a monitor’s DVI port and supports a 60 Hz refresh rate

Resolution Optimization
Adopts screen resolution from the connected device settings

Computer Ports
Requires free USB and DVI ports from connected computer

Housing
Rugged metal enclosure

USB Share Ports
Two additional USB ports to connect storage drives and printers

Cables Included
All required cables included

Hot Keys
Hot Key command shortcuts


Specifications

KVM Ports to Console
Keyboard: USB
Mouse: USB
Monitor: DVI-I
2-portUSB 2.0 hub
Speaker jack: 3.5 mm
Microphone jack: 3.5 mm

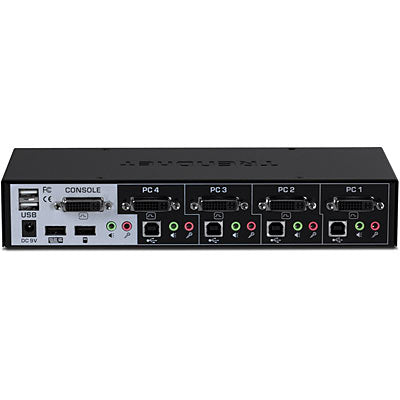

KVM Ports to Computer (up to 4)
Keyboard/mouse: USB 2.0 type B
Monitor: DVI-I
Speaker jack: 3.5 mm
Microphone jack: 3.5 mm

Computer Connections (up to 4)
Keyboard/mouse: USB 2.0 type A
Monitor: Single Link/ Dual Link DVI-I/DVI-D
Speaker jack: 3.5 mm
Microphone jack: 3.5 mm

Monitor Resolution
Digital: 2560 x 1600 @ 60 Hz
Analog: 2048 x 1536 @ 60 Hz

Switching Control

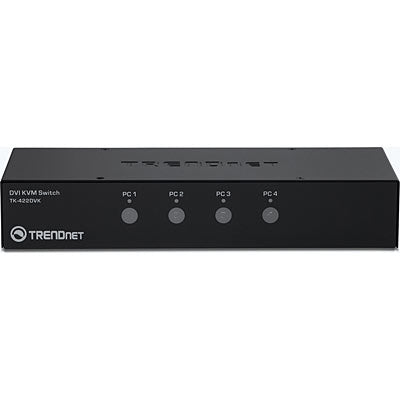

Face panel touch buttons
Keyboard hot key commands

Switching Notification
Audio

Scanning Interval
10 - 60 seconds (Hot key controls)

Special Features
Support Dual Link DVI-D monitor
Advance mouse and keyboard support
All time DDC emulation
Two bonus USB ports
Metal housing

Operating Temperature
0 – 40 °C (32 – 104 °F)

Operating Humidity
Max. 90% non-condensing

Power
Input: 100 - 240 V AC, 50/60 Hz, 0.4 A
Output: 9 V DC 1 A external power adapter
Consumption: 0.85 Watts (Max.)

Dimensions
254 x 120 x 45 mm (10 x 4.7 x 1.8 in.)

Certifications
CE
FCC

2 Years Warranty
