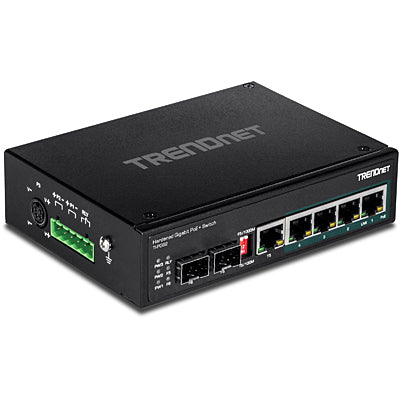

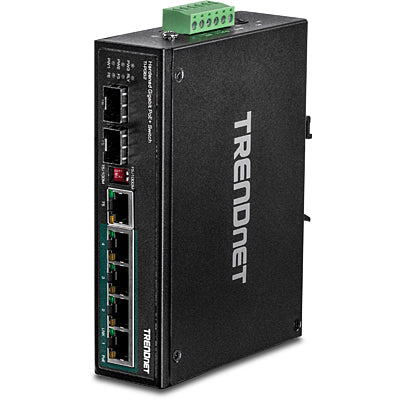

Trendnet 6-port Hardened Industrial Gigabit PoE+ Switch

$325.68 $465.52

SKU: TI-PG62
MODEL: 6-port Hardened Industrial Gigabit PoE+ Switch
Product Description TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a...
Quantity
Add to Wishlist

Product Description

TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.

Product Details

PoE Power


A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance


Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Industrial Hardened Design


Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

Network Ports

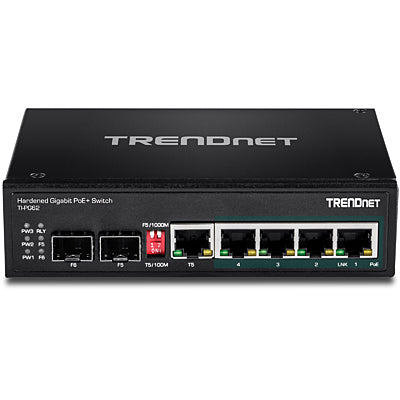

4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

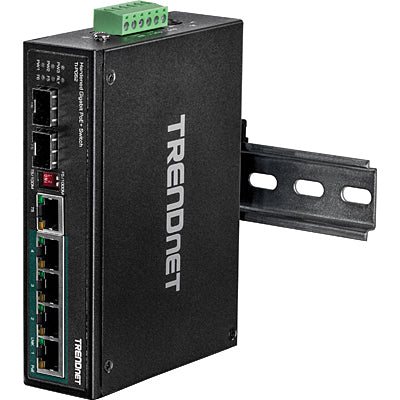

DIN-Rail / Wall Mounts

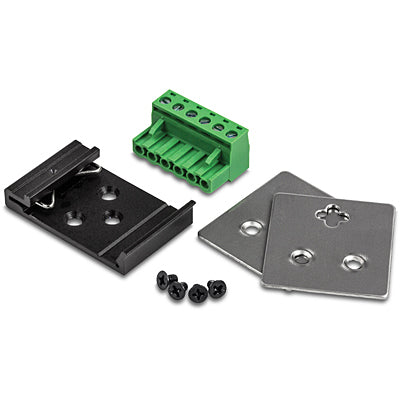

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity


12 Gbps switching capacity

Redundant Power


Dual redundant power inputs with overload current protection (power supply sold separately models: 48VDC3000 / TI-S24048 / TI-S12048)

Alarm Relay


Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame


Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures


Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance


Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications


Rated for information technology (ITE) equipment (EN55022 / 24); industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant


Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point


Grounding point protects equipment from external electrical surges

Specifications

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

Device Interface
4 x Gigabit PoE+ ports
1 x Shared Gigabit port
1 x Shared SFP slot
1 x Dedicated SFP slot
6-pin removable terminal block
LED indicators
DIP switch
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)

Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 12 Gbps
MAC Address Table: 1 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)

Special Features
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8KV support

DC Power
Input: 48 - 56 V DC
Compatible power supply: TI-S12048 (sold separately)
Consumption: Max. 5.76 Watts (no PoE)

AC Power
Input: 100 - 240 V AC, 50/60 Hz, 2 A
Compatible power adapter: 48VDC3000 (sold separately)
Output: 48V DC, 3.34 A 160 W max.

PoE
PoE budget: 120 Watts

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm

DIP Switch
1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
2: OFF (SFP 1000M, default), ON (SFP 100M)

Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected

MTBF
460,304 hours

Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection

Operating Temperature
- 40 to 75 °C (-40 to 167 °F)

Operating Humidity
Max. 95 % non-condensing

Dimensions
143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.)

Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

3 Years Limited Warranty
