Trendnet 8-Channel HD CCTV DVR Surveillance Kit

$701.27 $1,005.64

SKU: TV-DVR208K
MODEL: 8-Channel HD CCTV DVR Surveillance Kit

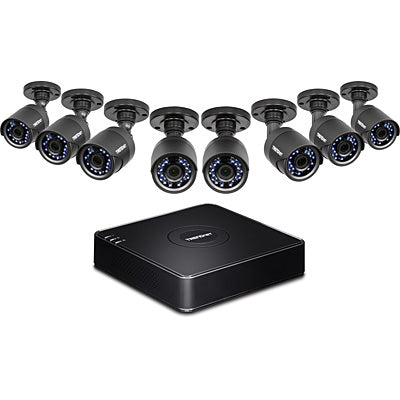

Product Description TRENDnet’s 8-Channel HD CCTV DVR Surveillance Kit, model TV-DVR208K, offers a comprehensive video, storage, and management solution. The DVR kit comes with a pre-installed 1 TB hard drive plus eight 1080p HD IR analog cameras, each with an IP66 outdoor weather rating. With a plug and play camera...
Quantity
Add to Wishlist

Product Description

TRENDnet’s 8-Channel HD CCTV DVR Surveillance Kit, model TV-DVR208K, offers a comprehensive video, storage, and management solution. The DVR kit comes with a pre-installed 1 TB hard drive plus eight 1080p HD IR analog cameras, each with an IP66 outdoor weather rating. With a plug and play camera installation, the DVR is simple to use and conveniently powers all eight cameras. Connect your TRENDnet DVR kit to your network for local and remote access to your surveillance system. Record one week of continuous video and utilize the advanced video playback features from the intuitive user interface.



Product Details

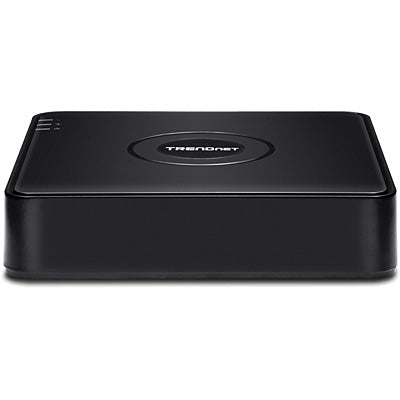

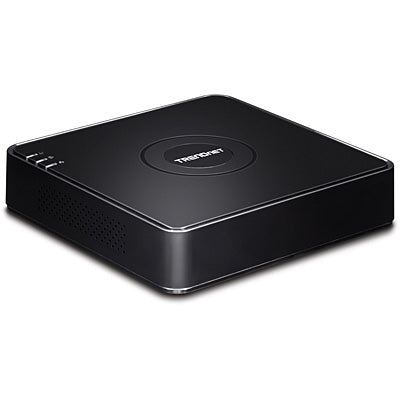

Standalone HD DVR


This standalone CCTV HD DVR includes a preinstalled 1 TB HDD that provides days of continuous 1080p video recording for up to eight CCTV cameras (display sold separately).

Plug-and-Play Installation


The DVR auto-recognizes and powers TRENDnet CCTV cameras – simply connect the included cameras and start recording surveillance video.

Intuitive Interface


Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.

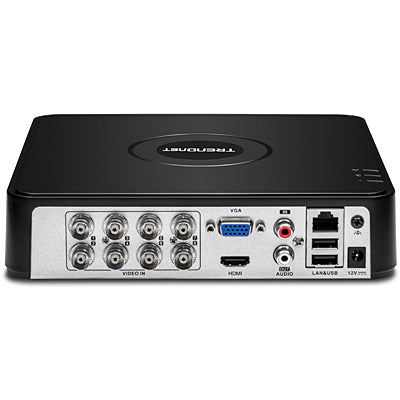

TV-DVR208 Hardware

BNC Connectors
Plug and play CCTV cameras to the eight BNC connectors

Storage Bay
Pre-installed 1 TB SATA hard drive

Network Port
Ethernet network port for uplink connection to the internet for remote viewing

Display Ports
HDMI and VGA display ports

Audio Ports
Audio in and out ports

USB Ports

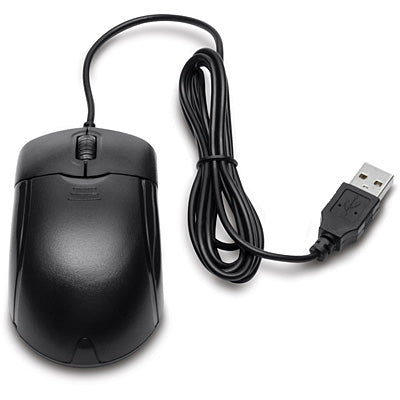

One USB port for the included mouse and one for video exporting

TV-DVR208 Management

Mobile App
See live video on a mobile device with the free iOS® and Android™apps

Remote Access
Access the DVR over the internet

Camera Setup
Auto-recognizes compatible TRENDnet CCTV cameras

Live View
Single camera and multi-view modes with time adjustable auto-scan function

Camera Management
For each camera, manage on screen display, image settings, motion detection, privacy masks, tamper detection, and video loss

Video Recording
Record up to 1080p HD video at 12 fps

Recording Time
72 hours of recording per camera: 8 cameras with continuous recording at 1920 x 1080 at 12 fps with pre-installed 1 TB HDD
6 days of recording per camera: 8 cameras with continuous recording at 720p at 12 fps with pre-installed 1 TB HDD

Scheduled Recording
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full

Advanced Playback
Advanced archived video playback with a quick reference timeline and calendar

Video Export
Quickly export specific video recordings via the USB 2.0 port

Dynamic DNS Support
Support for dyn.com and noip.com

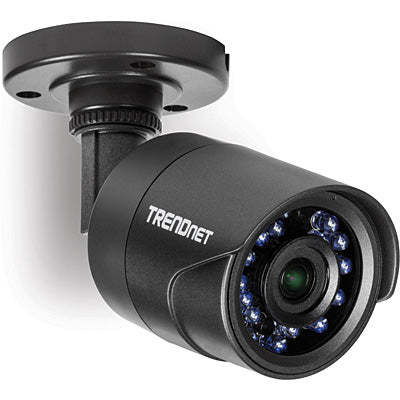

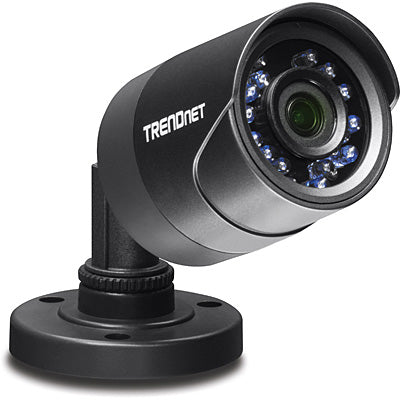

DVR Camera Hardware

Adjustable Bracket
Fully adjustable integrated mounting bracket provides installation flexibility

Outdoor Ready
Outdoor IP66 weather rated and an operating temperature range of -40 ° – 60 °C (-40° – 140 °F)

2 Megapixel
Record 1920 x 1080 HD video at 12 fps

Night Vision
Night vision up to 20 meters (66 ft.) in complete darkness

Smart IR
Dynamic IR adjustment optimizes night visibility



Specifications

Video Input

8 channels
Interface: BNC (1.0 Vp-p, 75 Ω)

Video Output
HDMI and VGA display outputs
Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 768 @ 60Hz
Up to 22 fps

Audio
Analog audio in / out, RCA (linear, 1KΩ)
Compression: G.711u

Storage
One 3.5" SATA I/II HDD or SSD up to 6 TB storage

Network Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

Device Interface
1 x 10/100 Mbps network port
2 x USB 2.0 ports
8 x BNC connectors
1 x 1 TB HDD (pre-installed)
HDMI port
VGA port
Analog audio in port
Analog audio out port
Power port
LED indicators (Power, Storage, and Network)
Grounding point

Network Protocol
IPv4, IPv6, UDP, TCP, ICMP
DHCP, NTP, DNS, DDNS, SMTP, FTP
HTTP, UPnP, RTSP, RTP, RTCP

Power
Input: 100 – 240 V AC, 50/60 Hz, 0.6A
Output: 12 V DC, 1.5 A
Consumption: 8 W max.

Operating Temperature
-10 - 55 °C (14 - 131 °F)

Operating Humidity
Max. 90% non-condensing

Certifications
CE
FCC

Dimensions
200 x 200 x 45 mm (7.9 x 7.9 x 1.8 in.)

Management Interface
Live view: Single camera or quad-view
Camera management :
Scheduled recording: continuous and motion detection
Video recording: Record up to 1080p HD video
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Remote Viewing and Management
User interface compatible with Internet Explorer® 9.0 or higher, Safari® 4.0 or higher

TRENDnet IP View App
Free iOS® and Android™ app
View your DVR video on your mobile device
Take snapshots
Zoom

CAMERA SPECIFICATIONS

Lens
Focal Length: 3.6 mm
Sensor: 1/ 2.7” CMOS sensor

Viewing Angle
82.2˚

Minimum Illumination
IR off: 0.01 lux
IR on: 0 lux
20 m distance
IR wavelength : 850 nm

H.264 Resolution
Main stream: 1920 x 1080 up to 12 fps
Sub stream: 960 x 576 up to 22 fps

Device Interface
IR LEDs

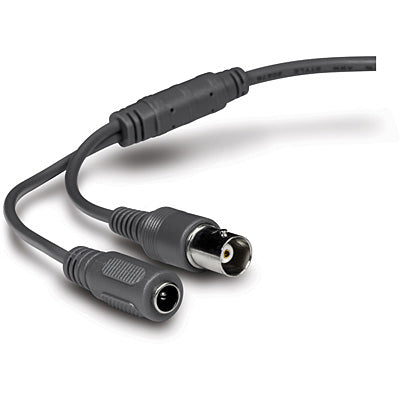

BNC connectors
Power jack

Housing
IP66 rated

Dimension
70 x 70 x 154 mm (2.75 x 2.75 x 6 in.)

Operating Temperature
-40 – 60 °C (-40 – 140 °F)

Humidity
Max. 90% non-condensing

Power
Input: 100 - 240 V AC , 50/60 Hz, 0.7 A
Output: 12 V DC, 2 A external power adapter
Consumption: 4 W max.
