Trendnet Hardened Industrial 100/1000 Base-T to SFP Media Converter

$175.67 $250.34

SKU: TI_F11SFP
MODEL: Hardened Industrial 100/1000Base-T to SFP Media Converter
Product Description TRENDnet’s TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply...
Quantity
Add to Wishlist

Product Description

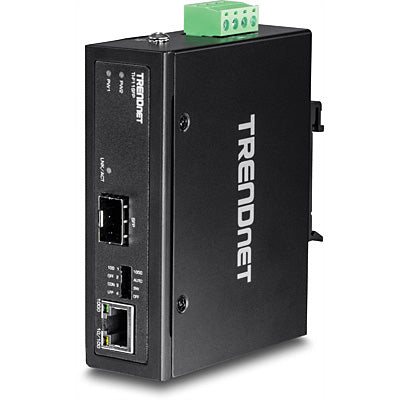

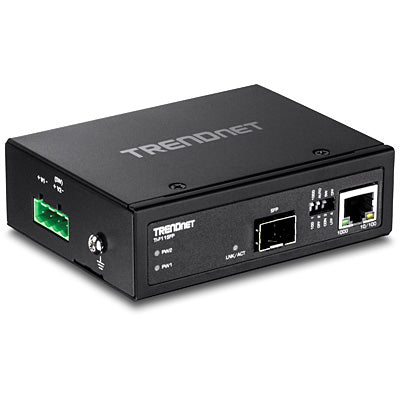

TRENDnet’s TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.



Product Details

Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter
SFP port accommodates Multi or Single Mode fiber
Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module

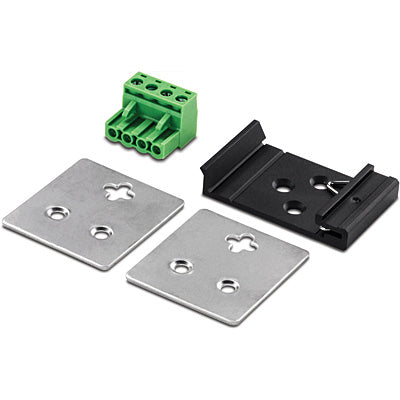

Includes DIN-rail and wall mounts
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Powers supply sold separately (model TI-M6024)

Network Ports :1 x Gigabit Ethernet port and 1 x SFP slot

Dip Switches : Dip Switch 1: 100 or 1,000 Mbps throughput speeds
Dip Switch 2: Enable/disable port Auto-Negotiation
Dip Switch 3: Converter or Switch mode
Dip Switch 4: Enable/disable Link Fault PassThrough (LFP) support

DIN-Rail/Wall Mounts : IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity : 2 Gbps switching capacity

Jumbo Frame : Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance


Extreme Temperatures : Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)


Electro Magnetic Compliance : Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards


Certifications : Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)


Shock and Vibration Resistant : Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)


Grounding Point : Grounding point protects equipment from external electrical surges



Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xDevice Interface1 x Gigabit port1 x Gigabit SFP slot4-pin removable terminal blockLED indicatorsDIP SwitchDIN-Rail mountWall mountGrounding point

Data Transfer RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)Gigabit: 2000 Mbps (full duplex)

PerformanceData RAM Buffer: 1024 KBJumbo Frame: 9 KB

Special FeaturesHardened components rated for extreme temperaturesDual redundant

power inputsAuto-NegotiationAuto store and forward architectureAutomatic address learning and address agingESD 8 KV and Surge 6 KV protectionPowerInput: 12 - 56 V DC or 18 - 36 V ACCompatible power supply: TI-M6024 (sold separately)Consumption: Max. 3 Watts

Terminal BlockRedundant power inputs, 4 pinWire range: 0.34 mm^2 to 2.5 mm^2Solid wire (AWG): 12-24/14-22Stranded wire (AWG): 12-24/14-22Torque: 5 lb. – In / 0.5 Nm / 0.56 NmWire strip length: 7-8 mm

DIP Switch1: Set SFP speed to 100 Mbps or 1000 Mbps2: Enable or disable auto-negotiation on SFP port3: Set to switch or pass through mode4: Turns LFP (Link Fault Pass Through) on or off

MTBF510,304 hours

HousingIP30 metal caseDIN-rail mountWall mountGrounding point8 KV ESD protection6 KV surge protection

Operating Temperature- 40 to 75 °C (-40 to 167 °F)

Operating HumidityMax. 95 % non-condensing

Dimensions113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.)

Weight152 g (5.4 oz.)

CertificationsCEFCCShock (IEC 60068-2-27)Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

3 years Limited warranty
