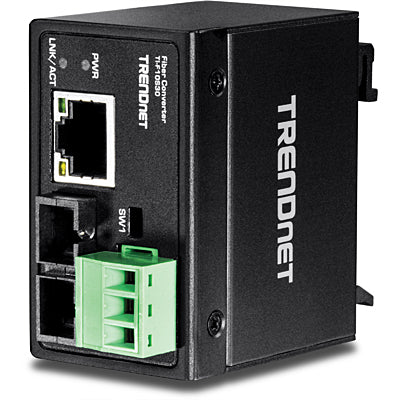

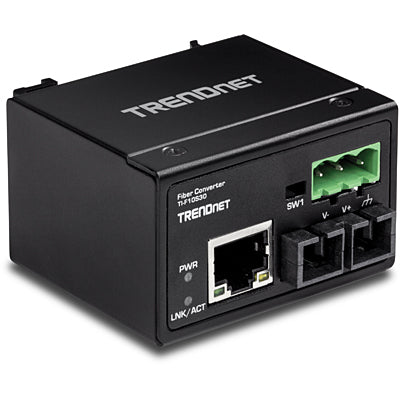

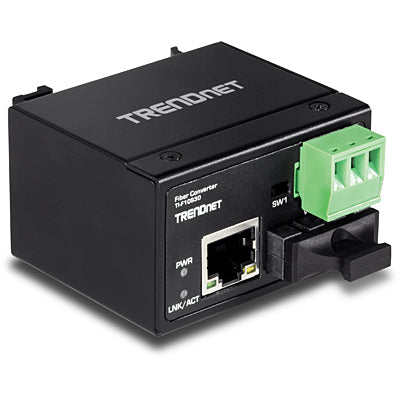

Trendnet Hardened Industrial 100Base-FX Single-mode SC Fiber Converter (30KM)

$195.44 $278.60

SKU: TI_F10S30
MODEL: Hardened Industrial 100Base-FX Single-mode SC Fiber Converter (30KM)
Product Description TRENDnet’s TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately:...
Quantity
Add to Wishlist

Product Description


TRENDnet’s TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.

Product Details

Hardened IP40 rated compact housing
100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 mi.)
SC-type fiber port
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Overload current protection

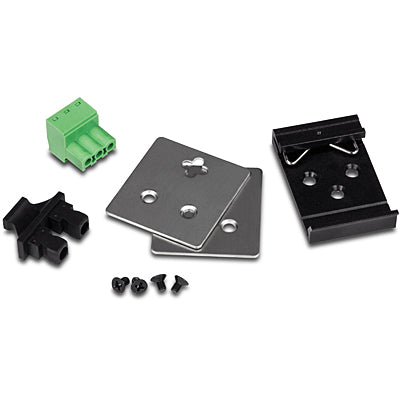

Includes DIN-rail and wall mounts
Power supply sold separately (model TI-M6024)

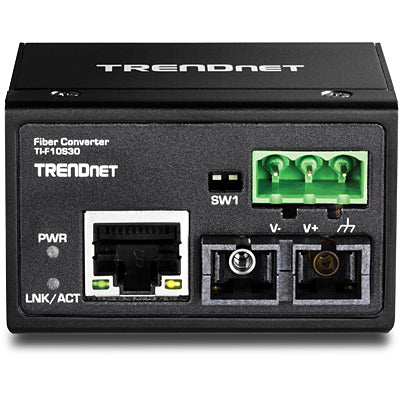

Network Ports
1 x 10/100 Mbps Ethernet port and 1 x 100Base-FX SC-type fiber port



Fiber
100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles)



Dip Switches
Dip Switch 1: Enable/disable Link Fault Pass Through (LFP) support
Dip Switch 2: Converter mode or switch mode

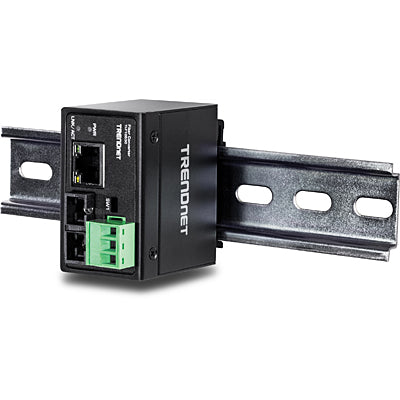

DIN-Rail/Wall Mounts
IP40 rated metal enclosure with included DIN-rail and wall mount hardware



Extreme Temperatures
Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)



LED indicators
LED indicators confirm network connectivity

Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3xDevice Interface1 x 10/100 Mbps port1 x 100Base-FX port (SC-type)3-pin terminal blockLED indicatorsDIN-Rail mountWall mountGrounding point

Data Transfer RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Special FeaturesHardened components rated for extreme temperaturesAuto-NegotiationLink Fault Pass Through (LFP)Converter mode, switch modeESD 8 KV and Surge 6 KV protection

FiberMedia: Single-mode SC connectorCable: 62.5 / 125 or 50 / 125 µmWavelength: 1310 nmOptical Output Power (dBm): -15 ~ -8Optical Input Power (dBm): -34 ~ 0Power Budget: 7Distance: 30 km

PowerInput: 12 – 60 V DC or 18 – 36 V ACCompatible power supply: TI-M6024 (sold separately)

Consumption: Max. 1.92 Watts

Terminal BlockRedundant power inputs, 3 pinWire range: 0.34 mm^2 to 2.5 mm^2Solid wire (AWG): 12-24/14-22Stranded wire (AWG): 12-24/14-22Torque: 5 lb. – In / 0.5 Nm / 0.56 NmWire strip length: 7 – 8 mm

MTBF510,304 hours

HousingIP40 metal caseDIN-rail mountWall mountGrounding point8 KV ESD protection6 KV surge protection

Operating Temperature- 40 to 75 °C (-40 to 167 °F)

Operating HumidityMax. 95 % non-condensing

Dimensions60 x 50 x 35 mm. (2.4 x 2 x 1.4 in.)

Weight90 g (3.2 oz.)

CertificationsCEFCCShock (IEC 60068-2-27)Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

3 years Limited warranty
