Trendnet Indoor / Outdoor 3 MP HD PoE Network Camera
Product Description

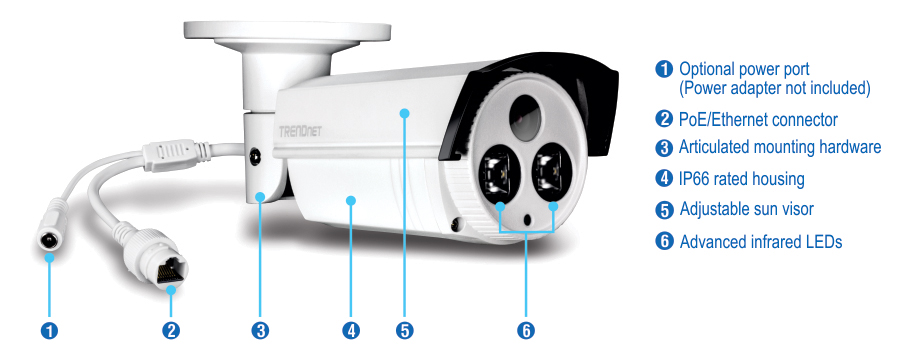

TRENDnet’s Indoor / Outdoor 3 MP HD PoE IR Network Camera, model TV-IP312PI, offers night vision up to 50 meters (164 ft.), an IP66 weather rating, and an integrated mounting bracket. Ultra energy efficient advanced infrared creates a more balanced night vision illumination field and reduces close object overexposure. Record 3 Megapixel HD video (2048 x 1536) at 20 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps._1.jpg)
Product Details
Day/Night HD Surveillance
Powerful 3 Megapixel video (above Full 1080p) at 30 fps in H.264 compression and 50 meter rated night vision provide 24-hour surveillance.
Outdoor Ready
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F).
Advanced Night Vision

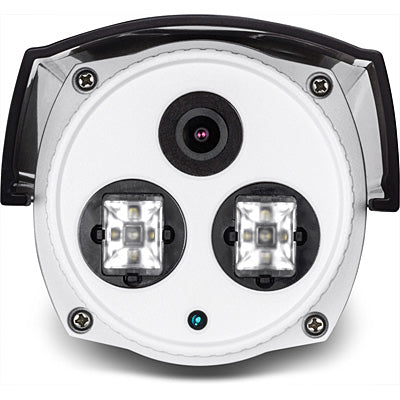

Advanced infrared LEDs provide improved night vision and significantly reduce close object overexposure—common with standard infrared LEDs.
Powerful Night Vision
Night vision up to 50 meters (164 ft.) with advanced infrared noise reduction
Advanced IR Technology
Ultra energy efficient advanced infrared creates a more balanced night vision illumination field and reduces overexposure of close objects in the center of the viewing field (common with standard IR LEDs)
Outdoor Rated
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F)
PoE
Compatible with IEEE 802.3af PoE switches and extenders
Sun Visor
Adjustable sun visor
Integrated Mounting Bracket
Integrated articulated mounting bracket supports most installations
D-WDR
Improved image quality in high contrast lighting environments with Digital Wide Dynamic Range technology
Recording Schedule
Define a weekly hybrid continuous and motion detection recording schedule
IPv6
IPv6 support
ONVIF
ONVIF compliant
Complimentary Software
Complimentary pro-grade software to manage up to 32 TRENDnet cameras
Complimentary Apps
Live video to a mobile device with free iOS® and Android™ apps
Specifications
Lens
Focal length: 4 mm
Focal depth: 20 cm+
Aperture: F2.0
Board lens
Sensor: 1/3" progressive scan CMOS
Viewing Angle
Horizontal: 77°
Vertical: 42°
Diagonal: 90°
Zoom
User-defined digital zoom
Minimum Illumination
IR off: 0.19 lux
IR on: 0 lux
50 meter IR illumination distance
Smart IR reduces close object overexposure
Video
D-WDR: 0-100 scale
3D Digital Noise Reduction (DNR)
Shutter speed: 1/3 - 1/100,000
H.264: 2048 x 1536 up to 20 fps
Hardware Standards
IEEE 802.1X
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
Device Interface

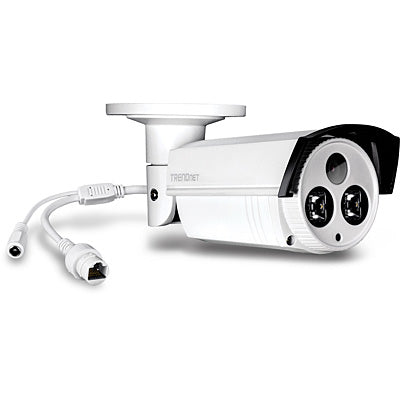

10/100 Mbps PoE port
Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
Integrated adjustable mounting base
LED indicator.
Housing
Weather rating: IP66
Adjustable sun visor
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), QoS
NFS, SMB/CIFS
HTTP, HTTPS
PPPoE
UPnP, RTSP, RTP, RTCP, SSL
Operating Temperature
-30 - 60 °C (-22 - 140 °F)
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
UL 60950
Dimensions
104 x 104 x 243 mm (3.9 x 4.1 x 9.6 in).
Power
Input: PoE (802.3af)
Consumption: 9 Watts max.
Optional Power Supply (Sold separately)
Output: 12 V DC 1 A
5.5 mm barrel connector
TRENDnet power adapter, model 12VDC1A, sold separately
Management Interface
Multi-language support: English, French, German, Russian, and Spanish
IP address filter
QoS traffic prioritization
Time, date, and text overlay
Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
D-WDR enhances video quality in high contrast daytime lighting
3D Digital Noise Reduction enhances night vision quality
Scheduled recording: continuous and motion detection
Video storage: to computer, NAS, CIFS/SAMBA share or through software
Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
Privacy masks: define custom privacy mask areas
Tamper detection: email notification if the viewing field darkens suddenly
Video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
Alert messages: storage full, storage error, and illegal login
Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
Supported dynamic DNS services: Dyn.com and NO-IP.org
Management Setting: maximum 32 user accounts
Supports remote management
Storage logs: Alarm, Exception, Operation, and others
Compatibility: Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
TRENDnetView Pro Software
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
Free iOS and Android™ app
View your camera on your mobile device
Take snapshotsZoom
MJPEG: 704 x 480 up to 30 fps
