Trendnet Industrial SFP to Gigabit UPoE Media Converter

$296.61 $424.22

SKU: TI-UF11SFP
MODEL: Industrial SFP to Gigabit UPoE Media Converter

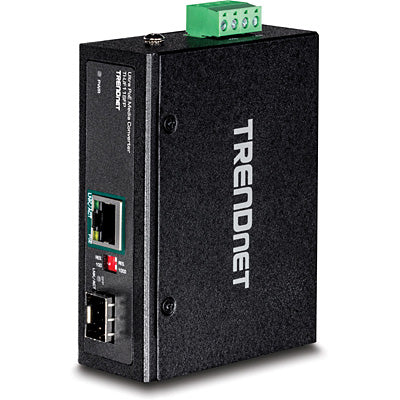

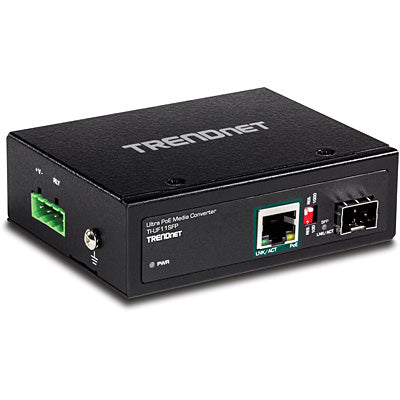

Product Description TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs...
Quantity
Add to Wishlist

Product Description

TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.


Product Details

Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.



UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.



Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range



Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot

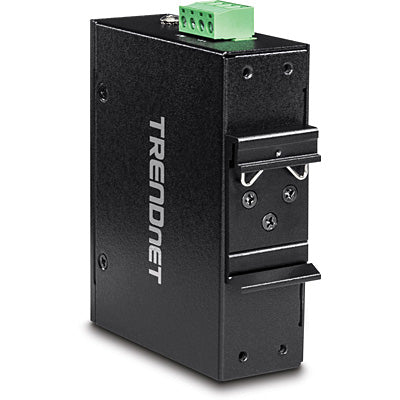

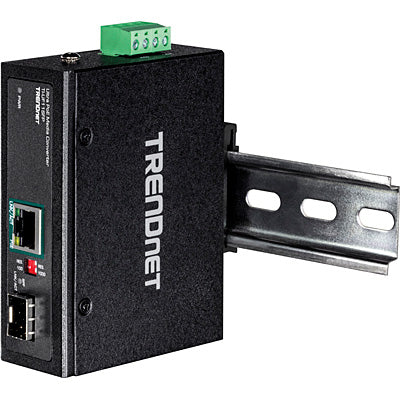

DIN-Rail/Wall Mounts

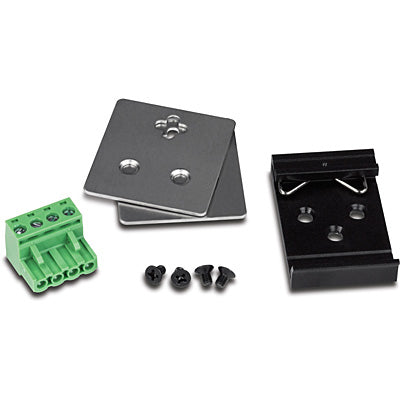

IP30 rated metal enclosure with included DIN-rail and wall mount hardware



Switching Capacity
2Gbps switching capacity


Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance



Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)



Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards



Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment



Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)



Grounding
Grounding point protects equipment from external electrical surges.

Specifications

Standards
IEEE 8023
IEEE 8023
IEEE 8023ab
IEEE 8023z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt draft

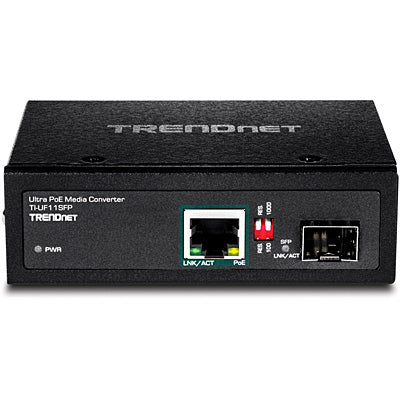

Device Interface
1 x Gigabit UPoE port
1 x 100/1000Mbps SFP slot
4-pin removable terminal block
LED indicatorsDIP switch
DIN-Rail mountWall mount
Grounding point

Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)

Performance
Data RAM Buffer: 1MB
Jumbo Frame: 9KB
MAC Address Table: 2K

Special Features
Hardened components rated for extreme temperatures
Auto-Negotiation
Automatic address learning and address aging

Power
Input: 48 – 56V DC
Required power supply: TI-S12048 (sold separately)
Max. consumption: 72W

PoE
Pin 3, 6, 4, 5 for power (+) and pin 1, 2, 7, 8 for power (-)
Power budget: 60W

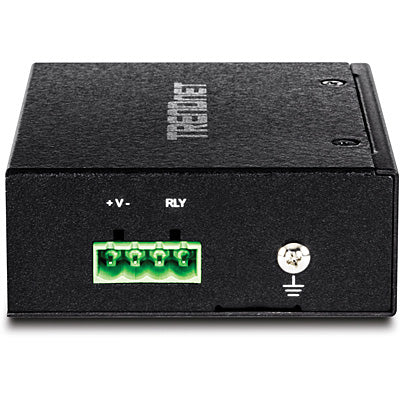

Terminal Block
Power and relay inputs, 4 pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5lbs. – In / 0.5Nm / 0.56 Nm
Wire strip length: 7-8mm

DIP Switch
1: reserved, no function
2: set SFP speed to 100Mbps or 1000Mbps

MTBF
510,304 hours

Housing
IP30 aluminum housing
DIN-Rail mountWall mountGrounding point

Operating Temperature
-40 – 75°C (-40 – 167°F)

Operating Humidity
Max. 95% non-condensing

Dimensions103.5 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)

Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
EN60950-1 (LVD)

3 Years Limited Warranty
