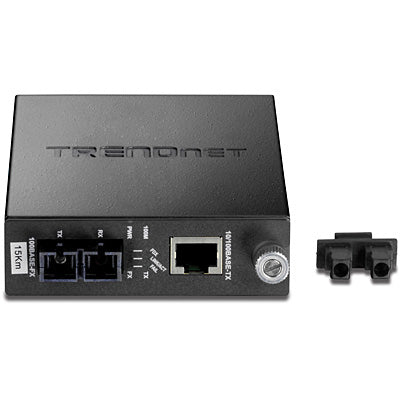

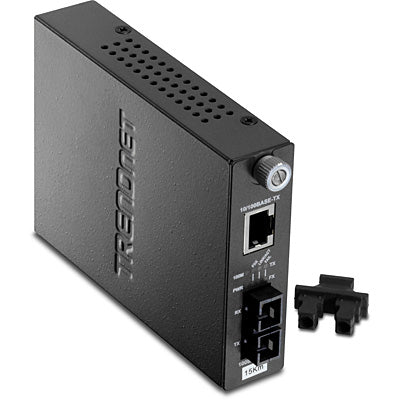

Trendnet Intelligent 10/100Base-TX to 100Base-FX Single Mode SC Fiber Converter(15km)
Product Description
The TFC-110S15i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type)
.
Product Details
- RoHS Compliant
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards
- Provides Dip switch to set: Fiber (FDX/HDX), UTP (Auto Negotiation/Manual), Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for FX port
- Monitor the status of duplex/link for FC, duplex / speed / link for TX via management module (TFC-1600MM) through Media Converter Chassis System (TFC-1600)
- Single-Strand Fiber Optic, Hot Pluggable &Wall-Mountable
- Optional 19” System Chassis (TFC-1600) holds up to 16 Media Converters
Product Specifications
HARDWARE
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX, 100Base-FX
Network Media
10Base-T: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm
STP100Base-TX: UTP Cat. 5, EIA/TIA-568 100-ohm STP
100Base-FX: 9/125μm or 10/125μm Single-Fiber Optic Cable, up to 15km
Protocol
CSMA/CD
Ports
1 x 10/100Base-TX RJ-45 Port
1 x 100Base-FX Single-Mode Fiber Port SC Connector
Dip Switch
Duplex mode for TX/FX, Auto Negotiation or Manual for TX, Speed (10M/100M) for TX, LLR (enable/disable) for FX, LLCF (enable/disable)
Transfer Rate
100Base-TX : 200Mbps (Full Duplex)
Diagnostic LED
Per unit: Power
Per port (TX): Link/Activity, FDX/HDX, Link Fail, Speed
(FX): Link/Activity, FDX/HDX, Link Fail
Power Adapter
7.5V DC, 1.5A External Power Adapter
Power Consumption
7.2 watts (max)
Dimensions
120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches)
Weight
354g (12.5oz)
Temperature
Operating : 0° ~ 40° C (32° ~ 104° F)
Storage : -25° ~ 70° C (-13° ~ 158° F)
Humidity
5% ~ 90% RH
Certification
FCC,CE
3 years warranty
