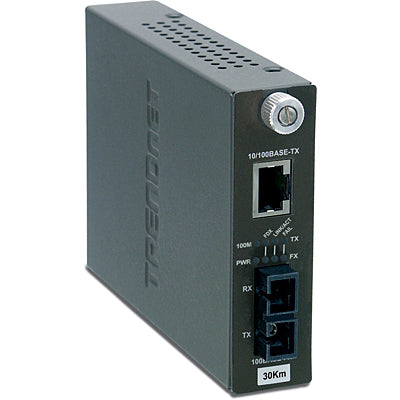

Trendnet Intelligent 10/100Base-TX to 100Base-FX Single Mode SC Fiber Converter(30km)
Product Description
The TFC-110S30i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 30km (18.6 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Product Details
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- One 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port and one 100Mbps fiber port with single-mode SC-type connector
- Provides Dip switch to set: Fiber (FDX/HDX), Ethernet (Forced/Auto-Negotation), Ethernet Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
- Half / Full-Duplex mode selector on Fiber port
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for FX port
- Monitor and configure Ethernet or Fiber’s duplex mode, speed, LLCF, LLR, and receive link down information via management module (TFC-1600MM) and chassis (TFC-1600)
- Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed
- Wall-Mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Product Specifications
HARDWARE
Standard
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
Standard Ethernet up to 1522byte
Network Media
100Base-TX : Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
100Base-FX : Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 30km
Protocol
CSMA/CD
Ports
1 x 10/100Base-TX
1 x 100Base-FX (SC-type)
Dip Switch
TX: duplex mode, forced/auto negotiation, speed
FX: duplex mode
LLR (enable/disable)
LLCF (enable/disable)
Transfer Rate
100Mbps (half-duplex)
200Mbps (full-duplex)
Diagnostic LED
Per Unit : power
Per Port : link/activity, full-duplex/collision, link fail, speed (on fiber port)
Power Adapter
7.5V DC, 1A external power adapter
Power Consumption
2 Watts (max)
Dimensions
120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
354g (12.5oz)
Temperature
Operating : 0° ~ 40° C (32° ~ 104° F)
Storage : -25° ~ 70° C (-13° ~ 158° F)
Humidity
5% ~ 90%
Certification
FCC,CE
Media
SMF
Wavelength
1310nm
Pout (dBm)
-15 ~ 8
Sensitivity
-34 ~ 0
Power
19
Distance
30km
3 years warranty
