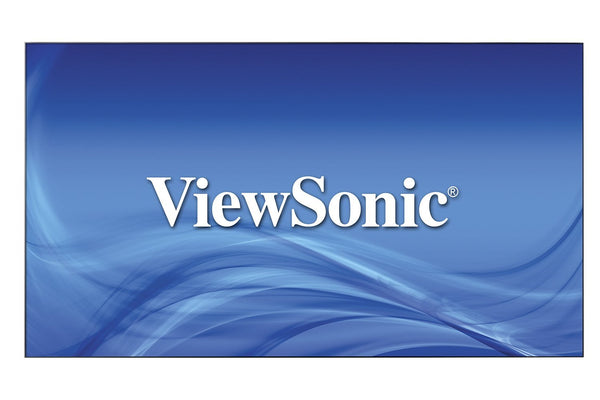

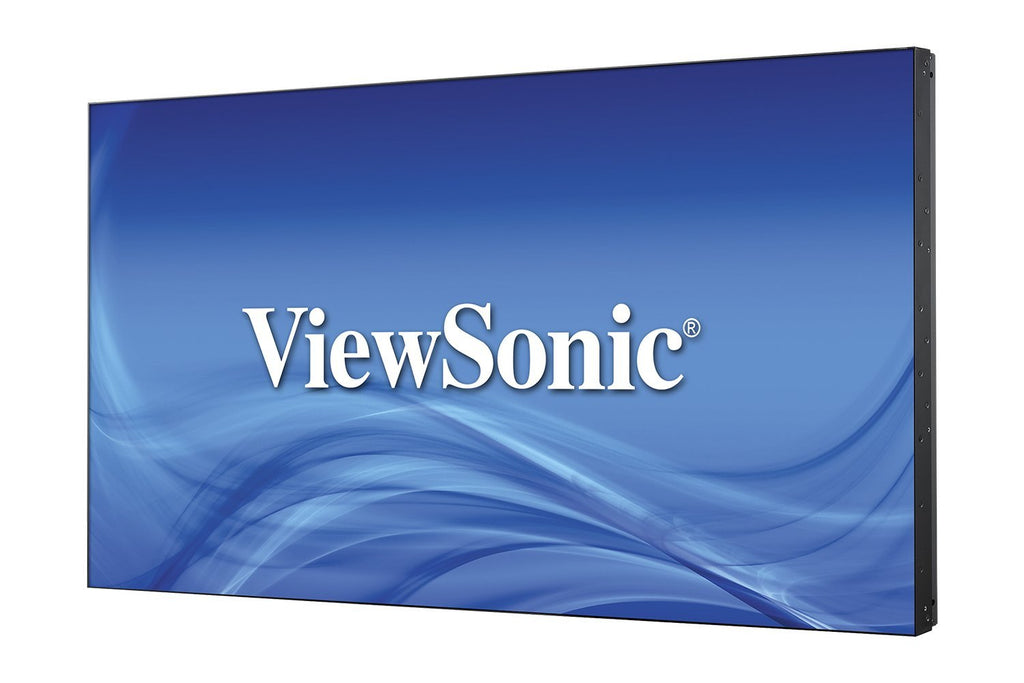

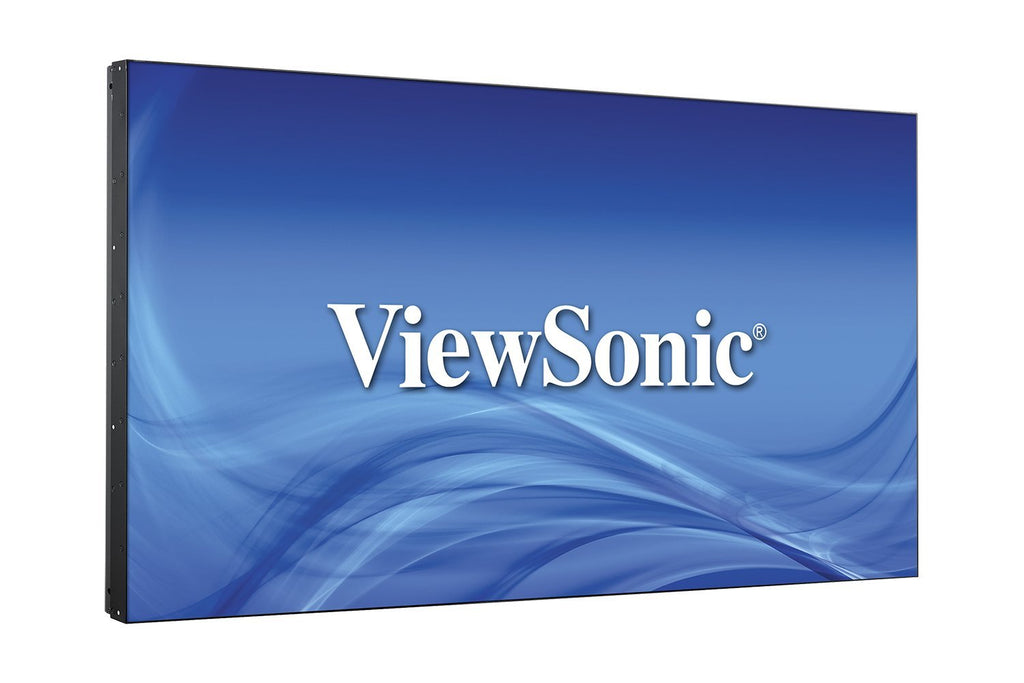

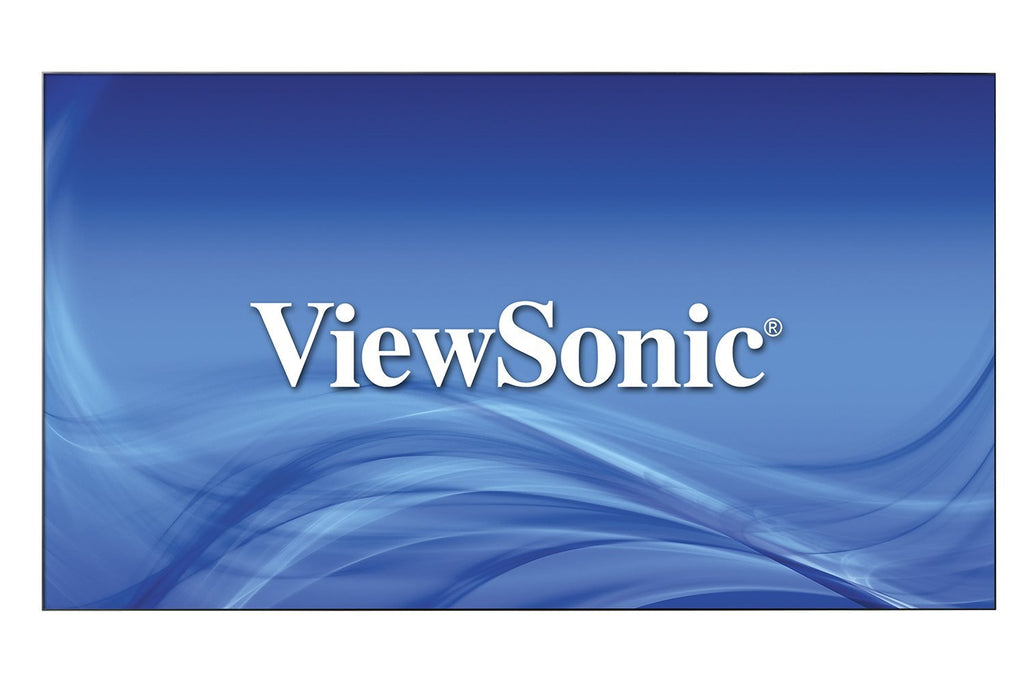

Viewsonic - 55" Full HD LED Commercial Display

$4,091.60 $4,350.00

SKU: CDX5552
MODEL: 55" Full HD LED Commercial Display
Product Description The ViewSonic CDX5552 is a 55’’ (54.6’’ viewable) commercial display with an ultra-narrow bezel optimized for multi-panel video wall applications. With an edge-to-edge bezel width of only 3.5mm between combined displays, and 10x10 installation via DisplayPort or DVI daisy-chain, the CDX5552 delivers nearly seamless, high-impact video walls for...
Quantity
Add to Wishlist

Product Description

The ViewSonic CDX5552 is a 55’’ (54.6’’ viewable) commercial display with an ultra-narrow bezel optimized for multi-panel video wall applications. With an edge-to-edge bezel width of only 3.5mm between combined displays, and 10x10 installation via DisplayPort or DVI daisy-chain, the CDX5552 delivers nearly seamless, high-impact video walls for public, retail, and transportation settings. With Full HD 1080p resolution, 500-nit brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX5552 delivers sharp, vivid images with incredible sound for superior multimedia performance. What’s more, 3840x2160 resolution is supported in 2x2 daisy-chain configurations for stunning 4K imaging. Free bundled vController and vConfigurator software provides easy maintenance and intuitive interfaces for remote management via a PC or media server. Versatile connectivity options include HDMI, DisplayPort, DVI, CVBS, YPbPr, VGA, RJ45, and RS232 with IR pass-through. A USB port provides simple multimedia playback, while an integrated Intel Open Pluggable Specification (OPS) slot provides easy connectivity to external PCs as well.

Product Details

Ultra-narrow Bezel
With a 3.5mm edge-to-edge bezel between combined displays, this commercial display creates stunning, near-seamless images when used in large video wall configurations.

10x10 Daisy-chain Support with DisplayPort or DVI
With integrated DisplayPort and DVI outputs, this display supports up to a 10x10 daisy-chain setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.

Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

LAN Control for Remote Content and Display Settings
The CDX5552 has an integrated RJ45 connection that allows you to remotely transfer multimedia data and manage display content from a PC or laptop which brings great convenience.

OPS Slot Compatibility
Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.

Free Bundled vController Software
Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

RS232 In/Out with IR Pass-through
RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.

Superior Screen Performance
Featuring a 1920 x 1080 full HD resolution and 500-nit brightness, the CDX5552 provides superior screen performance for in-door environments. The display also features wide viewing angles, delivering accurate, vivid colors and consistent color performance with no distortion or fading.

4K Video Support in 2x2 Daisy-chain Configurations
A 3840x2160 signal can be supported across two daisy-chained displays, allowing users to experience incredible 4K video on a 2x2 video wall.

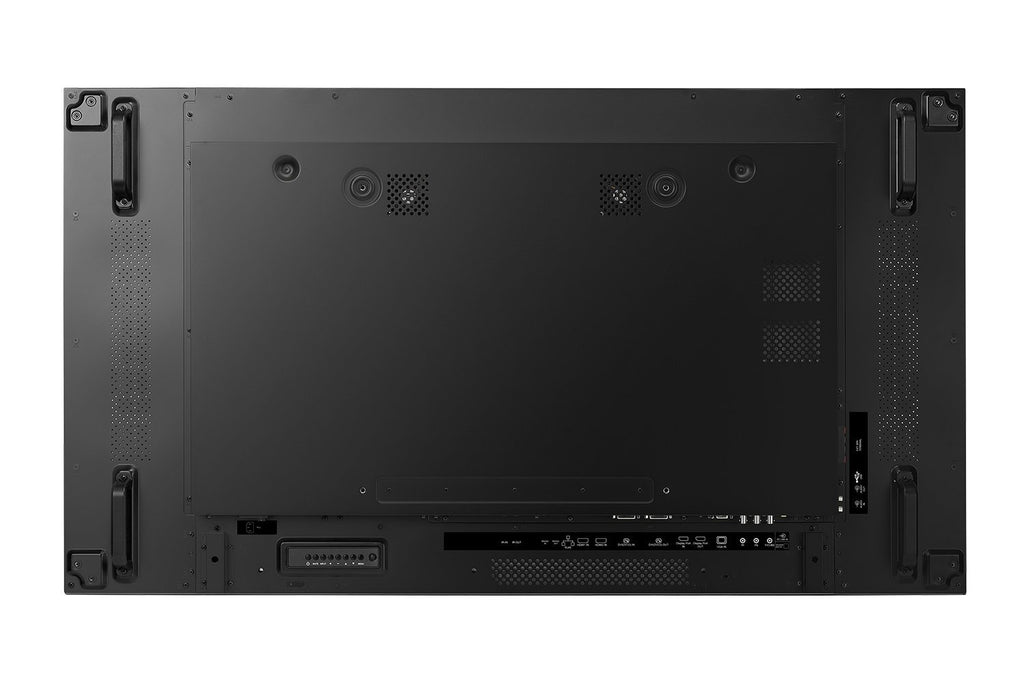

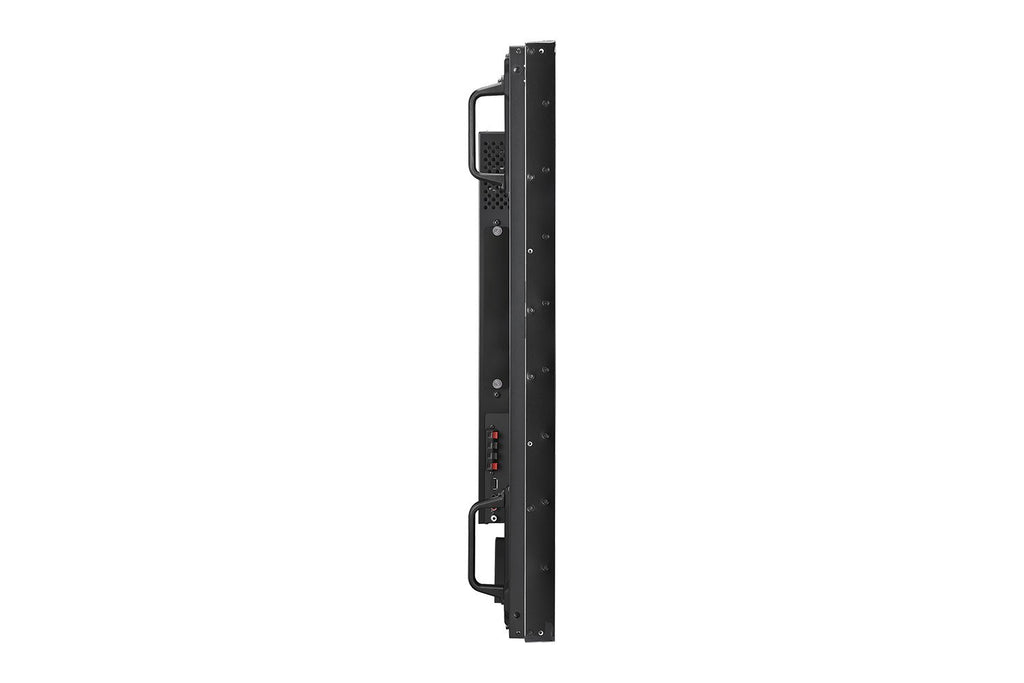

I/O and VESA mount
This display can be VESA-mounted and supports alignment pin setup, for easy installation as well as flexible connectivity.

Specifications

LCD PANEL
Panel Size : 55" (54.64")
Type/ Tech : TFT LCD Module with LED Backlight
Display Area (mm) : 1209.6 x 680.4 mm
Aspect Ratio : 16:9
Resolution : 1920x1080
Colors : 1.06 billion colors
Brightness : 500 nits
Contrast Ratio : 1400:1 Typ.
Response Time : 12 ms
Viewing Angles : 178° / 178°
Backlight : LED Backlight
Backlight Life : 60,000 Hours Typ
Hardness : Hard coating (3H), Anti-glare treatment

INPUT
HDMI : x2 (1.4a)
RGB / VGA : x1
DisplayPort : x1 (1.2)
DVI : x1
Audio : PC audio(3.5 mm) x1, RCA connect x1
CVBS : x1 (shared with component Y)
YPbPr : x1
RS232 : x1
IR Pass Through : x1
OPS : x1

OUTPUT
DisplayPort : x1 (1.2)
DVI : x1
Audio : RCA connect x1
RS232 : x1
IR Pass Through : x1

LAN
RJ45 : x1

USB
Type A : x1 (2.0)

SPEAKERS
10W x2

COMPATIBILITY
RGB PC/HDMI PC : Up to 1920x1080 @60Hz. Refer to timing table
CVBS : 480i
YPbPr : 480i, 480p,720p,1080i,1080p
DisplayPort : 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
HDMI : 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
DVI : 480i, 480p,720p,1080i,1080p

POWER
Voltage : 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption : "On" 185W(typ)
"Power Saving" < 0.5 W
"Off" (Suspend) < 0.5 W

ERGONOMICS
Wall Mount (VESA) : 400 x 400 mm

OPERATING CONDITIONS
Temperature (º C) : 5- 40°C (landscape)
5- 35°C (portrait)
Humidity : 20% ~ 80% non-condensing

OPERATING HOUR
24/7

DIMENSIONS
Physical (W X H X D) : 1213.4 x 684.2 x 95.0 mm (w/o Stand)
1213.4 x 726.2 x 400 mm (with Stand)

REGULATIONS
Standard : CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CE,CB, CU, Energy star 6.0,RoHS, ErP, REACH, PSB, RCM, SASO, EPEAT, UL-MX-CoC,CONUEE
3 Years Limited Warranty
