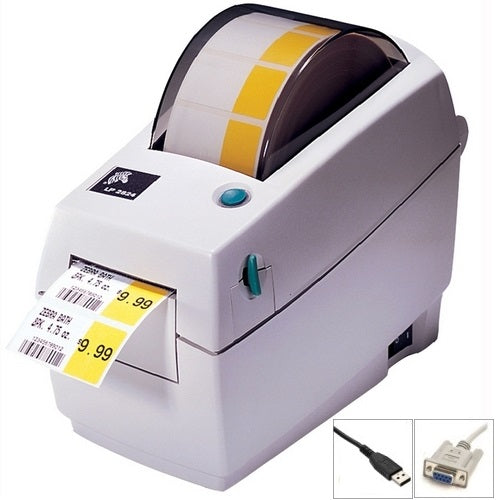

Product Specifications

Printer Specifications

• Print speed: Maximum 4”/102 mm per second

• Print width: 2.2”/56 mm

• Print length: Maximum 39.0”/990 mm

Resolution

• 203 dpi/8 dots per mm

Memory

• 4 MB Flash, 8 MB SDRAM (standard)

• 64 MB Flash with real-time clock for a total of 68 MB (option)

Media Sensors

• Standard: Fixed reflective and transmissive sensors

Media Characteristics

• Media length: 0.38"/9.7 mm to 39"/990 mm

• Media width: 1.00"/25.4 mm to 2.36"/60 mm

• Media width w/ 2" Media Guide: 0.585"/15 mm to 1.44"/36.6 mm

• Maximum media roll size: 5"/127 mm O.D. on a 1.00"/25.4 mm, 1.5"/38 mm I.D. core

• Media thickness: 0.003"/0.08 mm to 0.007"/0.18 mm

• Media types: Roll-fed or fan-fed, die cut or continuous direct thermal labels with or without black mark, tag stock, continuous receipt paper, wristbands, and optional liner-free direct thermal media

Ribbon Characteristics (TLP only)

• Outside diameter: 1.36"/35 mm

• Standard length: 244'/74 m

• Ratio: 1:1 media to roll to ribbon

• Width: 1.33"/33.8 mm to 2.4"/58 mm

• Core (I.D.): 1.00"/25.4 mm, 1.5"/38 mm

Operating Characteristics

Environmental

• Operating Temp: 40° F/5° C to 105° F/41° C

• Storage Temp: -40° F/-40° C to 140° F/60° C

• Operating Humidity: 10% to 90%

Electrical

Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz

Agency Approvals

• Emissions: FCC Part 15, Subpart B, VCCI, C-Tick

• Emissions and Susceptibility: (CE): EN55022 Class-B, EN61000-3-2, EN61000-3-3 and EN55024
• Safety: CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A3 +A4, UL 60950 and C-UL, IRAM NOM, AAMI

Physical Characteristics

Direct Thermal (LP)

• Width: 4.37”/111 mm

• Height: 6.75”/171 mm

• Depth: 8.5”/216 mm

• Weight: 2.7 lbs/1.2 kg

ZebraLink™ Solutions

Software

• Zebra Setup Utilities—Windows utility drivers to set up and configure your Zebra printer

• ZebraDesigner™ Pro—An intuitive, easy-to-use software program for creating complex label designs (option)

• ZebraDesigner—Offers basic features for simple label design

• ZebraNet™ Bridge Enterprise—Centrally manage Zebra printers from a single PC screen anywhere on your global network

• ZebraNet Utilities v7.0—provides enhanced printing, conversion and administration capabilities; message management; and more

• Zebra Universal Driver—The most powerful driver available from Zebra

• Web View—Connect and control Zebra bar code printers via the printer’s Web interface using a common Web browser using ZPL II

• Alert—Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired, or wireless device to minimize downtime

Firmware

• ZBI 2.0—Powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more (option)

• ZBI-Developer—Programming utility makes it dramatically easier for programmers to create and test complex ZBI 2.0 programs and distribute them to the printer (standard with ZBI 2.0)

• ZPL II®—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with tabletop and mobile Zebra printers

• EPL2™—Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications

• EPL—Line Mode support (LP 2824 Plus) enables format compatibility with legacy applications





Communication and Interface Capabilities

• Centronics® parallel (36 pin) connector ports

• RS-232 Serial with USB V1.1 interface

• 10/100 internal Ethernet with USB V1.1 (option)

Bar Code Symbologies

ZPL Bar Code Symbologies

• Bar Code Ratios: 2:1 (non-rotated) and 3:1

• Linear bar codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)

• 2-Dimensional: PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

EPL Bar Code Symbologies

• Linear bar codes: Code 39, Code 128A, B & C (User selectable/Auto), UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet (5, 9, 11, & 13 digit) Japanese Postnet, Plessey (MSI-1), MSI-3, German Post Code, and GS1 DataBar (formerly RSS)

• 2-Dimensional: Maxicode (modes 2,3,4,6), PDF417, MacroPDF417, QR Code, Data Matrix, and Aztec

Fonts/Graphics

• 16 resident expandable ZPL fonts

• One resident scaleable ZPL font

• 5 resident expandable EPL2 fonts

• Supports user-defined fonts and graphics—including custom logos

Options and Accessories

• Dispenser—label peel and present with label taken sensor

• Cutter for use on the following media types with maximum thickness of 0.0007"/0.18 mm and minimum label length of 1.0"/25.4 mm:

• Continuous paper—Most receipt or fax paper is generally acceptable

• Label liner—Cuts on the liner only. Cutter should not be used to cut through labels as adhesives may cause jams

• Tag stock—Tag stock is generally acceptable as long as it is no more than 0.07"/0.18 mm thickness

• 10/100 internal Ethernet

• 64 MB Flash memory with real-time clock

• Media Adaptor Guide (LP only)—Supports wristband media

• Font Packs—Asian and other international font kits

• Liner-free Platen (LP only)—For use with liner-free media

• KDU and KDU Plus—Keyboard display units for stand-alone printing applications

• ZBI 2.0 and ZBI-Developer—field installed


non-condensing R.H.

• Storage Humidity: 5% to 95% non-condensing R.H.
