Zebra QN4-AUNA0M00-00 Portable Barcode Printer

$1,249.33 $1,360.43

SKU: QN4-AUNABM00-00
MODEL: Zebra QN4-AUNA0M00-00 Portable Barcode Printer
Product Description Zebra’s popular QL™ family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ printers extend these QL-platform benefits to the “nth” power. The QLn420's...
Quantity
Add to Wishlist

Product Description

Zebra’s popular QL™ family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ printers extend these QL-platform benefits to the “nth” power.

The QLn420's over-molding and tempered-glass display—coupled with its seamless, one-piece design—make it more durable than ever before. The QLn printer can boost your operation’s productivity through a larger, sharper, easier-to-navigate display; faster, higher-quality printing; a variety of proactive alerts that help keep working printers in employees’ hands; and many convenient charging accessories. And, your IT department will find the QLn printer more intuitive to integrate into existing platforms thanks to Zebra's Link-OS® environment. Other features such as Zebra Global Printing and improved network performance—including 802.11n wireless LAN capability for more robust and reliable connectivity and throughput—also make integration easier.

Product Details

With Zebra’s Link-OS environment— an innovative operating system combining a powerful Multiplatform Software Development Kit (SDK) and software applications—the QLn family of printers is easy to integrate, manage and maintain from any location around the globe. Enabled with Print Touch™, these Link-OS printers offer web page launching features using Near Field Communication (NFC), making it easy to access Zebra’s extensive knowledge base of how-to videos and product support.


• Apple iOS, Android, Windows Mobile and BlackBerry connectivity

• Direct thermal printing of barcodes, text and graphics

• CPCL, EPL™ and ZPL® programming languages

• 256 MB Flash memory supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)

• 5.0 AH removable Li-Ion smart battery

• Built-in battery charger

• Serial and USB ports (both support strain relief)

• Belt clip for unobtrusive and convenient printing

• Black mark and gap media sensing using fixed center-position sensors

• Easy-to-use peel and present mode

• Label present sensor for issuing labels one at a time

• Tear bar for easy dispensing

• Center-loading media locking for variable roll widths

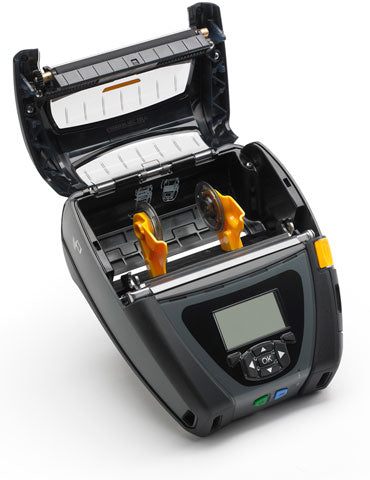

• "Clamshell" design for easy media loading

• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch and Wavelink Avalanche®

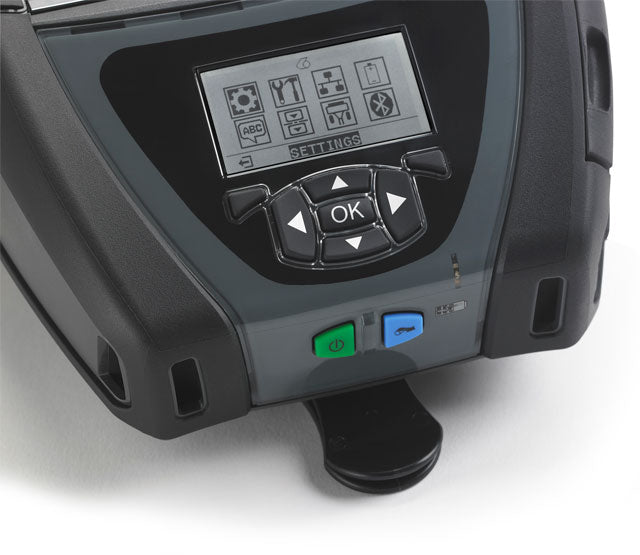

• Large, easy-to-read LCD control panel (240 x 128 pixels)

• LCD can be customized using WML (text and icons)

• Printer alerts on the display, help menus

• Tolerance of multiple drops from 6'/1829 mm to concrete

• IP43 dust- and water-resistance rating (IP54 with soft case)

• 400 MHz 32-bit ARM processor

• XML support

• Supports vertical and horizontal printing

• Printers can be used in any orientation

• QR barcode links to web-based help pages

• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with NFC-enabled devices

• Label odometer

• Real-time clock



Product Specifications

Printer Specifications
Resolution:
203 dpi/8 dots per mm

Memory:
128 MB RAM; 256 MB Flash (standard)

Print Width:
4.1"/104 mm

Print Length:
• Min.: 0.5"/12.7 mm
• Max.: 32"/813 mm

Print Speed:
Up to 4"/102 mm per second

Media Sensors:
Black mark and gap media sensing using fixed center-position
sensors; label present sensor for issuing labels one at a time

Operating Characteristics
Environment:
• Operating temperature: -4° F/-20° C to 122° F/50° C
• Storage/Transport temperature: -13° F/-25° C to 158° F/65° C
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 10% to 90% non-condensing

Agency Approvals:
• Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950,
EN55024 and VCCI class B
• Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4,
and EN61000-4-5
• Safety: CE, UL, TÜV, CSA

Media Characteristics
Media Width:
2.0"/51 mm to 4.4"/112 mm

Media Length:
0.5"/12.7 mm to 32"/813 mm or continuous

Maximum Media Roll Size:
2.6"/66 mm O.D. on a 0.75"/19 mm or
1.375"/34.9 mm I.D. core

Media Thickness:
3.2 mil to 7.5 mil

Media Types:
Die-cut labels and tags, linerless labels, receipt paper, black bar
and gap sensing

Physical Characteristics:
• Width: 6.5"/165 mm
• Height: 7.35"/187 mm with beltclip
• Depth: 3.25"/82.5 mm
• Weight: 2.45 lbs/1.1 kg with battery

Link-OS Solutions
Software Tools:
• Document Design: Quickly design a customized print solution
using your business data and Zebra's intuitive, plug-and-print
design tools.
• Device Integration: Zebra offers apps and products designed
to help you integrate Zebra devices into your existing systems.
• Device Management: Manage your print operations locally and
globally with Zebra's suite of device management tools.
• Developer Tools: Provides you the tools you need to create
your own apps, including documentation, source code, programming
languages, templates and more.

Firmware:
• CPCL, EPL and ZPL programming languages
• ZBI 2.x™—powerful programming language that lets printers run
standalone applications, connect to peripherals, and much more

Fonts/Graphics/Symbologies
Fonts and Character Sets:
• Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate
Bold Condensed**)
• Optional Fonts: downloadable bitmapped/ scalable fonts
• International Character Sets (optional): Chinese 16 x 16
(traditional), 16 x 16 (simplified); Japanese 16 x 16, 24 x 24;
Korean Mincho


CPCL Barcode Symbologies:
• Barcode ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
• Linear barcodes: Codabar (NW-7), Code 39, Code 93, Code 128,
EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5,
UCC/EAN128, UPC-A, UPC-E, 2 and 5 digit add-on
• Two-Dimensional: Aztec, MSI/Plessey, FIM Postnet, Data Matrix,
GS1 DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR
Code, TLC39

Communication and Interface Capabilities:
• ZebraNet 802.11a/b/g/n radio with support for:
–– WEP (PSK only), TKIP and AES encryption –– WPA and WPA2
–– 802.1x (with WPA or WPA2 only)
–– EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP –– 802.11d and 802.11i
–– Simultaneous Bluetooth 3.0 dual radio –– Wi-Fi Certification
–– Fast roaming using PMK caching, CCKM or Fast Session resumption
• Bluetooth 3.0 radio
–– Security modes 1 – 4
–– "Made for iPod/iPhone/iPad" certified –– Key Bonding
–– 10/100 Ethernet support (via charging cradle)

Cabled Communications Specifications:
• USB 2.0 full-speed interface (12Mbps)
• Mini-B connector with optional strain relief
• Serial interface: 14-pin RS-232C port for communication to
terminal or other host up to 115.2Kbps

Options and Accessories
Charging Options:
• Charge the battery inside the printer using:
–– AC adapter
–– Charging and Ethernet cradle
–– Vehicle cradle (DC power)
• Charge the battery outside the printer using:
–– Smart charger
–– Quad charger

Optional Features and Accessories:
• Linerless printing (with silicone platen roller only)
• 8-18VDC power supply with cigarette lighter adapter
• ZBI 2.x
• Spare batteries
• AC adapter
• SC2 smart battery single charger
• Quad battery charger
• QLn4-EC charging and Ethernet cradle
• Shoulder strap
• Forklift mount accessories
–– Heavy-duty mount with fanfold tray
–– Plate for RAM-arm mounting
–– Cradle for easy attach/detach
–– DC converters for powering and charging from forklift batteries
• Hand strap
• Soft case (IP54 rating when used)
• Serial and USB cables with strain relief
• Forklift battery eliminator
