Trendnet 48-Port Gigabit Web Smart PoE+ Switch

$945.46 $1,187.12

SKU: TPE_4840WS
MODEL: 48-Port Gigabit Web Smart PoE+ Switch
Product Description TRENDnet’s 48-Port Gigabit Web Smart PoE+ Switch, model TPE-4840WS, offers 24 x Gigabit PoE+ ports (Ports 1-24 802.3at), 24 x Gigabit ports (Ports 25-48), 4 x shared SFP slots (shared with ports 45-48), and a PoE Power budget of 370 Watts. This IPv6 ready switch offers advanced traffic...
Quantity
Add to Wishlist

Product Description

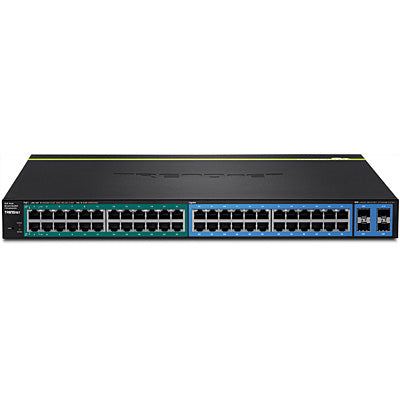

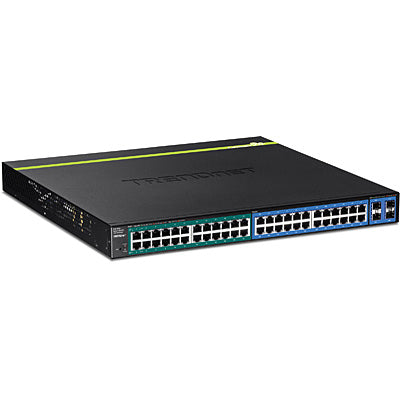

TRENDnet’s 48-Port Gigabit Web Smart PoE+ Switch, model TPE-4840WS, offers 24 x Gigabit PoE+ ports (Ports 1-24 802.3at), 24 x Gigabit ports (Ports 25-48), 4 x shared SFP slots (shared with ports 45-48), and a PoE Power budget of 370 Watts. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

Product Details

Hardware Design
Provides 24 x Gigabit PoE+ ports (Ports 1-24 802.3at), 24 x Gigabit ports (Ports 25-48), 4 x shared SFP slots (shared with ports 45-48), a PoE Power budget of 370 Watts, and includes rackmount brackets.



Smart Fan
Smart fan saves energy by varying fan speed and use based on cooling needs.



IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.



Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.



Troubleshooting
Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.



Access Controls
Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls.



Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.



  • TPE-4840WS (Version v1.0R)
  • 24 x Gigabit PoE+ ports
  • 24 x Gigabit ports
  • 4 x shared SFP slots
  • 370 Watt PoE budget
  • 96 Gbps switching capacity
  • Private/Voice VLAN, QoS, and bandwidth controls
  • Smart fans reduce energy consumption

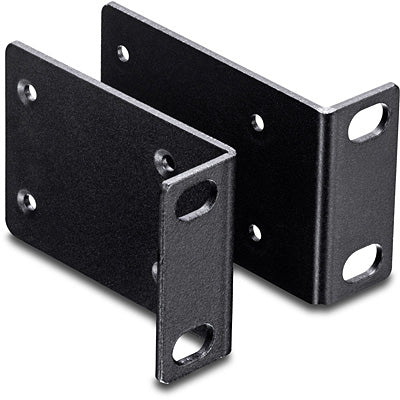

  • Rack mount brackets included

Product Specifications


Standards

IEEE 802.1DIEEE 802.1QIEEE 802.1SIEEE 802.1XIEEE 802.1pIEEE 802.1wIEEE 802.1abIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.3abIEEE 802.3adIEEE 802.3afIEEE 802.3atIEEE 802.3az

Device Interface
24 x Gigabit PoE+ ports (ports 1-24)24 x Gigabit ports (ports 25-48)4 x shared SFP slots (shared with ports 45 - 48)LED indicators

Data Transfer RateEthernet:
10 Mbps (half duplex), 20 Mbps (full duplex)Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)Gigabit Ethernet: 2000 Mbps (full duplex)

PerformanceSwitch fabric:
96 GbpsRAM buffer: 1 MBMAC Address Table: 16K entriesJumbo Frames: 10 KBHOL Blocking PreventionForwarding rates: 71.42 Mpps (64-byte packet size)

ManagementHTTP/HTTPS (SSL v2/3 TLS) Web based GUISNMP v1, v2c, v3RMON v1Static Unicast MAC AddressEnable/disable 802.3az power savingLLDPVirtual cable testIPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB
MIB II RFC 1213Bridge MIB RFC 1493Bridge MIB Extension RFC 2674SNMPv2 MIB RFC 1907Ethernet Interface MIB RFC 1643Ethernet–like MIB RFC 2863Interface Group MIB RFC 2233MIB Traps Convention RFC 1215RMON MIB RFC 1757, RFC 2819802.1p MIB RFC 2674RADIUS Client Authentication MIB RFC 2618LLDP-MIB IEEE 802.1abPing MIB RFC 2925, RFC 4560

Spanning Tree
IEEE 802.1D STP (Spanning Tree protocol)IEEE 802.1w RSTP (Rapid Spanning Tree protocol)IEEE 802.1s MSTP (Multiple Spanning Tree protocol)Link AggregationStatic

Link Aggregation
802.3ad Dynamic LACPQuality of Service

(QoS)
802.1p Class of Service (CoS)DSCP (Differentiated Services Code Point)Bandwidth control per portQueue scheduling: strict priority, Weighted Round Robin (WRR)

VLAN
Multiple management VLAN assignmentAsymmetric VLAN802.1Q tagged VLANDynamic GVRPUp to 256 VLAN groups, ID range 1-4094Private
VLAN (protected ports)Voice VLAN (10 user defined OUIs)

Multicast
IGMP Snooping v1, v2, v3 (per VLAN)Static Multicast AddressUp to 256 multicast entries

Port Mirror
RX, TX, or bothOne to oneMany to one

Access Control
802.1X Port-Based Network Access Control, RADIUS, TACACS+Local Dial In User AuthenticationDHCP Snooping (per VLAN)Loopback DetectionDuplicated Address DetectionTrusted HostDenial of Service (DoS)ACL IPv4 L2-L4 & IPv6MAC AddressVLAN IDEther Type (IPv4 only)IP Protocol 0-255TCP/UDP Port 1-65535802.1pDSCP (IPv4 only)IPv6 Address (IPv6 only)

Compatibility
Optional Software Utility:
Windows® 8.1, 8, 7, Vista, XP, Windows® 2008/2003 Server

Power over EthernetTotal PoE power budget:
370 WattsPoE+ ports 1 – 24: up to 30 Watts per portPoE over current protectionPoE short circuit protection

PowerInput: 100 – 240 V AC, 50/60 Hz, internal power supplyConsumption: 55.6 Watts (max. with no connected PoE devices)Consumption: 425.6 Watts (max. with total 370W PoE budget )MTBF318,350 hours

Operating Temperature-5 – 45 °C (23 – 113 °F)Operating HumidityMax. 90% non-condensing

Dimensions440 x 430 x 44 mm (17.3 x 16.9 x 1.7 in.)

Rack mountable 1U height

Weight
6.5 kg (14.3 lbs.)

Certifications CEFCCUL

3 years Limited warranty
