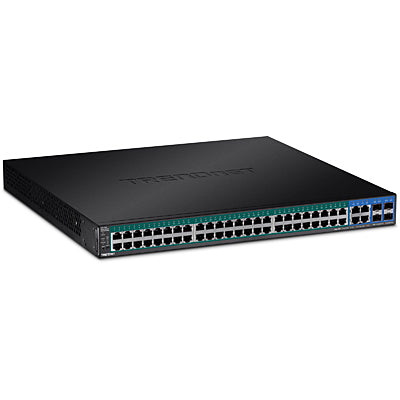

Trendnet 52-Port Gigabit Web Smart PoE+ Switch

$1,108.26 $1,391.43

SKU: TPE_5240WS
MODEL: 52-Port Gigabit Web Smart PoE+ Switch
Product Description TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch, model TPE-5240WS, delivers advanced management features with a 104Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5240WS...
Quantity
Add to Wishlist

Product Description


TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch, model TPE-5240WS, delivers advanced management features with a 104Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5240WS provides 48 gigabit PoE+ ports with a total power budget of 370W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.

Product Details

Web Smart Management
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.


Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.



PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.



Hardware Design

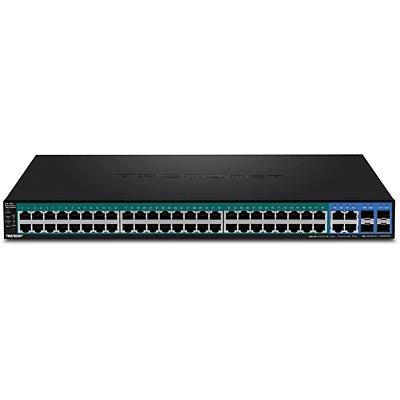

Provides 48 gigabit PoE+ ports, 4 shared gigabit ports (RJ-45 or SFP), a 104Gbps switching capacity, a built-in power supply, and rackmount brackets.



PoE Power
Supplies up to 30W of PoE+ power per port with a total power budget of 370W.



IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.



Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting



Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls



Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions



48 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45 or SFP)
370W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private and Voice VLAN support
Smart Fan
104Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support

Product Specifications



Standards
IEEE 802.1dIEEE 802.1pIEEE 802.1QIEEE 802.1sIEEE 802.1wIEEE 802.1XIEEE 802.1abIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.3abIEEE 802.3adIEEE 802.3afIEEE 802.3atIEEE 802.3az

Device Interface
48 x Gigabit PoE+ ports4 x Shared Gigabit ports (RJ-45/SFP)LED indicators

Data Transfer RateEthernet:
10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)Gigabit Ethernet: 2000Mbps (full duplex)
PerformanceSwitch fabric:
104GbpsRAM buffer: 1.5MBMAC Address Table: 16K entriesJumbo Frames: 10KBHOL Blocking PreventionForwarding rate: 77.4Mpps (64-byte packet size)

Management
HTTP/HTTPS (SSL v2/3 TLS) Web based GUISNMP v1, v2c, v3RMON v1Static Unicast MAC AddressEnable/disable 802.3az Power SavingLLDP and LLDP-MEDVirtual Cable Diagnostics TestIPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB
IP FORWARD TABLE MIB RFC 1354RMON MIB RFC 1271IPV4 MIB RFC 1213IPV6 MIB RFC 2465GVRP MIB IEEE 802.1Q-VLANLA MIB IEEE 802.3adLLDP MIB IEEE 802.1ABIGMP SNOOPING MIB RFC 2933MLD SNOOPING MIB RFC 3019PRIVATE VLAN MIB IEEE 802.1QDHCPSNOOP MIB RFC 2026QOS MIB RFC 4323SNMP MIB RFC 3415STP MIB RFC 4318PNAC MIB IEEE 802.1xVLAN MIB IEEE 802.1qDNS MIB RFC 1611ACL MIBBANDWIDTH CTRL MIBLBD MIBMIRROR MIBIPV6 NEIGHBOR MIBSNTP MIBSTORM CTRL MIBSTATISTICS MIBTool MIBVOICE VLAN MIBDOS MIB

Spanning Tree
IEEE 802.1D STP (Spanning Tree protocol)IEEE 802.1w RSTP (Rapid Spanning Tree protocol)IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation
Static Link Aggregation802.3ad Dynamic LACPQuality of Service

(QoS)802.1p Class of Service (CoS)DSCP (Differentiated Services Code Point)Bandwidth Control per portQueue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN
Multiple management VLAN assignmentAsymmetric VLAN802.1Q Tagged VLANDynamic GVRPUp to 256 VLAN groups, ID Range 1-4094Private VLAN (Protected Ports)Voice VLAN (10 user defined OUIs)

Multicast
IGMP Snooping v1, v2, v3 (per VLAN)Static Multicast AddressUp to 256 multicast entries

Port Mirror
RX, TX, or BothOne to oneEncryption802.1X Port-Based Network Access Control , RADIUS, TACACS+Local Dial In User AuthenticationDHCP Snooping (per VLAN)Loopback DetectionDuplicated Address DetectionTrusted HostDenial of Service (DoS)ACL IPv4 L2-L4 & IPv6MAC AddressVLAN IDEther Type (IPv4 only)IP Protocol 0-255TCP/UDP Port 1-65535802.1pDSCP (IPv4 only)IPv6 Address (IPv6 only)

CompatibilityOptional Software Utility:
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Special FeaturesPoE+IPv6802.3az power savingRack mountable

Power

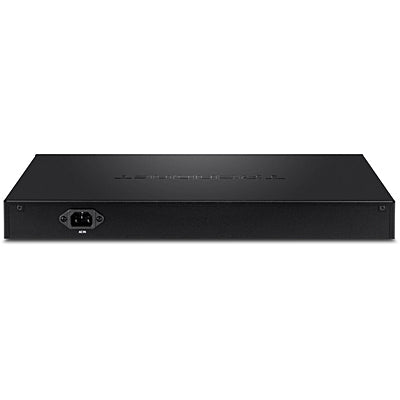

Input: 100 - 240V AC, 50/60Hz, internal power supplyConsumption: 479W (max.)Power Budget: 370WFan/AcousticsQuantity: 3Noise Level: 52.4 dBA (max.)MTBF239,897 hours

Operating Temperature
-5 – 50°C (23 - 122°F)

Operating HumidityMax.
95% non-condensing

Dimensions
440 x 430 x 44mm (17.3 x 17 x 1.74 in.)

Rack mountable 1U height

Weight
6.12kg (13.5 lbs.)

Certifications
CEFCCUL

3 years Limited warranty
