Trendnet AC1200 Dual Band PoE Access Point

$150.09 $200.35

Review this product

SKU: TEW-821DAP

MODEL: AC1200 Dual Band PoE Access Point

Product Description TRENDnet’s high performance AC1200 Dual Band Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. The included Windows-based software utility manages...

Quantity

Add to Wishlist

Product Description

TRENDnet’s high performance AC1200 Dual Band Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. The included Windows-based software utility manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low profile blends into most environments and a mounting plate eases installation.

Product Details

Access Point Flexibility
Concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.

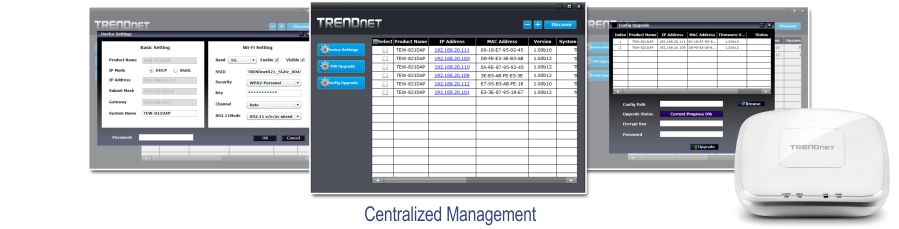

Centralized Management
The included Windows based software utility manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time.

Easy Installation
Saves remote location installation time and costs with Gigabit Power over Ethernet (PoE) support and a convenient mounting plate.

Multi-Language
Multi-Language Interface: English, Spanish, French, German, and Russian

Power over Ethernet (PoE)
Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)

Concurrent Dual Band
AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands

Multi-Mode Support
Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently

AP Utility
The included Windows-based utility reduces WiFi configuration and setup time

Gigabit Port
Gigabit PoE LAN port maintains high performance connections to the wired network

Wireless Coverage
Extended wireless coverage with MIMO antenna technology

Encrypted Wireless
Support for wireless encryption of up to WPA2

Band Steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band

WiFi Traffic Shaping
Manage traffic allocation per VLAN for each band separately

Multiple SSIDs
Create up to 8 SSIDs per band (16 total)

IPv6
IPv6 network support

Low Profile
Off white low profile shape blends into most environments

LED Control
Further reduce product visibility by turning off LED indicators

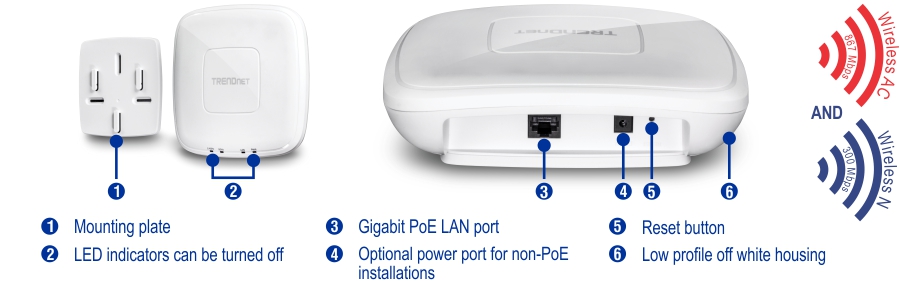

Mounting Plate
Mounting plate reduces installation time

Product Specifications

Standards
IEEE 802.1QIEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3afIEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n (up to 300 Mbps)IEEE 802.11ac (up to 867 Mbps)

Hardware Interface

1 x PoE Gigabit LAN portPower port (optional non-PoE installation)Reset buttonLED indicatorsMounting plate

Special Features

IP30 rated housing (with mounting plate installed)Concurrent Dual bandBand SteeringWiFi traffic shaping802.1Q VLAN assignment per SSIDIPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)Multi-Language interface, English, French, Spanish, German, RussianLEDs on/offCaptive Portal (External Coovachilli server authentication)Internal Captive Portal (Local user account authentication and customizable portal page)802.11k roaming assistance supportRSSI Scanner (Client signal strength and tolerance)Airtime Fairness

Operation ModesAccess PointClientWDS APWDS BridgeWDS StationRepeater

Management/Monitoring

Web based managementSoftware utilitySNMP v1/v3STPEvent loggingPing testTracerouteCLI

Utility OS CompatibilityWindows® 10, 8.1, 8, 7, Vista, XP

Access ControlWireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUSMAC filterMaximum client limit

QoS WMMTraffic shaping per

SSIDSSIDUp to 8 SSIDs per wireless band (16 total)

Frequency

2.4 GHz: 2.412 – 2.472 GHz5 GHz: 5.180 – 5.8525 GHz

Wireless Channels

2.4 GHz: FCC: 1 – 11, ETSI: 1 – 135 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)*

*ModulationDBPSK/DQPSK/CCK for DSSS techniqueBPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique

Antenna Gain

2.4 GHz: 2 x 4 dBi5 GHz: 2 x 4 dBi

Wireless Output Power/Receiving Sensitivity

802.11a: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -65 dBm (typical) @ 54 Mbps 802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max), IC: 23 dBm (Max.) / -83 dBm (typical) @ 11 Mbps 802.11g: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -65 dBm (typical) @ 54 Mbps 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -64 dBm (typical) @ 300 Mbps 2.4 GHz802.11n: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -61 dBm (typical) @ 300 Mbps 5 GHz802.11ac: FCC: 15 dBm (Max.), CE: 22 dBm (Max.), IC: 19 dBm (Max.) / -51 dBm (typical) @ 866 Mbps

Power

12 V / 1 A consumption: 9.6 Watts Max.

Operating Temperature

0 – 40 °C (32 – 104 °F)

Operating Humidity Max.

95 % non-condensingCertificationsCEFCC

Dimensions

187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)

Weight

408 g (14.4 oz.)

3 years Limited warranty
