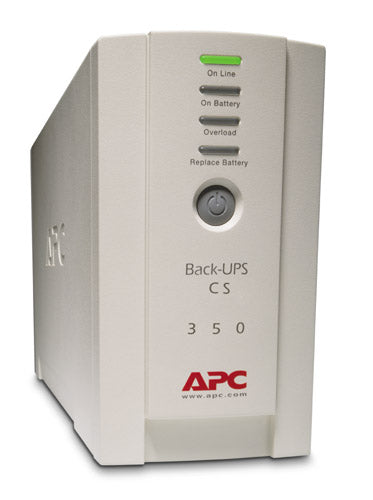

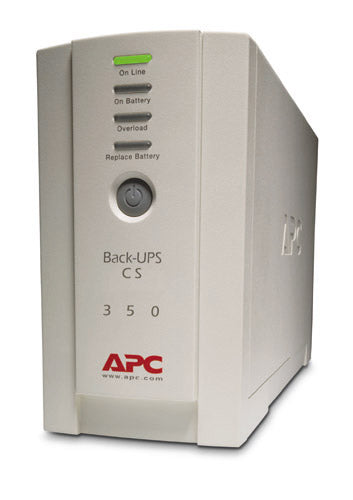

APC BACK-UPS CS 350VA USB/SERIAL 230V

$122.20 $132.59

SKU: BK350EI/1000196/RBC2
MODEL: BACK-UPS CS 350VA USB/SERIAL 230V
Product Description: Battery Backup & Surge Protector for Electronics and ComputersIncludes : CD with software , Documentation CD , Qty 1 - Detachable 1.2 m IEC power cord , Qty 1 - Detachable 1.8 m IEC power cord , Telephone Cable , USB cable , Warranty cardSerial connectivity Provides management...
Quantity
Add to Wishlist

Product Description:

Battery Backup & Surge Protector for Electronics and Computers

Includes : CD with software , Documentation CD , Qty 1 - Detachable 1.2 m IEC power cord , Qty 1 - Detachable 1.8 m IEC power cord , Telephone Cable , USB cable , Warranty card

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Product Details:

Back-UPSFeatures & Benefits

Manageability

Audible alarms

Provides notification of changing utility power and UPS power conditions

LED status display

Quickly understand unit and power status with visual indicators.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Availability

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Marketing Features

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Product Specifications:

Output

Output power capacity 210Watts / 350VA

Max Configurable Power (Watts) 210Watts / 350VA

Nominal Output Voltage 230V

Output Frequency (sync to mains) 47 - 63 Hz

Output Frequency (not synced) 50/60 Hz +/-1 Hz

Topology Standby

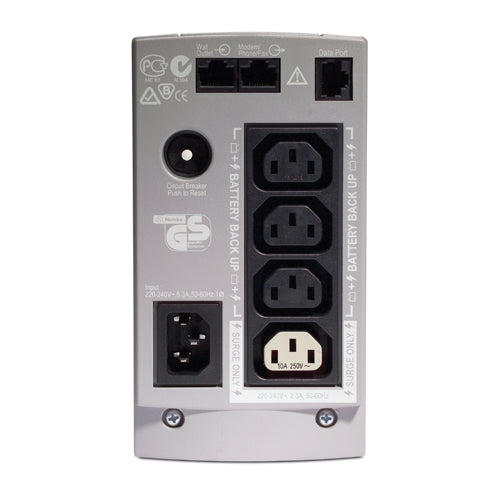

Output Connections
(2) IEC Jumpers (Battery Backup)
(3) IEC 320 C13 (Battery Backup)
(1) IEC 320 C13 (selector_surgetitle)
Transfer Time    6ms typical : 10ms maximum

Input

Nominal Input Voltage 230V

Input frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections IEC-320-C14 inlet

Cord Length 1.83meters

Input voltage range for main operations 180 - 266V

Number of Power Cords 2

Maximum Input Current 7.0A

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 6hour(s)

Replacement Battery RBC2

Expected Battery Life (years) 4 - 6

RBC Quantity 1

Runtime

View Runtime Graph View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s) Optional

Simple Signalling RS232 cable , USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating 310Joules

Data Line Protection

Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 165mm , 16.5cm

Maximum Width 91mm , 9.1cm

Maximum Depth 284mm , 28.4cm

Net Weight 6.32kg

Shipping weight 7.05kg

Shipping Height 178mm , 17.8cm

Shipping Width 241mm , 24.1cm

Shipping Depth 368mm , 36.8cm

Color Beige

Master Carton Units 2.0

Units per Pallet 48.0

SCC Codes 1073130401634 9

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95 %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95 %

Storage Elevation 0-15000meters

Online thermal dissipation 19.0BTU/hr

Conformance

Approvals

C-tick, CE, EN 50091-1, EN 50091-2, ENERGY STAR V1.0 (EU), GOST, VDE

Equipment protection policy

Lifetime : 100000 Euro, Lifetime : 50000 GBP

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS Compliant
