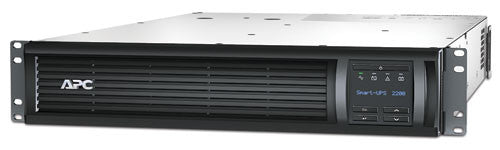

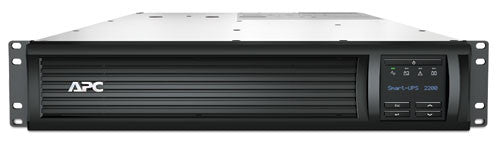

APC Smart UPS 220VA LCD RM 2U 230V

$1,858.15 $1,888.28

SKU: SMT2200RMI2U
MODEL: Smart UPS 220VA LCD RM 2U 230V
Product Description Cold-start capable Provides temporary battery power when the utility power is out. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection....
Quantity
Add to Wishlist
Product Description
  • Cold-start capable
  • Provides temporary battery power when the utility power is out.
  • Energy meter
  • Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
  • Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
  • Reduces utlility costs, generates less heat.
  • Intuitive LCD interface
  • Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
  • Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
  • Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot
  • Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group
  • Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartSlot
  • Customize UPS capabilities with management cards.
  • StruxureWare Data Center Expert compatible
  • Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging
  • Prolongs battery life by regulating the charge voltage according to battery temperature

Product Details

 Adaptability

  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Marketing Features
  • Avoids costly power problems by keeping your IT equipment and data safe and available
    Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
  • Peace of mind that comes with full equipment compatibility and reliability of a leader
    Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
  • Smarter productivity  with ability to tailor to your specific application needs
    Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
  • Save time with easy and convenient remote accessibility
    Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
    Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Safety
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
  • Network manageable
    Provides remote power management of the UPS over the network.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • Audible alarms
    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Serviceability
  • Predictive failure notification
    Provides early-warning fault analysis ensuring proactive component replacement.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Resettable circuit breakers
    Enables a quick recovery from overload events.
Availability
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

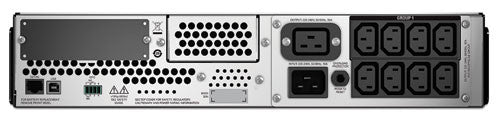

Output power capacity 1.98 KWatts / 2.2 kVAMax Configurable Power (Watts) 1.98 KWatts / 2.2 kVANominal Output Voltage 230VOutput Voltage Note Configurable for 220 : 230 or 240 nominal output voltageOutput Frequency (sync to mains) 50/60Hz +/- 3 HzOther Output Voltages 220, 240Topology Line InteractiveWaveform type Sine waveOutput Connections (8) IEC 320 C13 (Battery Backup) (3) IEC Jumpers (Battery Backup) (1) IEC 320 C19 (Battery Backup) Transfer Time 4ms typical : 8ms maximum Input Nominal Input Voltage 230VInput frequency 50/60 Hz +/- 3 Hz (auto sensing)Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16PCord Length 2metersInput voltage range for main operations 160 - 286VInput voltage adjustable range for mains operation 151 - 302VNumber of Power Cords 1Other Input Voltages 220, 240 Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproofTypical recharge time 3hour(s)Replacement BatteryRBC43 Expected Battery Life (years) 3 - 5RBC Quantity 1Battery Volt-Amp-Hour Capacity 509RuntimeView Runtime Graph View Runtime Chart EfficiencyView Efficiency Graph Communications & Management Interface Port(s) USBControl panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control consoleAudible Alarm Alarm when on battery : distinctive low battery alarm : configurable delaysAvailable SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 375Joules Physical Maximum Height 86mm , 8.6cmMaximum Width 480mm , 48.0cmMaximum Depth 683mm , 68.3cmRack Height 2UNet Weight 42.31kgShipping weight 49.73kgShipping Height 254mm , 25.4cmShipping Width 600mm , 60.0cmShipping Depth 980mm , 98.0cmUnits per Pallet 8.0 Environmental Operating Environment 0 - 40 °C Operating Relative Humidity 0 - 95 % Operating Elevation 0-3000metersStorage Temperature -15 - 45 °C Storage Relative Humidity 0 - 95 % Storage Elevation 0-15000metersAudible noise at 1 meter from surface of unit 55.0dBAOnline thermal dissipation 215.0BTU/hr Conformance Approvals CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), GS Mark, IRAM, RCM, VDE, WEEEStandard warranty 3 years repair or replace (excluding battery) and 2 year for battery Sustainable Offer Status RoHS CompliantREACH REACH: Contains No SVHCsPEP Available in Documentation tab EOLI Available in Documentation tab
3 years repair or replace (excluding battery) and 2 year for battery
