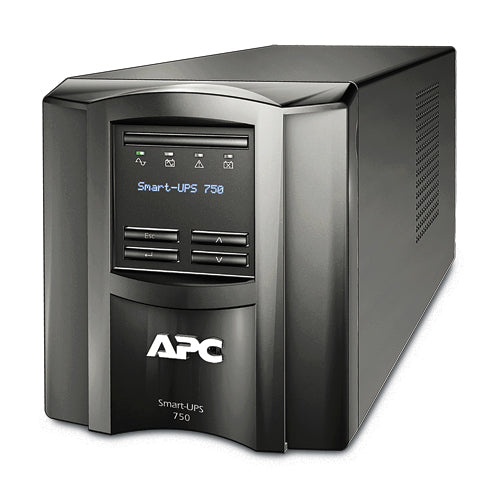

APC Smart-UPS 750VA LCD 230V

$513.56 $558.82

SKU: SMT750I/1214534/RBC48
MODEL: Smart-UPS 750VA LCD 230V
Product Description:Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.Includes : CD with software , Documentation CD , Smart UPS signalling RS-232 cable , USB cableCold-start capable Provides temporary battery power when the utility power...
Quantity
Add to Wishlist

Product Description:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes : CD with software , Documentation CD , Smart UPS signalling RS-232 cable , USB cable

Cold-start capable

Provides temporary battery power when the utility power is out.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utlility costs, generates less heat.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

SmartSlot

Customize UPS capabilities with management cards.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Product Details:

Smart-UPSFeatures & Benefits

Adaptability

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.


Availability

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.


Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.


Manageability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Serial connectivity

Provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Network manageable

Provides remote power management of the UPS over the network.


Serviceability

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.


Marketing Features

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems












Product Specifications:

Output power capacity 500Watts / 750VA

Max Configurable Power (Watts) 500Watts / 750VA

Nominal Output Voltage 230V

Output Voltage Distortion Less than 5% at full load

Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages 220, 240

Topology Line Interactive

Waveform type Sine wave

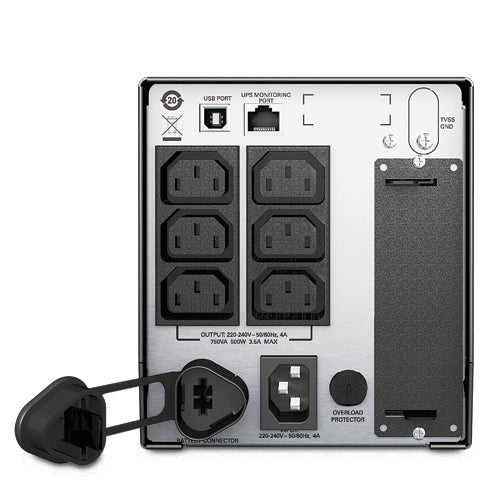

Output Connections

(2) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Transfer Time 4ms typical : 8ms maximum


Input

Nominal Input Voltage 230V

Input frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections IEC-320 C14

Cord Length 1.83meters

Input voltage range for main operations 160 - 280V

Input voltage adjustable range for mains operation 151 - 302V

Number of Power Cords 1

Other Input Voltages 220, 240


Batteries & Runtime

Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 3hour(s)

Replacement BatteryRBC48

Expected Battery Life (years) 3 - 5

RBC Quantity 1

Runtime

View Runtime Graph

View Runtime

Chart Efficiency

View Efficiency Graph


Communications & Management

Interface Port(s) SmartSlot , USB

Control panel Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) Optional

Available SmartSlot™ Interface Quantity 1


Surge Protection and Filtering

Surge energy rating 540Joules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

Maximum Height 157mm , 15.75cm

Maximum Width 138mm , 13.8cm

Maximum Depth 358mm , 35.81cm

Net Weight 13.18kg

Shipping weight 14.23kg

Shipping Height 301mm , 30.1cm

Shipping Width 278mm , 27.8cm

Shipping Depth 499mm , 49.9cm

Color Black

Units per Pallet 24.0


Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95 %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95 %

Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 40.0dBA

Online thermal dissipation 90.0BTU/hr


Conformance

Approvals

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 year for battery


Sustainable Offer Status

RoHS Compliant

REACH REACH: Contains No SVHCs

PEP Available in Documentation tab

EOLI Available in Documentation tab

Other Environmental Compliance China RoHS
