SGD

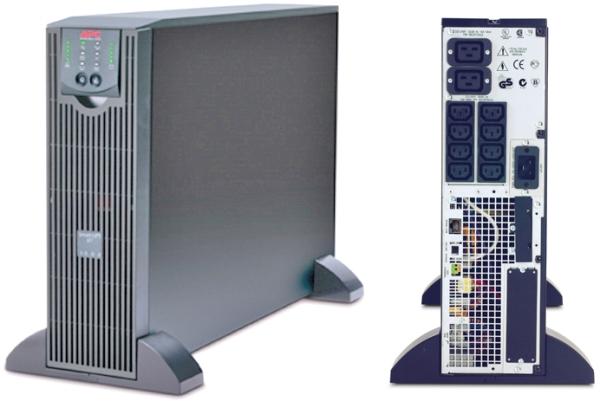

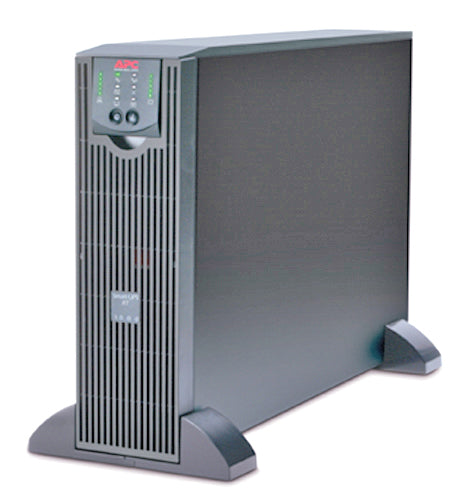

APC Smart-UPS RT 3000VA 230V

$2,590.21 $2,820.52

SKU: SURTD3000XLI/1000529/RBC44
MODEL: Smart-UPS RT 3000VA 230V
Product description: High density, double-conversion on-line power protection with scalable runtime Includes : CD with software , Smart UPS signalling RS-232 cable , User Manual Smart-UPS On-Line Features & Benefits Product Details: Adaptability Flash upgradeable firmwareInstall maintenance releases of firmware remotely using FTP.Plug-and-Play external batteriesEnsures clean, uninterrupted power to the...
Quantity
Add to Wishlist

Product description:

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Smart UPS signalling RS-232 cable , User Manual

Smart-UPS On-Line Features & Benefits

Product Details:

Adaptability

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Availability

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime

Allows additional run time to be quickly added as needed.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

SmartSlot

Customize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable

Provides temporary battery power when the utility power is out.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery

.Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Marketing Features

Save time with easy and convenient remote accessibility

.Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Product Specifications:

Output power capacity 2.1 KWatts / 3.0 kVA

Max Configurable Power (Watts) 2.1 KWatts / 3.0 kVA

Nominal Output Voltage 230V

Output Voltage Note  Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 3%

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1

Other Output Voltages 220, 240

Load Crest Factor 3 : 1

Topology Double Conversion Online

Waveform type Sine wave

Output Connections
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Bypass Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage 230V

Input frequency 50/60 Hz +/- 5 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length 2.44meters

Input voltage range for main operations 160 - 280V

Input voltage adjustable range for mains operation 100 - 280 (half load)V

Number of Power Cords 1

Other Input Voltages 220, 240


Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules 2

Typical recharge time 2.5hour(s)

Expected Battery Life (years) 3 - 5

RBC Quantity 1

Extendable Run Time 1

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph


Communications & Management

Interface Port(s) RJ-45 Serial , Smart-Slot

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm Alarm

when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO) Yes

Available SmartSlot™ Interface Quantity 1


Surge Protection and Filtering

Surge energy rating 555JJoules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

Maximum Height 432mm , 43.2cm

Maximum Width 130mm , 13.0cm

Maximum Depth 660mm , 66.0cm

Rack Height 3U

Net Weight 54.55kg

Shipping weight 63.64kg

Shipping Height 347mm , 34.7cm

Shipping Width 603mm , 60.3cm

Shipping Depth 980mm , 98.0cm

Color Black

Master Carton Units 1.0

Units per Pallet 6.0


Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95% non-condensing %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95% non-condensing %

Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 55.0dBA

Online thermal dissipation 609.0BTU/hr

Protection Class IP 20


Conformance

Approvals

BSMI, C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, JEON, UL 1778, VCCI, VDE

Standard warranty 2 years repair or replace


Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

Available in Documentation tab

EOLI

Available in Documentation tab







http://www.apc.com/support/service/in_warranty_service.cfm In-Warranty Services APC products are backed by comprehensive warranties and policies to afford basic peace of mind right out of the box. Most APC products ship in the United States and Canada with a standard two-year comprehensive warranty. Depending on your location or product you may instead have a one- or three-year warranty. For more information, please consult your accompanying product documentation. Extended warranties and service programs are also available click here for details. Repair services are not available in all locations. Contact your local APC Technical Support Engineer (on-line/via phone) to find out more. Standard In-Warranty Services Customers having difficulty with APC products should attempt to solve those problems through APC's Technical Support Problem Escalation Process. 1. Look for a solution in APC's Technical Support Knowledge Base 2. Contact an APC Technical Support Engineer on-line 3. Contact an APC Technical Support Engineer via phone In-warranty service programs cover problems as defined in the user's manual of installation and operation. For in-warranty service, customers have several options. Please refer to the owner's manual of your product for individual length of warranty. Who Should Use Standard In-Warranty Service Customers who require service during the defined factory warranty period of operation should use in-warranty service. How Does Standard In-Warranty Service Work Defective products may be returned to APC by the customer for replacement or repair during the standard warranty period. Defective products will be replaced or repaired and returned to the customer. Customers who must have original units back rather than replacement units due to assigned asset tags and set depreciation schedules must declare such a need at first contact with APC. It will be APC's standard practice to issue factory reconditioned replacement units in exchange for original units. The warranty on reconditioned units delivered for in-warranty service is 90 days or the remainder of the original warranty period, whichever is longer. Repaired units carry the balance of their original warranty period. Benefits of Standard In-Warranty Service For problems found within the first 30 days of operation, APC will replace defective units with new units and pay all associated shipping charges. For defects found after 30 days, standard service offers quick turnaround time by sending a replacement unit or, if requested, repairing the customer's original UPS system. For companies with assigned asset tags and set depreciation schedules, getting the original back rather than a replacement may be important. Next Day Drop-Off Option Who Should use Next Day Drop-Off Option Customers choosing the next day drop-off option will receive a visit from an APC authorized representative who will deliver a replacement unit to the customer's site while picking up the defective unit. Customers who call before 12:00 p.m. Singapore time will receive their replacement unit the next business day. Customers calling after 12:00 p.m. Singapore time will receive their unit in two business days. How Does the Next Day Drop-Off Option Work This option requires that the customer be present on site at the agreed upon time to accept delivery of the replacement unit. If the customer is not present upon arrival of the APC authorized representative, it will be the customer's responsibility to reschedule the delivery/pickup by calling Technical Support. Deliveries not rescheduled within 7 days will be considered completed and will receive no further action from APC. Customers declaring the need for the return of the original unit will receive the original unit back within 7 days of pickup. Benefits of the Next Day Drop-Off Option For problems found within the first 30 days of operation, APC will replace defective units with new units and pay all associated shipping charges. For defects found after 30 days, next day drop-off service offers quick turnaround time by sending a replacement unit or, if requested, repairing of the customer's original UPS system. For companies with assigned asset tags and set depreciation schedules, getting the original back rather than a replacement may be important. Important Note: At the time of delivery, the faulty unit must be electrically de-installed and ready to be removed from the customer site. Customers who have not electrically de-installed the faulty unit prior to the arrival of the APC representative will be required to reschedule the replacement delivery and will be charged a no trouble found service fee. APC is not responsible for the electrical de-installation of faulty units, but may perform this service on a Time and Materials basis at the customer's request. For further information on our Time and Materials policy, please refer to APC's Terms and Conditions document.
