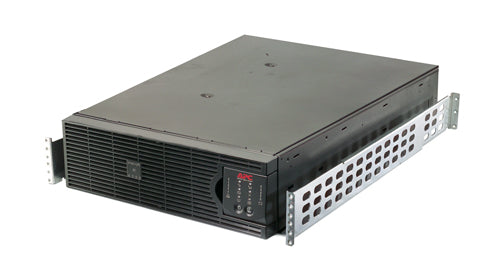

APC Smart-UPS RT 3000VA RM 230V

$2,829.58 $3,081.21

SKU: SURTD3000RMXLI/1000529 + 1000274/RBC44
MODEL: Smart-UPS RT 3000VA RM 230V
Product Description: High density, double-conversion on-line power protection with scalable runtimeIncludes : CD with software , Smart UPS signalling RS-232 cable , User ManualSmart-UPS On-Line Features & Benefits Product Details: AdaptabilityFlash upgradeable firmwareInstall maintenance releases of firmware remotely using FTP.Plug-and-Play external batteriesEnsures clean, uninterrupted power to the loads when adding...
Quantity
Add to Wishlist

Product Description:

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Smart UPS signalling RS-232 cable , User Manual

Smart-UPS On-Line Features & Benefits

Product Details:

Adaptability

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.


Availability

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime

Allows additional run time to be quickly added as needed.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.


Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

SmartSlot

Customize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.


Protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable

Provides temporary battery power when the utility power is out.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery

.Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.


Marketing Features

Save time with easy and convenient remote accessibility

.Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.






Product Specifications:

Output power capacity 2.1 KWatts / 3.0 kVA

Max Configurable Power (Watts) 2.1 KWatts / 3.0 kVA

Nominal Output Voltage 230V

Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 3%

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1

Other Output Voltages 220, 240

Load Crest Factor 3 : 1

Topology Double Conversion Online

Waveform type Sine wave

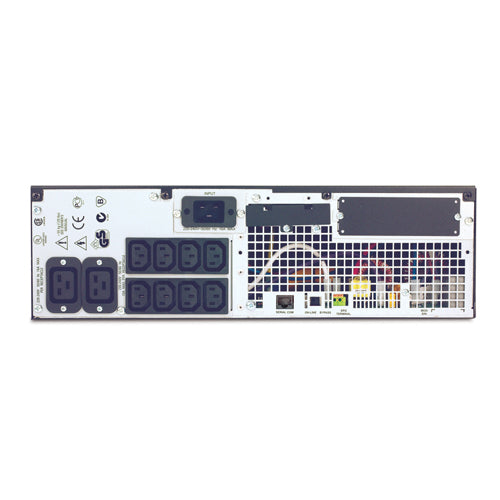

Output Connections
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Bypass Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage 230V

Input frequency 50/60 Hz +/- 5 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length 2.44meters

Input voltage range for main operations 160 - 280V

Input voltage adjustable range for mains operation 100 - 280 (half load)V

Number of Power Cords 1

Other Input Voltages 220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules 2

Typical recharge time 2.5hour(s)

Expected Battery Life (years) 3 - 5

RBC Quantity 1

Extendable Run Time 1

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph


Communications & Management

Interface Port(s) RJ-45 Serial , Smart-Slot

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm Alarm

when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO) Yes

Available SmartSlot™ Interface Quantity 1


Surge Protection and Filtering

Surge energy rating 555JJoules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 130mm , 13.0cm

Maximum Width 432mm , 43.2cm

Maximum Depth 660mm , 66.0cm

Rack Height 3U

Net Weight 54.55kg

Shipping weight 63.64kg

Shipping Height 347mm , 34.7cm

Shipping Width 603mm , 60.3cm

Shipping Depth 980mm , 98.0cm

Color Black

Master Carton Units 1.0

Units per Pallet 6.0

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95% non-condensing %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95% non-condensing %

Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 55.0dBA

Online thermal dissipation 609.0BTU/hr

Protection Class IP 20

Conformance

Approvals

BSMI, C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, JEON, UL 1778, VCCI, VDE

Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
