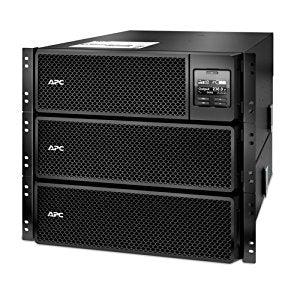

Product Description:

10/100 BaseT Connection

Connect the device to a network using a 10 or 100 BaseT connection

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

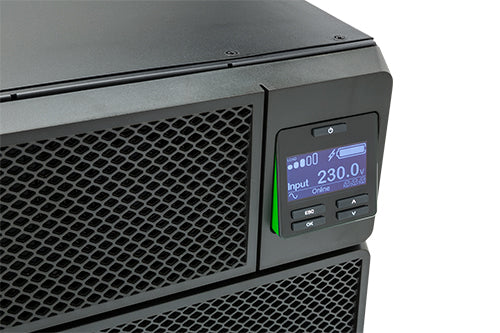

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Product Details:

Smart-UPS On-LineFeatures & Benefits

Availability

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Scalable runtime

Allows additional run time to be quickly added as needed.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

LED status indicators

Quickly understand unit and power status with visual indicators.

SmartSlot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

Adaptability

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Serviceability

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms

Provides notification of changing utility power and UPS power conditions

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.Cold-start capableProvides temporary battery power when the utility power is out.

Marketing Features

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote accessibility.

Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Product Specifications:

Output

Output power capacity 10.0 KWatts / 10.0 kVA

Max Configurable Power (Watts) 10.0 KWatts / 10.0 kVA

Nominal Output Voltage 230V

Output Voltage Distortion Less than 2%

Output Frequency (sync to mains) 50/60Hz +/- 3 Hz

Other Output Voltages 220, 240

Load Crest Factor 3 : 1

Topology Double Conversion Online

Waveform type Sine wave

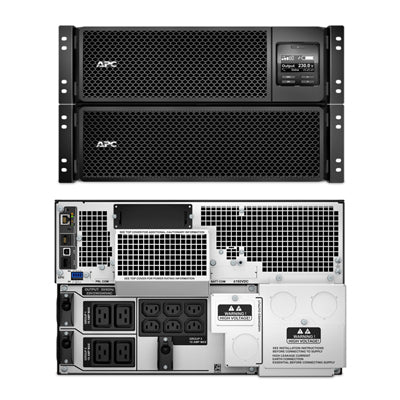

Output Connections
(3) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage 230V , 400V 3PH

Input frequency 40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations 160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load), 173 - 476 (half load)V

Other Input Voltages

220, 240, 380, 415

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 1.5hour(s)

Replacement Battery APCRBC140

Expected Battery Life (years) 3 - 5

RBC Quantity 2

Extendable Run Time 1

Extended Run Options

APC-Smart-UPS-SRT-10000VA-RM-230V

Runtime

View Runtime Graph View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO) Yes

Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

Surge energy rating 480Joules

Physical

Maximum Height 263mm , 26.3cm

Maximum Width 432mm , 43.2cm

Maximum Depth 715mm , 71.5cm

Rack Height 6U

Net Weight 111.82kg

Shipping weight 130.0kg

Shipping Height 461mm , 46.1cm

Shipping Width 600mm , 60.0cm

Shipping Depth 1000mm , 100.0cm

Color Black

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95% non-condensing %

Operating Elevation 0-3000meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95% non-condensing %

Storage Elevation 0-15000meters

Audible noise at 1 meter from surface of unit 55.0dBA

Online thermal dissipation 1947.0BTU/hr

Protection Class IP 20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V1.0 (EU), IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

REACH REACH: Contains No SVHCs

Battery Directive Compliant
