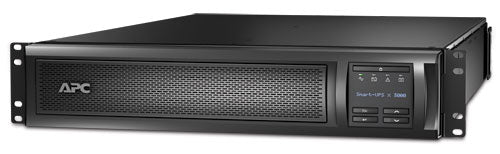

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card (Ap9631)

$2,985.00 $3,250.48

SKU: SMX3000RMHV2UNC/1678195/Contact PM
MODEL: Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card (Ap9631)
Product Description: Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable...
Quantity
Add to Wishlist

Product Description:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable

Product Details:

Smart-UPS Features & Benefits

Serviceability

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Resettable circuit breakers

Enables a quick recovery from overload events.

Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Adaptability

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Manageability

LED status indicators

Quickly understand unit and power status with visual indicators.

Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Marketing Features

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.











Product Specifications:

Output

Output power capacity 2.7 KWatts / 3.0 kVA

Max Configurable Power (Watts) 2.7 KWatts / 3.0 kVA

Nominal Output Voltage 230V

Output Voltage Distortion Less than 5%

Output Frequency (sync to mains) 50/60Hz +/- 3 Hz

Other Output Voltages 208, 220, 240

Topology Line Interactive

Waveform type Sine wave

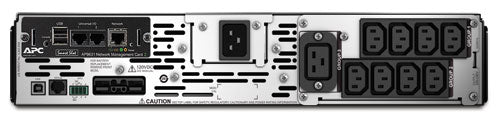

Output Connections

(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Transfer Time 2-4 ms

Transfer Time 6ms typical : 10ms maximum

Input

Nominal Input Voltage 208V , 230V

Input frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length 8ft ( 2.44meters )

Input voltage range for main operations 140 - 280V

Number of Power Cords 1

Other Input Voltages 220, 240

Transfer Time 2-4 ms

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 3hour(s)

Replacement Battery   APCRBC117

Expected Battery Life (years) 3 - 5

RBC Quantity 1

Extendable Run Time 1

Extended Run Options

APC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V-with-Network-Card

Runtime

View Runtime Graph View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s) SmartSlot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) Yes

Surge Protection and Filtering

Surge energy rating 645Joules

Data Line Protection --

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 3.36inches ( 85mm , 8.5cm )

Maximum Width 17.0inches ( 432mm , 43.2cm )

Maximum Depth 26.26inches ( 667mm , 66.7cm )

Rack Height 2U

Net Weight 82.1lbs. ( 37.32kg )

Shipping weight 99.79lbs. ( 45.36kg )

Shipping Height 9.58inches ( 243mm , 24.3cm )

Shipping Width 23.48inches ( 596mm , 59.6cm )

Shipping Depth 34.23inches ( 869mm , 86.9cm )

Color Black

Pallet Dimensions 39.369999999999997inches

# of Layers per Pallet 4.0

# of Units per Layer per Pallet 2.0

Pallet Weight 855.12lbs.

Units per Pallet 8.0

Environmental

Operating Environment 32 - 104 °F ( 0 - 40 °C )

Operating Relative Humidity 0 - 95 %

Operating Elevation 0-10000ft ( 0-3000meters )

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95 %

Storage Elevation 0-50000ft ( 0-15000meters )

Audible noise at 1 meter from surface of unit 55.0dBA

Online thermal dissipation 184.0BTU/hr

Conformance

Approvals

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 year for battery, optional extended warranties available, optional on-site warranties available

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP Available in Documentation tab

EOLI

Available in Documentation tab Battery Directive Compliant

Battery Notes

ts_Battery_Notes
