Attractive price, outstanding performance and exceptional scanning reliability.
Affordable departmental scanner with a compact footprint and true, 600-dpi resolution
Captures up to 50 pages per minute / 100 images per minute (landscape, 200dpi) in color, monochrome, and grayscale.
Versatile A3 paper path handles documents as large as 279.4 mm x 431.8 mm (11" x 17") and as small as 52 mm x 74 mm (2” x 3”)
Ultrasonic double-feed detection ensures reliable scanning. Even with mixed batches of documents
Scanner Central Admin Suite
Comes with 2D Barcode for PaperStream
Comes with PaperStream IP (TWAIN/ISIS) and PaperStream Capture

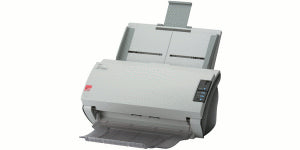

The fi-5530C2 Color Departmental Scanner offers an incredible feature set in a compact package. The fi-5530C2 is an A3 scanner that handles a vigorous duty cycle of up to 5,000 documents per day.
What’s more, it scans at speeds up to 50 ppm / 100 ipm (landscape, 200 dpi), features dual color CCDs with true, 600-dpi resolution for capturing subtle details, and uses ultrasonic double-feed detection for reliable, automatic scanning. For greater ease-of-use, the fi-5530C2 includes a 100-page automatic document feeder (ADF) that handles documents ranging from 52 mm by 74 mm (2” by 3”) to 279.4 mm by 431.8 mm (11" by 17"). For simplified connectivity the fi-5530C2 features a dual-interface, including ports for Ultra SCSI and high-speed USB 2.0 connections.
PaperStream IP (32/64 Bit)
The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.
PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make batch separation easy, improving document organization.
Whether the infrastructure is fixed or expanding, managing technology efficiently inside the organization is key to reducing total cost of ownership and the Fujitsu scanner provides system administrators with advanced software tools to centrally manage the scanner more productively and cost effectively.
Agent, console and server remote scanner management
Real-time Fujitsu scanner inventory
Status and alert monitoring
Centralized driver update deployment
|Image Sensor Type||Dual Color Charge Coupled Device (CCD) image sensor|
|Output Resolution(1)||Monochrome||50 dpi to 600 dpi(2)
(adjustable by 1 dpi increments, 1200 dpi)
|Optical Resolution||600 dpi|
|Halftone patterns||7 dither, 1 error diffusion, and 1 downloadable|
|Grayscale||10 bit/1024 level (internal), 8 bit/256 level (output)|
|Monochrome & Color @ 200dpi (Portrait)||35 ppm||70 ipm|
|Monochrome & Color @ 200dpi (Landscape)||50 ppm||100 ipm|
|Document Feeding Mode||Automatic document feeder (ADF)|
|ADF Capacity||100 Sheets (A4: 80 g/㎡or 20 lb.)
50 sheets (A3: 80 g/㎡or 20 lb) (Active loadable ADF)
|Document Size||ADF Minimum||A8 Portrait (52 mm x 74 mm or 2 in. x 3 in.)|
|ADF Maximum||A3 Portrait (297 mm x 420 mm or 11.7 in. x 16.5 in.),
Double letter (279.4 mm x 431.8 mm or 11 in. x 17 in.)
|Interface||Ultra SCSI / High-speed USB 2.0|
|Scanner Memory||64 MB|
|Power Requirements (auto-switching)||100-240 VAC, 50 / 60 Hz|
|Power Consumption||57 W or less, Standby: 12 W or less, Sleep: 7.5 W or less|
|Operating Environment||Temperature||5 °C – 35 °C (42 °F – 95 °F)|
|Relative Humidity||20 % – 80 % (non-condensing)|
|Dimensions (HxWxD)||399 mm x 225 mm x 193 mm (15.7 in. x 8.9 in. x 7.6 in.)(4)|
|Weight||8.5 kg (18.7 lb)|
|Daily Duty cycle||4,000 pages|
|Features||Ultrasonic double feed detection, selectable B&W background, long document scanning(4), hard card scanning, automatic de-skew, automatic page size detection|
|PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error Recovery, PaperStream Capture, ScanSnap Manager for fi Series, 2D Barcode for PaperStream, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent|
|OS Support||Windows® 10 (32-bit/64-bit), Windows® 8/8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)|
- Intel® Core™ i5 desktop processor 2.5 GHz or higher, 4 GB RAM is recommended
- Scanning limitations brought about by scanning mode, document size and available memory may occur when scanning at high resolutions (600 dpi or higher)
- Scanning speeds may vary due to the system environment used.
- External stacker attachments excluded.
