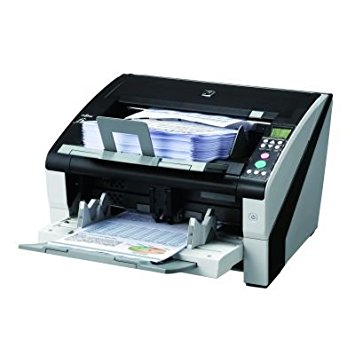

Fujitsu fi-6800
Product Description
With improving the entire scanning process as its main objective, the fi-6800 Production Scanner builds upon the qualities that have made Fujitsu the industry-leading vendor in the Mid-Volume Production market. The fi-6800 incorporates many additional features and functions that will improve your document scanning efficiency. From pure scanning speed, to ease of use to its full suite of software productivity tools, the fi-6800 is the ideal solution for a wide range of Production Scanning applications. Features include:
The ideal blend of features and performance to maximize scanning productivity
Fast, 130 ppm (simplex) / 260 ipm (duplex) scanning in monochrome or color (letter, landscape @ 300 dpi)
Space-saving design with quiet operation and many environmental friendly qualities
Easy to use operator panel with multi-language support
Triple Ultrasonic Double Feed Detection with Intelligent MultiFeed Function and retain image feature
500-page automatic document feeder with adjustable height hopper
Scanner Central Admin Suite
Product Specifications
|
Model |
fi-6800 |
||
|
Functional Specifications |
|||
|
Image Sensor Type |
Color CCD (Charge-coupled device) x 2 (front x 1, back x 1) |
||
|
Output Resolution |
Color (24-bit), Grayscale (8-bit), Monochrome (1-bit)(5)) |
||
|
Halftone Patterns |
4 Dither Patterns and error diffusion |
||
|
Grayscale |
10-bit/1,024 level (internal), 8-bit/256 level (output) |
||
|
Color |
24-bit single pass color |
||
|
Scanning speeds |
|||
|
Output |
Simplex |
Duplex |
|
|
Portrait(1) |
100 ppm(2) Color/Greyscale |
200 ipm(2) Color/Greyscale |
|
|
Landscape(1) |
130 ppm(2) |
260 ipm(2) |
|
|
Scanning Mode |
Simplex and Duplex |
||
|
Document Feeding Mode |
Automatic document feeder (ADF) |
||
|
ADF Capacity(4) |
500 Sheets (A4: 80 g/㎡ or 20 lb.) |
||
|
Daily Duty Cycle |
60,000 Pages |
||
|
Document Size |
ADF Minimum |
A8 Portrait (52 mm x 74 mm or 2 in. x 3 in.) |
|
|
ADF Maximum |
A3 Portrait (297 mm x 420 mm or 11.7 in. x 16.5 in.), Double letter (279.4 mm x 431.8 mm or 11 in. x 17 in.) |
||
|
Ultra Wide SCSI, USB2.0/USB1.1(Selectable) |
|||
|
JPEG Compression |
Hardware real time JPEG compression available |
||
|
Physical Specifications |
|||
|
Power Requirements (auto-switching) |
100 to 240 VAC, 50/60 Hz |
||
|
Power Consumption |
200 W or less |
||
|
Operating Environment |
Temperature |
15 ° C to 35 ° C (59 ° F to 95 ° F) |
|
|
Relative Humidity |
20 % to 80 % (non-condensing) |
||
|
Dimensions (HxWxD)(8) |
460 mm x 430 mm x 310 mm (18.1 in. x 16.9 in. x 12.2 in.) |
||
|
Weight |
32 kg (70.5 lb) |
||
|
Inbox Contents |
AC cable, USB cable, Setup DVD-ROM, 2D Barcode for PaperStream Setup CD-ROM |
||
|
Bundled Software |
PaperStream IP (TWAIN/ISIS) Driver, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, PaperStream Capture, Scanner Central Admin Agent |
||
|
Environment Compatibility(9) |
ENERGY STAR®, RoHS, EPEAT Silver |
||
|
Options |
Post Imprinter (Front-side) and Post Imprinter (Back-side) |
||
|
OS Support |
Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), |
||
|
Features |
Ultrasonic Intelligent MultiFeed Function Double Feed Detection (3x) and Long Document Scanning(10) |
||
- Actual scanning speeds are affected by data transmission and software processing times.
- JPEG compressed figures
- Intel® Core™ i5 desktop processor 2.5 GHz or higher, 4 GB RAM is recommended
- Maximum capacity varies, depending upon paper thickness
- Maximum output resolutions may vary, depending upon the size of the area being scanned and whether the scanner is scanning in simplex or duplex
- You cannot use both SCSI and USB 2.0 interfaces at the same time
- You cannot connect multiple computers to the scanner using each type of interface cables at the same time
- Excluding the ADF hopper
- PFU Limited, a Fujitsu company, has determined that this product meets RoHS requirements (2005/95/EC)
- Capable of scanning documents that exceed A4 sheets in length. However, the scanning of documents that exceed 863 mm (34 in.) in length will be limited to using 300 dpi or less
- Software interpolated
- Scanning limitations brought about by scanning mode, document size and available memory may occur when scanning at high resolutions (600 dpi or higher)
