Trendnet Gigabit Power over Ethernet (PoE) Injector

$39.62 $49.30

SKU: TPE-113GI
MODEL: Gigabit Power over Ethernet (PoE) Injector
Product Description The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE...
Quantity
Add to Wishlist

Product Description

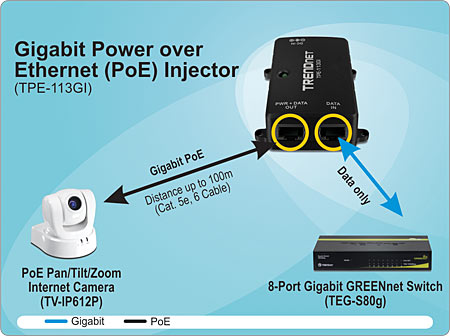

The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.

Product Details

Full Duplex Gigabit speeds supported

Use non-PoE switches to network PoE devices at distances of up to 100 meters (328 feet)

Save on installation and equipment costs

Create an integrated PoE and non-PoE Gigabit network

No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.

IEEE 802.3ab Gigabit and 802.3af PoE compliant

Gigabit Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

1 x 10/100/1000 Mbps Auto-MDIX Data In port
1 x 10/100/1000 Mbps PoE Auto-MDIX Data Out port

Power port

Power LED indicator

Supplies power up to 15.4 Watts

Easily install a PoE device where a power outlet is not available

Reduce installation and network equipment costs

Safeguards network devices with short circuit protection

Plug and Play in remote location

Light weight and compact size

Wall mounting points

Product Specifications

Standard

IEEE 802.3 10Base-TIEEE 802.3u 100Base-TXIEEE 802.3ab Gigabit EthernetIEEE 802.3af Power over Ethernet

Network Media

10 Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters100 Mbps: UTP/STP Cat. 5, and 5e up to 100 MetersGigabit: UTP/STP Cat 5e and 6 up to 100 meters

Ports

1 x 10/100/1000 Mbps DATA-IN (Data only)1 x 10/100/1000 Mbps PWR+DATA OUT (Data + Power)

Data LinesPair

1: Pin 1, 2Pair 2: Pin 3, 6

Power Input:

100~240V, 50~60Hz, 0.4A max.Output: 48V DC, 0.4A 18W max.

Power Consumption

15.4 Watts (max.)

Dimensions

(W x D x H)70 x 45 x 25mm (2.75 x 1.8 x 1 in.)

Weight

45 g (1.6 oz.)

Temperature Operation:

0°C~50°C (32°F~ 122°F)

Storage:

-20°C~60°C (-4°F~140 °F)

HumidityMax.

90% (non-condensing)

Certifications

CE, FCC


3 years Limited warranty
