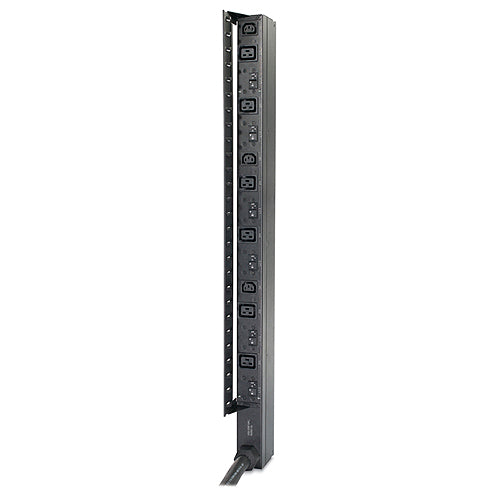

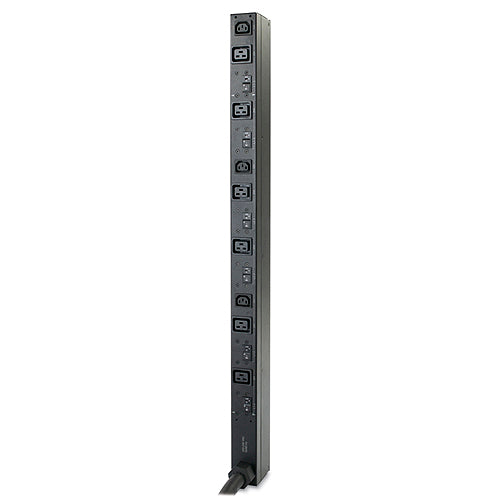

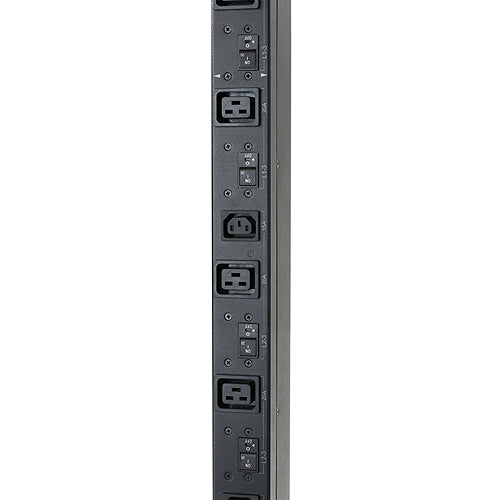

APC Rack PDU Basic Zero U 22kW 230V (6) C19 & (3) C13 High Temp

$920.48 $1,002.00

SKU: AP7555A/1542543
MODEL: Rack PDU Basic Zero U 22kW 230V (6) C19 & (3) C13 High Temp
Product Description: Resettable circuit breakers Enables a quick recovery from overload events. Toolless Rack Mounting CapabilitiesServer cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.Vertical Mounting CapabilitiesEasily mounts vertically in racks or...
Quantity
Add to Wishlist

Product Description:

Resettable circuit breakers

Enables a quick recovery from overload events.

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Product Details:

Basic Rack PDU Features & Benefits

Agility

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Total Cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Marketing Features

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Product Specifications:

Output

Nominal Output Voltage 230V

Overload Protection Yes

Maximum Total Current Draw 40

Output Connections
(6) IEC 320 C19 (Battery Backup)
(3) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage 230V 3PH

Input frequency 47 - 63 Hz

Input Connections CS8365

Cord Length 6ft ( 1.83meters )

Number of Power Cords 1

Maximum Input Current 50A

Maximum Line Current 40A

Regulatory Derated Input Current (North America)   40A

Physical

Maximum Height 36.5inches ( 927mm , 92.7CM )

Maximum Width 2.16inches ( 55mm , 5.5CM )

Maximum Depth 3.46inches ( 88mm , 8.8CM )

Net Weight 15.96lbs. ( 7.26KG )

Shipping weight 19.26lbs. ( 8.76KG )

Shipping Height 42.0inches ( 1067mm , 106.7CM )

Shipping Width 11.76inches ( 298mm , 29.8CM )

Shipping Depth 3.26inches ( 83mm , 8.3CM )

Color Black

Environmental

Operating Temperature 23 - 140 °F ( -5 - 60 °C )

Operating Relative Humidity 5 - 95 %

Operating Elevation 0-10000ft ( 0-3000meters )

Storage Temperature -25 - 65 °C

Storage Relative Humidity 5 - 95 %

Storage Elevation 0-50000ft ( 0-15000meters )

Conformance

Approvals

cUL Listed, CSA C22.2 No. 60950-1-03, METI Denan, UL 60950-1, UL Listed

Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
