Trendnet 1000Base-LX Industrial SFP Single-Mode LC Module (10km)

$61.72 $87.33

SKU: TI-MGBS10
MODEL: 1000Base-LX Industrial SFP Single-Mode LC Module (10km)
Product Description The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber...
Quantity
Add to Wishlist

Product Description

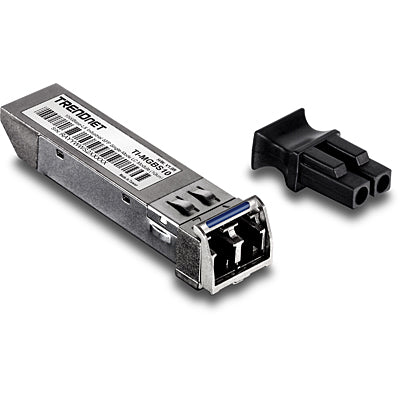

The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).

Product Details

Fiber Applications


Long distance fiber networking for industrial, manufacturing, and corporate / education campus applications.

Fiber Mode / Distance


Single-Mode transceiver spans distances up to 10km (6.2 miles) and supports up to 1.25Gbps.

Compatibility

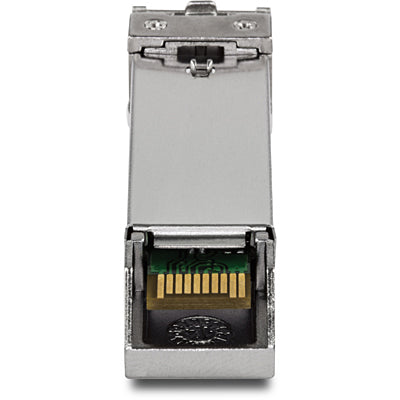

Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.


Hot-Pluggable SFP


Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot

Fiber Wavelength


Compatible with single-mode 1310nm transmissions

Fiber Distance


Supports networking for distances up to 10km (6.2 miles)

Fiber Interface

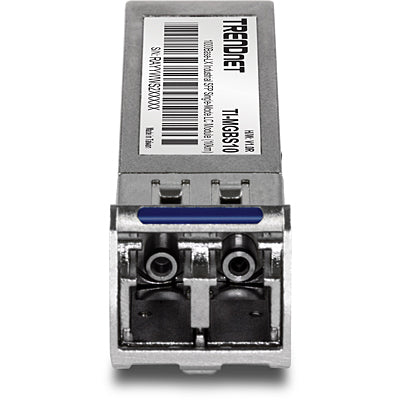

LC-type duplex connector

Operating Temperature


Rated for an operating temperature range of -40°– 85 °C (-40° – 185 °F)

Specifications

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3z


Device Interface
SFP MSA Compliant
LC duplex connector


Data Transfer Rate
1.25Gbps


Wavelength
1310nm


Optical Output Power
-9 ~ -3 dBm


Distance
10km (6.2 mi.)


Special Features
Hot pluggable
Metal enclosure


Sensitivity
-23 dBm
Power
Consumption: 1W


Operating Temperature
-40 – 85 °C (-40 – 185 °F)


Operating Humidity
Max. 95% non-condensing
Dimensions
57 x 13 x 8.5 mm (2.2 x 0.5 x 0.3 in.)


Certifications
CE
FCC

3 Year Warranty
