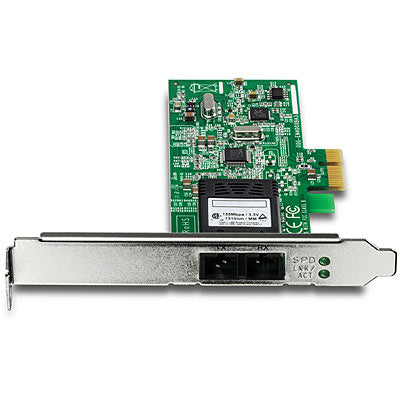

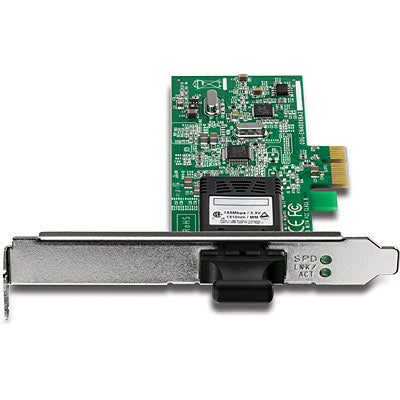

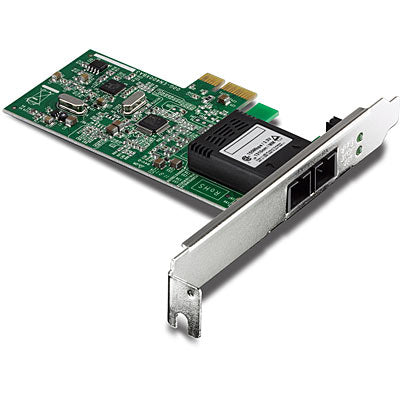

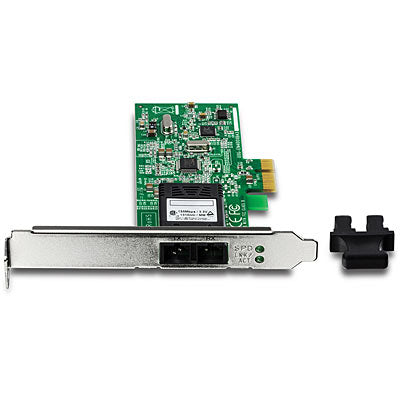

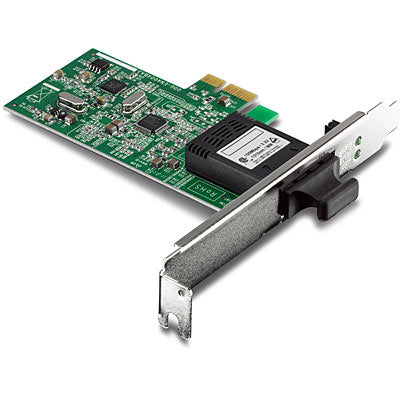

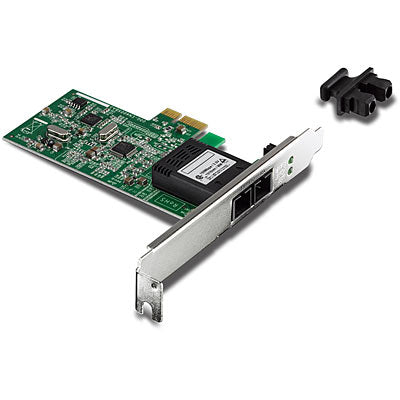

Trendnet 100Base-FX Multi-Mode SC-Type PCI Express Adapter

$133.81 $190.57

SKU: TE 100-ECFX
MODEL: 100Base SC Fiber PCIe Adapter
Product Description The 100Base SC Fiber PCIe Adapter, model TE100-ECFX, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers (1.2 miles). Full-Duplex technology generates data rates of up to 200 Mbps. Product Details Supports Wake-on-LAN,...
Quantity
Add to Wishlist

Product Description

The 100Base SC Fiber PCIe Adapter, model TE100-ECFX, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers (1.2 miles). Full-Duplex technology generates data rates of up to 200 Mbps.

Product Details

Supports Wake-on-LAN, remote wake-up, 802.1p priority encoding, and 802.1Q VLAN tagging. Compatible with Microsoft Windows 10, Windows 8, Windows 7, Windows Server 2008 and Linux operating systems.




1 x 100Base-FX SC-type fiber port
PCI Express 1.1 compliant
IEEE 802.1Q VLAN tagging
IEEE 802.1p Layer 2 priority tagging
IEEE 802.3x full-duplex Flow Control
Wake-on-LAN and remote Wake-up support
Plug and Play



Specifications

Standards
IEEE 802.3u 100Base-FX
IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p

Network Media
Multi-mode fiber optic cable 50/125 µm up to 550 m or 62.5/125 µm up to 2 km

Interface
PCI Express, SC-type slot

Power Consumption
Max 2 watts

Diagnostic LED
Speed, Link/Activity

Supported OS
Windows 10 (32/64-bit), Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit),
Windows Server 2003, 2008
Linux Kernel 2.4.x/2.6.x

Data Rate
100 Mbps (half-duplex)
200 Mbps (full-duplex)

Dimension
117 x 107 x 57 mm (4.6 x 4.2 x 2.2 in)

Temperature
Operating: 0°C ~ 50°C (32°F ~ 122°F)
Storage: -10°C ~ 70°C (14°F ~ 158°F)

Humidity
Up to 95% (non-condensing)

Certifications
CE, FCC

3 Year Warranty
