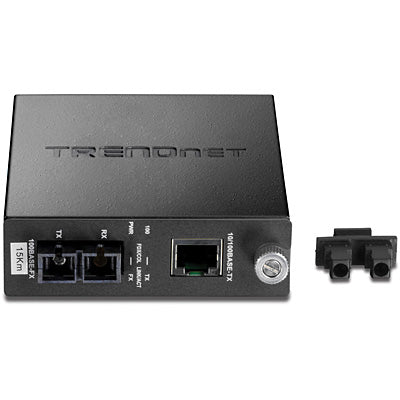

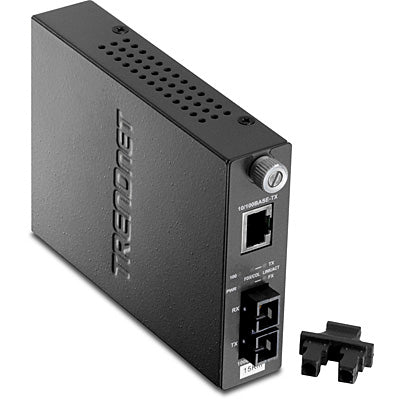

Trendnet 100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM)
Product Description
The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Product Details
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- 1 x 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port
- 1 x 100Mbps fiber port with single-mode SC-type connector
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Dip-switch for full and half duplex selection on fiber port
- Wall mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converter
Product Specifications
HARDWARE
Standard
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
Standard Ethernet up to 1518bytes
Network Media
100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
Protocol
CSMA/CD
Ports
1 x 10/100Base-TX
1 x 100Base-FX (SC-type)
Dip Switch
TX: duplex mode, auto negotiation or manual, speed, LLCF (enable/disable)
FX: duplex mode, LLR (enable/disable), LLCF
Transfer Rate
100Mbps (half-duplex)
200Mbps (full-duplex)
Diagnostic LEDs
Per Unit: power
Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
7.5V DC, 1A external power adapter
Power Consumption
1.8 Watts (max)
Dimensions
120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
354g (12.5oz)
Temperature
Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
Max. 90% (non-condensing)
Certification
FCC,CE
Media
SMF
Wavelength
1310nm
Pout (dBm)
-20 ~ 0
Sensitivity
-32 ~ 0
Power
12
Distance
15km
