Trendnet 4-Port Stackable Video Splitter

$95.44 $135.15

SKU: TK-V401S
MODEL: 4-Port Stackable Video Splitter
Product Description The compact 4-Port Stackable Video Splitter (model TK-V401S) clones or repeats your computer’s viewing field to up to four monitors (this product does not extend a single viewing field over multiple monitors). Support for 1920 x 1440 pixel resolution ensures crystal clear image quality.Cascade up to three TK-V201S...
Quantity
Add to Wishlist

Product Description

The compact 4-Port Stackable Video Splitter (model TK-V401S) clones or repeats your computer’s viewing field to up to four monitors (this product does not extend a single viewing field over multiple monitors). Support for 1920 x 1440 pixel resolution ensures crystal clear image quality.
Cascade up to three TK-V201S or TK-V401S units to add additional display monitors. Included is a 1.85 m (6 ft.) VGA cable to connect to a computer. LED indicators on the front of the unit convey connection status. No software installation required, simply Plug-and-Play to clone dazzling displays.

Product Details

Support VGA, SVGA and Multisync display
Simultaneous monitor display
4-port video splitter in metal enclosure
Daisy-chain support up to 3 levels for scalable monitor port capacity
Enhance video signal with a maximum cable distance up to 65 meters (210 feet)
Simultaneous monitor display

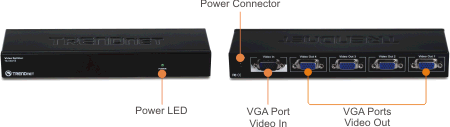

Power LED indicator for power status monitoring
Plug-and-play, no extra software needed


Specifications

HARDWARE

Video Input
1 x 15-pin VGA HDB Male

Video Output
4 x 15-pin VGA HDB Female

VGA Resolution
1920 x 1440

Signal Type
XGA/SVGA/Multisync

Cable Distance
65m (210ft) max

Daisy-chain (Cascade)
Up to 3 Levels

Cables (included)
1 x 15-ping VGA cable (Male to Female), 1.2m/4ft.

Power
9V DC, 0.5A

LEDs
Power

Dimension (L x W x H)
205 x 65 x 26mm (8 x 2.5 x 1in.)

Temperature
Operation: 0°C~40°C (32°F~104°F)
Storage: -20°C~60°C (-4°F~140°F)

Humidity
Max. 90% (non-condensing)

Certification
CE, FCC
2 Year Warranty
