Trendnet 6-port Hardened Industrial Gigabit Switch

$286.14 $409.01

SKU: TI-G62
MODEL: 6-port hardened Industrial Gigabit Switch
Product Description TRENDnet’s TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot...
Quantity
Add to Wishlist

Product Description

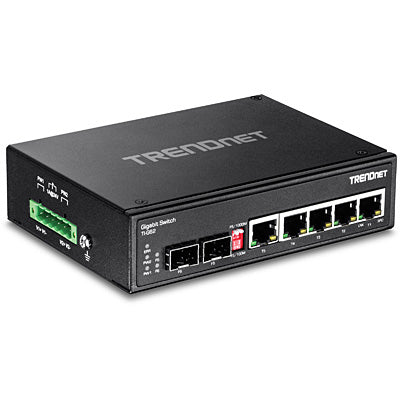

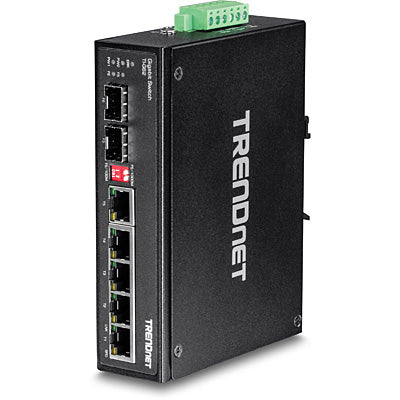

TRENDnet’s TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.

Product Details

Network Ports


5 x Gigabit Ethernet ports, 1 x shared SFP slot (shared with Ethernet port 5 and features a supply 100/1000 Mbps DIP switch) and 1 x dedicated SFP slot


DIN-Rail/Wall Mounts

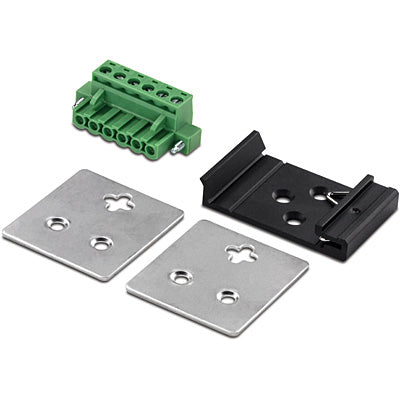

IP30 rated metal enclosure with included DIN-rail and wall mount hardware


Switching Capacity


12 Gbps switching capacity


Redundant Power


Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)


Alarm Output


Alarm output triggered by power failure of primary and/or redundant power


Jumbo Frame


Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance


Extreme Temperatures


Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)


Electro Magnetic Compliance


Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards


Certifications


Rated for information technology (ITE) equipment (EN55022/24); industrial, scientific, and medical (ISM) Equipment (EN55011)


Shock and Vibration Resistant


Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)


Grounding Point


Grounding point protects equipment from external electrical surges.

Specifications

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x

Device Interface
5 x Gigabit ports
1 x Shared SFP slot (port F5)
1 x Gigabit SFP slot (port F6)
6-pin removable terminal block
LED indicators
DIP switch
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)

Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 12 Gbps
MAC Address Table: 2 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)

Special Features
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection

Power
Input: 12 - 56 V DC
Compatible power supply: TI-M6024 (sold separately)
Consumption: Max. 3.84 Watts

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm

DIP Switch
1: set port 5 to copper port or SFP slot
2: set port 5 to 100 Mbps or 1000 Mbps on SFP slot

Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Short circuit mode when two power sources are connected
Open circuit mode when only one power source is connected

MTBF
510,304 hours

Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection

Operating Temperature
- 40 to 75 °C (-40 to 167 °F)

Operating Humidity
Max. 95 % non-condensing

Dimensions143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)

Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

3 Year Limited Warranty
