Trendnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 – 56 V

$486.15 $695.91

SKU: TI-PG62B
MODEL: 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 – 56 V
Product Description TRENDnet’s TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 – 56 VDC power inputs and a power failure...
Quantity
Add to Wishlist

Product Description

TRENDnet’s TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 – 56 VDC power inputs and a power failure alarm relay.

Product Details

PoE Power


A 60 – 120 W PoE+ power budget supplies up to four Power over Ethernet devices.

Fault Tolerance


Features dual redundant 12 – 56 VDC power inputs with output alarm relay.

Industrial Hardened Design


Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 – 75° C (-40 – 167° F).

Network Ports


4 x Gigabit PoE+ ports and 2 x dedicated SFP slots

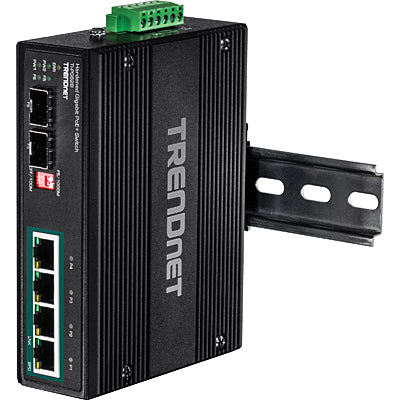

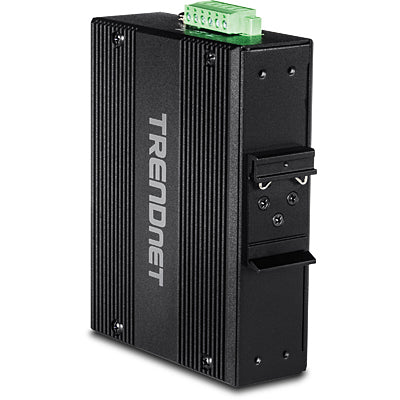

DIN-Rail / Wall Mounts

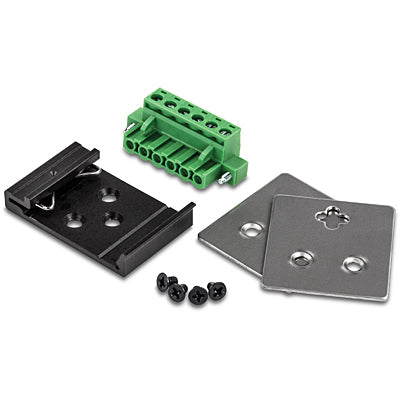

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity


12 Gbps switching capacity

Redundant Power


Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)

Alarm Relay


Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures


Industrial switch is rated for an operating temperature range of -40 – 75 °C (-40 – 167 °F)

Shock and Vibration Resistant


Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point


Grounding point protects equipment from external electrical surges



Specifications

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

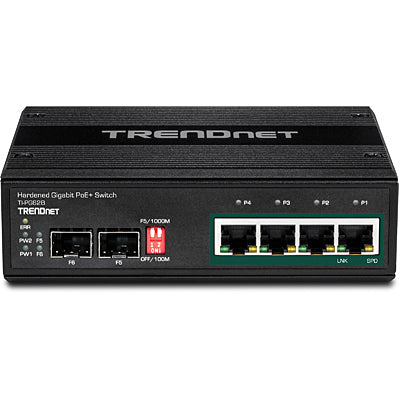

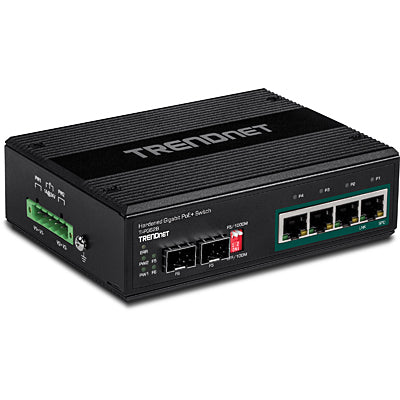

Device Interface
4 x Gigabit PoE+ ports
2 x 100/1000 Mbps SFP slots
6-pin removable terminal block
LED indicators
DIP switch
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)

Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 12 Gbps
MAC Address Table: 1 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)

Special Features
Hardened components rated for extreme temperatures
Supports 12/24/48 power inputs
Voltage booster boost up to 55V DC
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 6KV support

DC Power
Input: 12/24/48 V DC
Output: up to 55 V DC
Compatible power supply: TI-S12048 (sold separately)
Consumption: Max. 5.76 Watts (no PoE)

PoE
PoE budget: 120 W @ 24 VDC / 48 VDC / 56 VDC
PoE budget: 60 W @ 12 VDC

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm

DIP Switch
1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
2: OFF (SFP 1000 M, default), ON (SFP 100 M)

Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when one power source is connected
Short circuit mode when two power sources are connected

MTBF
510,304 hours

Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
6 KV ESD protection

Operating Temperature
- 40 to 75 °C (-40 to 167 °F)

Operating Humidity
Max. 95 % non-condensing

Dimensions
143 x 105 x 45 mm (5.6 x 4.1 x 1.8 in.)

Certifications
CE
FCC
Shock (EN 60068-2-27)
Freefall (EN 60068-2-32)
Vibration (EN 60068-2-6)

3 Years Limited Warranty
