Trendnet 8-channel HD PoE NVR + 2TB Hard Drive
Product Description
TRENDnet’s standalone 8-channel HD PoE+ NVR, model TV-NVR208D2, offers a comprehensive rack mountable camera management solution. This NVR includes a preinstalled 2 TB hard drive and connects up to eight cameras*. Install up to 12 terabytes of storage (additional hard drives sold separately) to record four weeks of continuous video from eight HD cameras**. The TV-NVR208D2 features advanced video playback and free iOS® / Android™ apps available.
Product Details

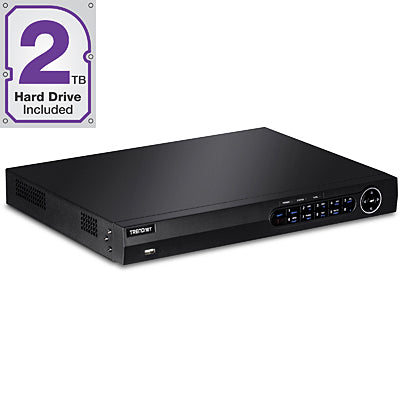

Standalone HD NVR
This standalone 1080p HD NVR includes a preinstalled 2 TB hard drive and supports a total storage capacity of up to 12 TB and powers up to eight PoE network cameras-HDDs, cameras, and display sold separately.
Plug-and-Play Installation
The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.
Hardware

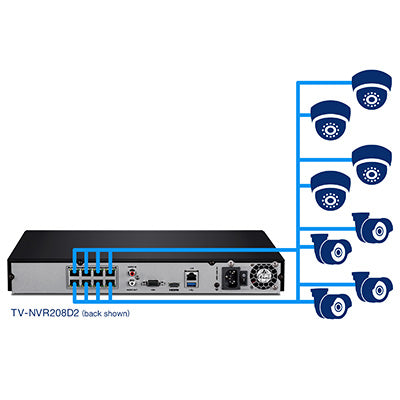

Plug and play TRENDnet PoE network cameras* to the eight PoE+ ports with a total power budget of 120 W
Two 3.5” SATA II bays support up to 12 TB of total storage (2 TB HDD Included, 6 TB max. per bay)
Gigabit Ethernet network uplink port
HDMI and VGA interfaces
Audio in and out ports
One USB port for the included mouse and one for configuration backup
Supports mouse and keyboard (keyboard sold separately)
Rack mount hardware included
Management
See live video on a mobile device with the free iOS® and Android™ apps
Access the NVR over the internet
Auto-recognizes TRENDnet cameras* and works with most PoE network cameras
Multiple camera viewing options with auto-scan function
For each camera, manage on-screen display (OSD), image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss
Max. resolution for all cameras concurrently: Full HD 1080p video at 30 fps in H.264 compression
Max. for a single camera: 6 MP resolution in H.264 compression
One week of continuous recording per camera with preinstalled 2 TB HDD and 8 x 1080p cameras at 30 fps (medium VBR)
Four weeks of continuous recording per camera with 12 TB of storage (HDDs sold separately) and 8 x 1080p cameras at 30 fps (medium VBR)
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full
Advanced archived video playback with a quick reference timeline and calendar
Quickly export and archive recorded video
Support for dyn.com and NO-IP.com
IPv6 support
Supports ONVIF compliant network camera
Product Specifications
Video Output
HDMI / VGA
Resolution:
Audio
Line-in with RCA connector (2.0 Vp-p, 1 kΩ)
Line-out with RCA connector
Recording
8-channel simultaneous recording up to 1080p 30 fps
2 SATA interface for HDD or SSD up to 6 TB storage each
Playback
Playback resolution: 5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at

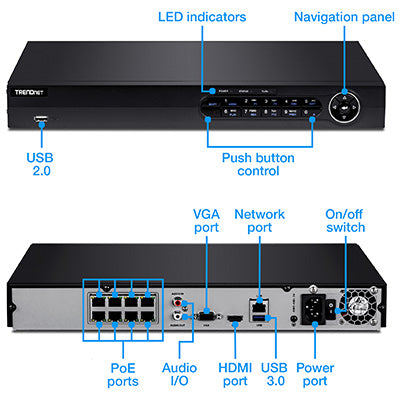

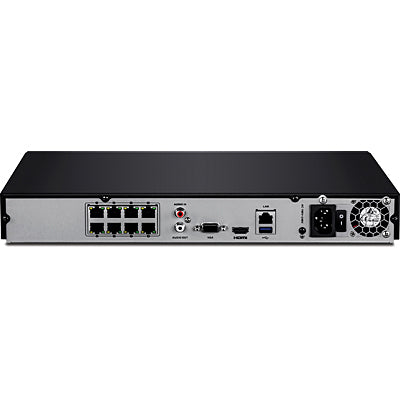

Device Interface
1 x Gigabit network port
8 x 10/100 PoE+ camera network ports
1 x 2 TB HDD
1 x USB 2.0, 1 x USB 3.0
HDMI port
VGA port
Analog audio in / out port
Power port
LED indicators (Power, Storage, and Network)
PoE Ports
PoE 802.3at (max. 30 W per port)
Total PoE power budget: 120 W
Plug and play with TRENDnet PoE cameras*
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2
HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature
-10 ~ 55 °C (14 ~ 131 °F)
Operating Humidity
Max. 90% non-condensing
Certifications
CE
FCC
UL 60950
Dimensions
380 x 310 x 45 mm (15 x 11 x 1.8 in.)
Weight
3.3 kg (7.3 lb.)
Power
Input: 100 – 240 V AC, 50/60 Hz
Power consumption:
Management Interface
Live view: Simultaneous 3x3, 1+7, 1+5, 2x2 views or auto switch single view
Scheduled recording: continuous and motion detection with optional holiday exceptions.
Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss.
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import / export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions, and PoE power overload.
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
TRENDnet IP View App
Free iOS® and Android™ app
View your NVR video on your mobile device
Take snapshots
Zoom
2 years warranty
