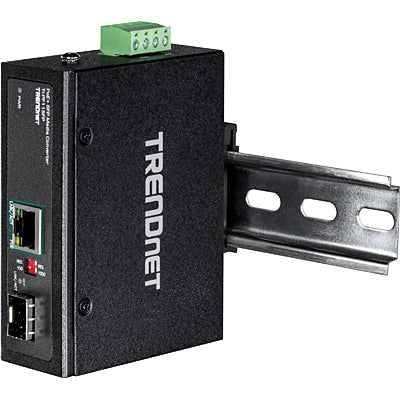

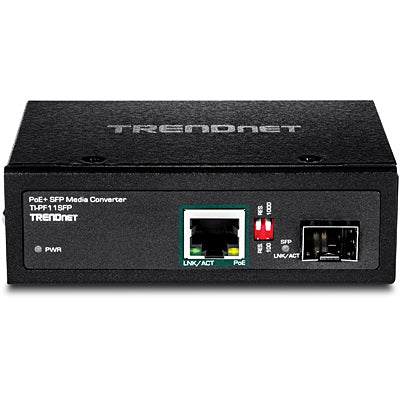

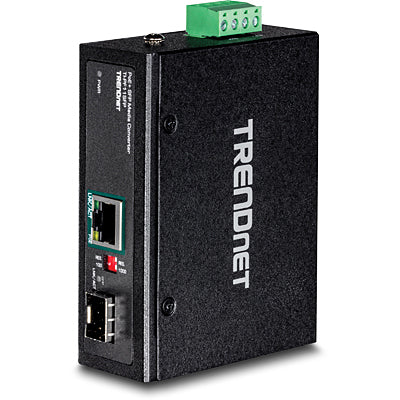

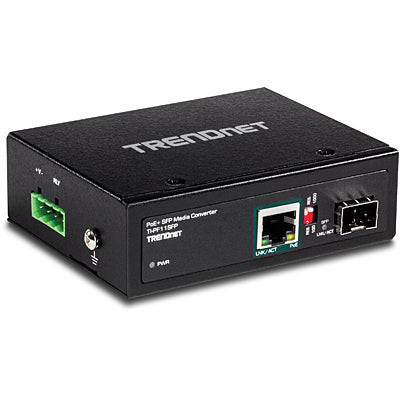

Trendnet Hardened Industrial SFP to Gigabit PoE+ Media Converter

$250.09 $357.93

SKU: TI_PF11SFP
MODEL: Hardened Industrial SFP to Gigabit PoE+ Media Converter
Product Description   TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power...
Quantity
Add to Wishlist

Product Description



TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.

Product Details

Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.


PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.


Extreme Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

Hardened IP30 rated SFP to Gigabit PoE+ converter
SFP port accommodates Multi or Single Mode fiber
Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
Provides up to 30W for PoE and PoE+ compliant devices

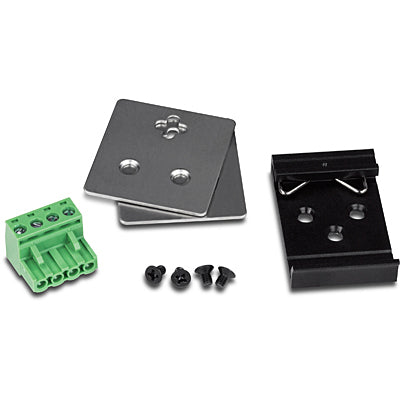

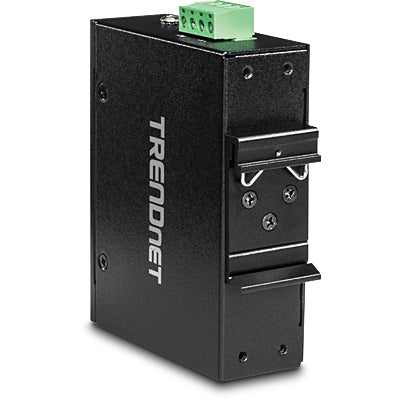

Includes DIN-rail and wall mounts
Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
Dual redundant power inputs with overload current protection

Product Specifications


StandardsIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.3afIEEE 802.3at

Device Interface1 x Gigabit PoE+ port1 x 100/1000Mbps SFP slot4-pin removable terminal blockLED indicatorsDIP SwitchDIN-Rail mountWall mountGrounding point

Data Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)Gigabit: 2000Mbps (full duplex)

PerformanceData RAM Buffer: 1MBJumbo Frame: 9KBSpecial FeaturesHardened components rated for extreme temperaturesAuto-NegotiationAuto store and forward architectureAutomatic address learning and address aging

PowerInput: 48 - 56 V DCCompatible power supply: TI-S12048 (sold separately)Consumption: 2 watts (without PoE) with 48VDC inputPoEMode A (V+ 1, 2; V- 3,6)Budget: 30 wattsConsumption: Max. 36 watts with 56VDC input

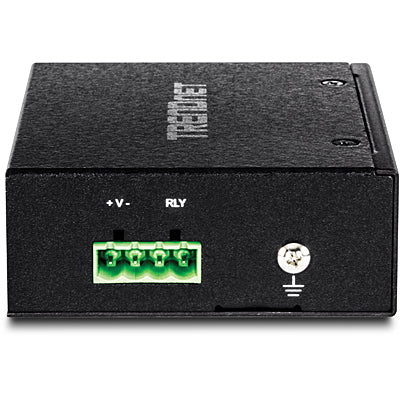

Terminal BlockPower and relay inputs, 4 pinWire range: 0.34mm^2 to 2.5mm^2Solid wire (AWG): 12-24/14-22Stranded wire (AWG): 12-24/14-22Torque: 5 lb. – In / 0.5Nm / 0.56 NmWire strip length: 7-8mm

DIP Switch1: reserved, no function2: set SFP speed to 100Mbps or 1000Mbps

MTBF500,000 hoursHousingIP30 aluminum caseDIN-rail mountWall mountGrounding point

Operating Temperature- 40 to 75 °C (-40 to 167 °F)

Operating HumidityMax. 95 % non-condensing

Dimensions104 x 81 x 32 mm (4 x 3.2 x 1.2 in.)

Weight154 g (5.4 oz.)

CertificationsCEFCCShock (IEC 60068-2-27)Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)EN60950-1 (LVD)

3 years Limited warranty
