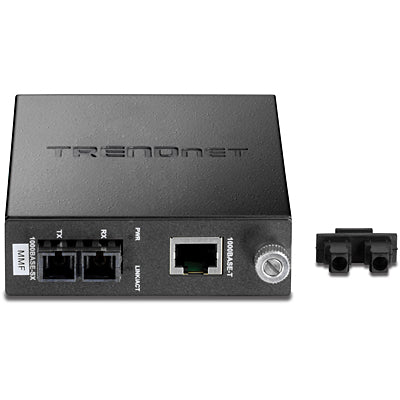

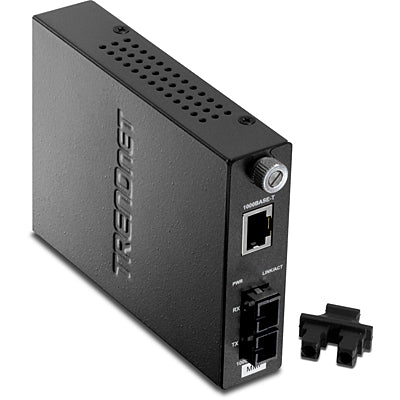

Trendnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter

$103.58 $147.10

SKU: TFC-1000MSC
MODEL: Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter
Product Description The TFC-1000MSC Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m (1,800 ft.). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type)...
Quantity
Add to Wishlist

Product Description

The TFC-1000MSC Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter that supports SNMP and spans distances up to 550m (1,800 ft.). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-SX (SC-Type) port.

Product Details

Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-SX multi-mode SC type fiber port
Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for Fiber port
Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters



Specifications

Standard
IEEE802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX

Supported Frame Size
Standard Ethernet up to 10Kbytes

Network Media
1000Base-TX: Cat. 6 EIA/TIA-568 100-ohm UPT/STP, up to 100m
1000Base-SX: Multi-mode fiber optic cable 50/125 µm, up to 550m

Protocol
CSMA/CD

Ports
1 x 1000Base-T
1 x 1000Base-SX (SC-type)

Dip Switch
Fiber (forced/auto-negotation), LLR (enable/disable)

Transfer Rate
2000Mbps (full-duplex)
Diagnostic LED
Per unit: Power
Per Port: link/activity

Power Adapter
7.5V DC, 1A external power adapter

Power Consumption
2.7 Watts (max)

Dimensions
120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)

Temperature
Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -25° ~ 70° C (-13° ~ 158° F)

Humidity
Max. 90% (non-condensing)

Certification
FCC,CE

Media
MMF

Wavelength
850nm

Optical Output Power (dBm)
Min.: -9.5
Max.: 4

Optical Input Power (dBm)
Min. (Sensitivity): -12.5
Max: -18

Power Budget
7.5

Distance
550m
