Trendnet Intelligent 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Converter (20 km)
Product Description

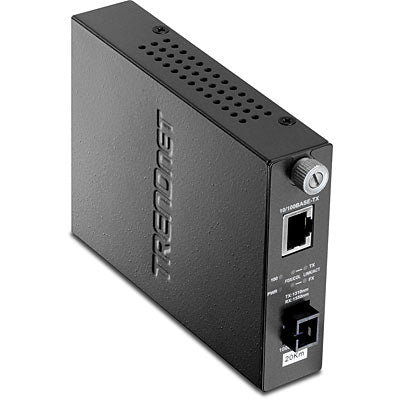

The TFC-110S20D5i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 20 km (12.4 miles). This module must be used with the TFC-110S20D3i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.
Product Details
- Must use with TFC-110S20D3i
- Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards
- 1 x 10/100Base-TX RJ-45 port
- 1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port
- Port level SNMP management support
- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps),
- Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)
- Link Loss Carry Forward (LLCF) support
- Link Loss Return (LLR) support
- Status LED indicators for Power and Link / Activity
- Removable metal enclosure
- Wall mountable
- Functions as a standalone converter or with the TFC-1600 fiber chassis
Product Specifications
HARDWARE
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
Network Media
100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100 m
100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 20 km
Protocol
CSMA/CD
Ports
1 x 10/100Base-TX
1 x 100Base-FX (simplex SC-type)
Dip Switch
Fiber (full/half duplex)
UTP (auto negotiation/manual)
Speed (10 Mbps/100 Mbps)
Copper (full/half duplex)
LLR (enable/disable)
LLCF (enable/disable)
Transfer Rate
100 Mbps (half duplex)/200 Mbps (full duplex)
Diagnostic LEDs
Per Unit: power
Per Port (TX): Link/Activity, FDX/HDX, Link Fail, Speed
Per Port (FX): Link/Activity, FDX/HDX, Link Fail
Power Adapter
Input: 100~240 V 50/60Hz, 0.2 A
Output: 5 V DC, 1 A
Power Consumption
2 watts (max)
Dimensions
120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.)
Weight
354 g (12.5 oz)
Temperature
Operating: 0° ~ 40°C (32° ~ 104°F)
Storage: -25° ~ 70°C (-13 ° ~ 158°F)
Humidity
Max 90% (non-condensing)
Certifications
CE, FCC
Media
SMF
Wavelength
TX: 1550 nm
RX: 1310 nm
Optical Output Power (dBm)
Min: -14
Max: -8
Optical Input Power (dBm)
Min (Sensitivity): -31
Max: 0
Power Budget
17
Distance
20 m
3 years warranty
